Quick Detail

Main standard:SIEMENS 808D CNC system; 3-jaw self-center chuck; 4-station electric tool turret; Electronic handwheel (MPG); Dead center; Oil gun; Work lamp; Polit lamp; Cooling system; Protection guard; Heat exchanger; Leveling blocks & bolts; Toolbox & tools; Operator manuals
Optional:GSK CNC system; FANUC CNC system; Hydraulic 3-jaw chuck; Other tool turret; Air conditioner; Tool setting device; Chain-type chip conveyor

Description

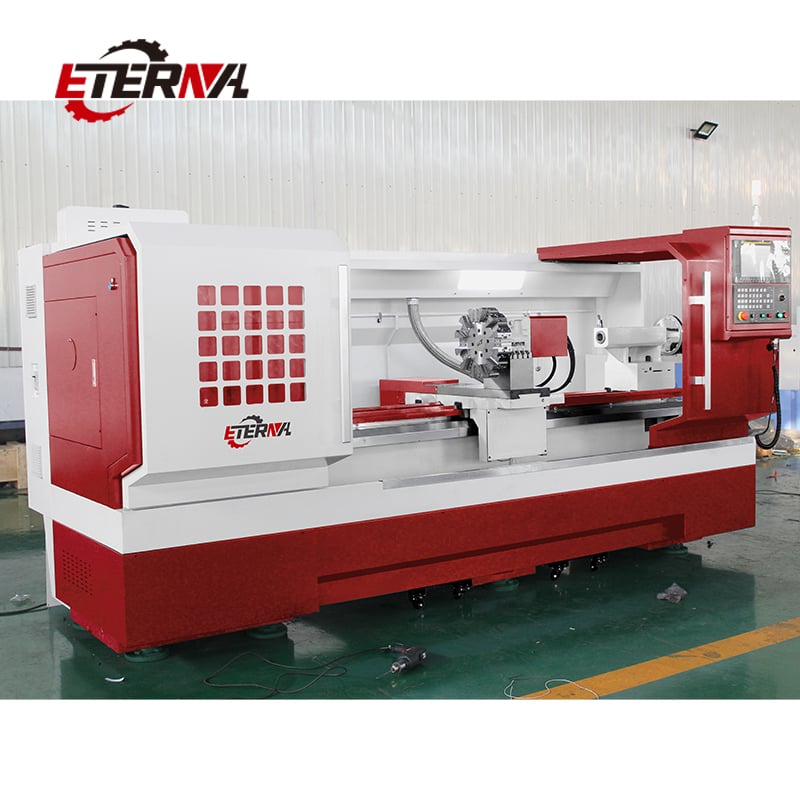

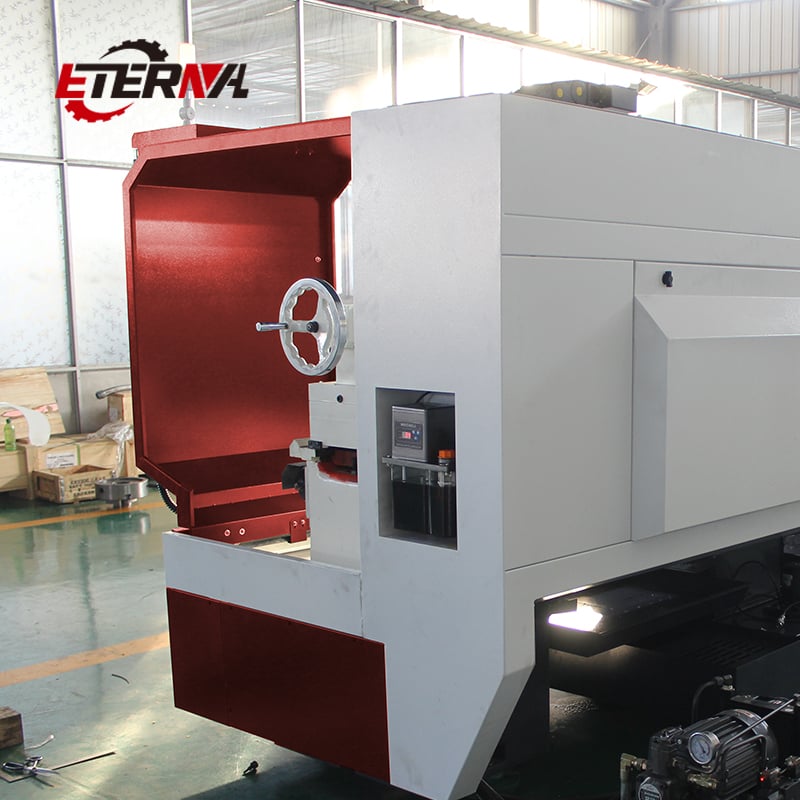

Flat-bed CNC lathes are characterized by their wide range of applications. They are suitable for flexible one-off production and also for economical small series production of medium-sized workpieces.
The standard automatic 4-station tool turret and the 3-jaw self-center chuck make the machine flexible and productive.
In combination with a new generation of spindle and axis drives, the Siemens SINUMERIK 808D offers easy-to-use CNC solutions with an excellent price-performance ratio.
Manually transverse the X- and Z-axes via 2 electronic hand wheels.
Induction-hardened, ground guideways.
Polished grey cast-iron machine bed.
Wide spindle speeds meet various kinds machining requirement, max. spindle speed up to be 1600rpm.
Longitudinal and transverse movements via high-quality preloaded ball screws and servo drives.
Smart central lubrication system for low-maintenance operation.
USB port for easy data transfers.

Applications

Flat-bed CNC lathes are characterized by their wide range of applications. They are suitable for flexible one-off production and also for economical small series production of medium-sized workpieces.

Specifications

Standard Accessories

※ SIEMENS 808D CNC system
※ 3-jaw self-center chuck
※ 4-station electric tool turret
※ Electronic handwheel (MPG)
※ Dead center
※ Oil gun
※ Work lamp
※ Polit lamp
※ Cooling system
※ Protection guard
※ Heat exchanger
※ Leveling blocks & bolts
※ Toolbox & tools
※ Operator manuals

Optional Accessories

※ GSK CNC system
※ FANUC CNC system
※ Hydraulic 3-jaw chuck
※ Other tool turret
※ Air conditioner
※ Tool setting device
※ Chain-type chip conveyor

Competitive Advantage

Equipped with SIEMENS 808D CNC system for reliable, user-friendly control; optional FANUC or GSK available for flexible cost/performance choices.
3-jaw self-center chuck and 4-station electric tool turret enable quick workpiece clamping and tool changes, improving batch processing efficiency.
Complete standard package (cooling, heat exchanger, dead center, oil gun, protection guard) ensures stable operation and good thermal management.
Optional hydraulic chuck, chip conveyor, and tool setter allow easy upgrade for automation and precision control.
