Quick Detail:

Main standard: FANUC CNC system; Hydraulic chuck; 8/12 station tool turret; Hydraulic tool post; Electronic handwheel; Lubrication system; Cooling system; Work lamp; Pilot lamp; Protection guard; Heat exchanger; Leveling blocks & bolts; Tools & tool-box; Operation manuals
Optional: GSK; SIEMENS CNC system; Air conditioner; Tool setter; Chain type chip conveyor

Description:

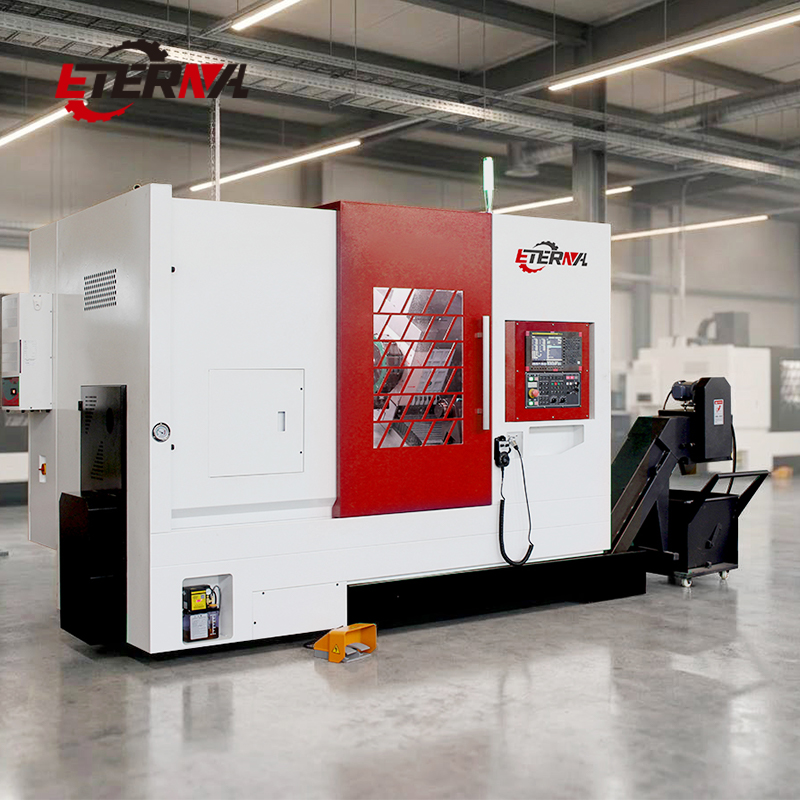

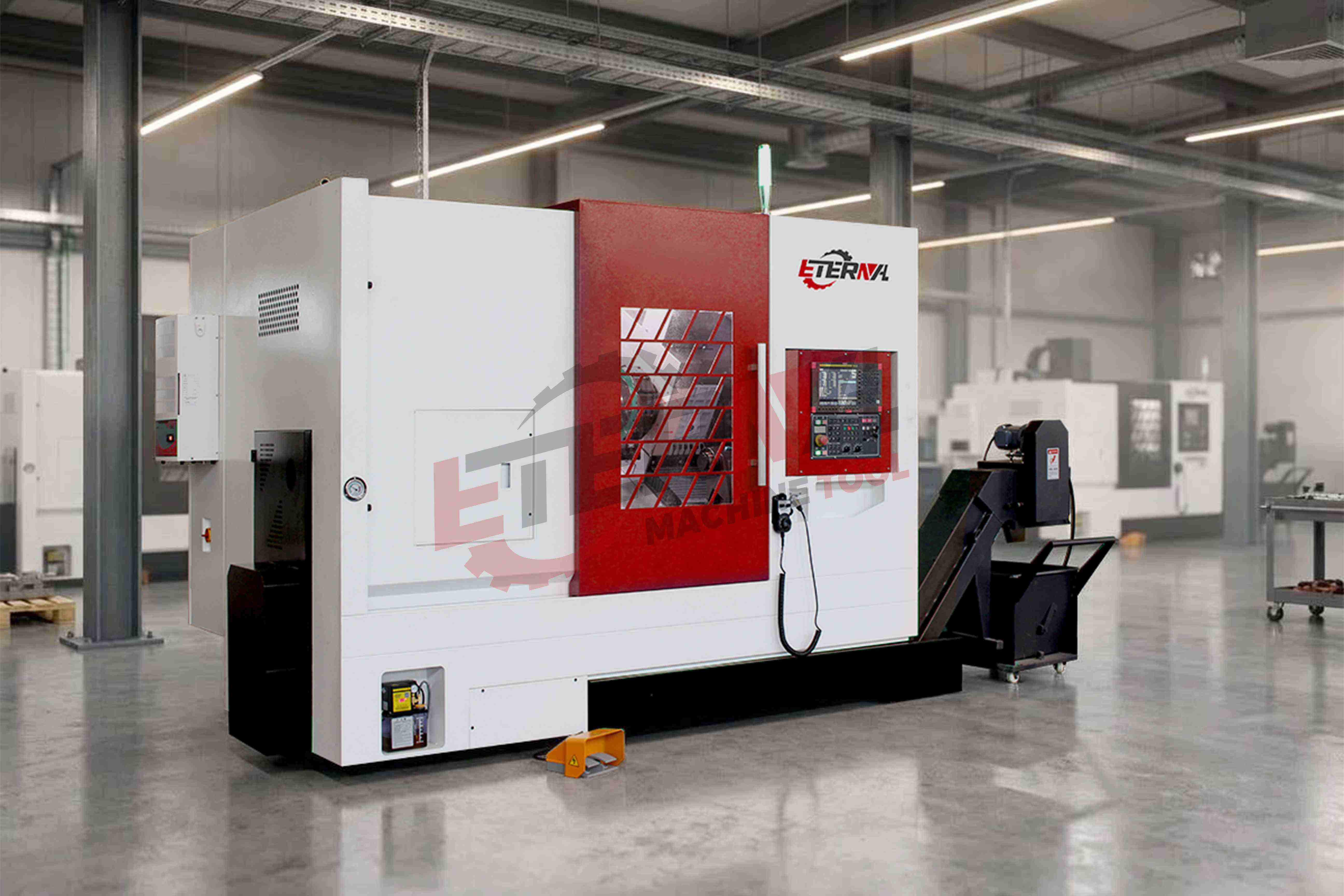

This type slant bed CNC lathe is semi-closed loop CNC machine, which is suitable to turn various complicated shaft, sleeve and disk-like workpieces, such as turning of internal and external cylindrical, conical and other circumgyration surface as well as various metric, inch, modular and diametric pitch threads;
They can also be used for oil grooves and keyways broaching, end-facing, grooving and chamfering, etc;
The unique construction developed using FEA techniques to provide maximum stiffness under the heaviest cutting conditions;
It is especially suitable for the machining of high precision work-pieces, and also widely used to machining parts in batches in the fields of automobile, motorcycle, engineer industry, aero-craft, home-appliance, bearing, hardware, etc.
One-piece casting iron bed with 30 (CK- 50 is 45°) slant bed. Spindle can realize stepless speed change by servo main motor drive belt transmitting torque to spindle. Spindle box without gears can reduce noise and vibration.

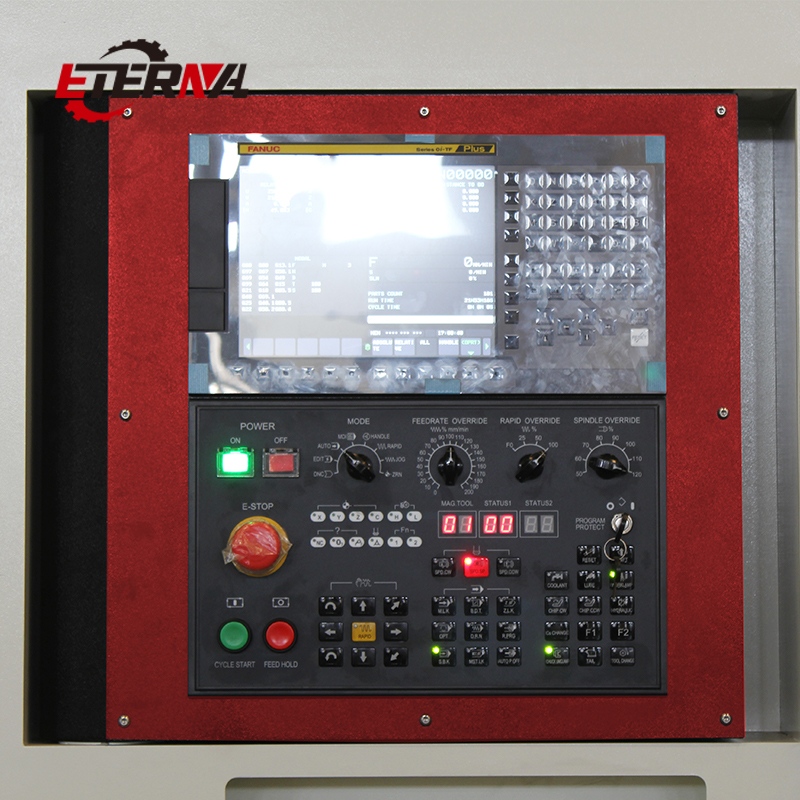

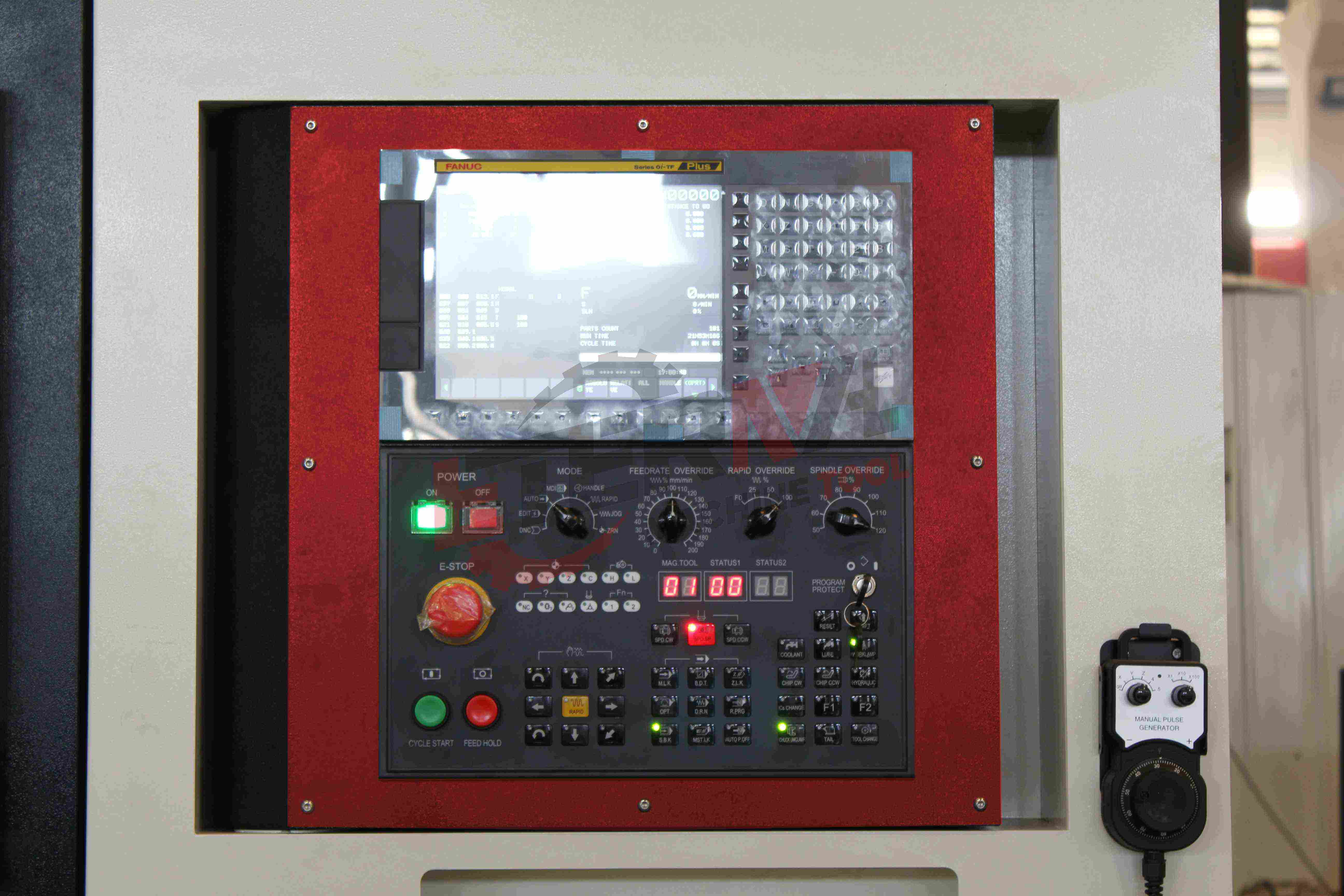

Equipped standard with SIEMENS/FANUC CNC system, servo feed motors are installed on X/Z-axis for providing power.
Precision linear guideways on X/Z-axis for high rapid feed speeds and high positioning accuracy
Direct drive and torsion-free, large preloaded ball screws with dual-preloaded spindle nuts ensure long-term accuracy.

Applications

This type slant bed CNC lathe is semi-closed loop CNC machine, which is suitable to turn various complicated shaft, sleeve and disk-like workpieces, such as turning of internal and external cylindrical, conical and other circumgyration surface as well as various metric, inch, modular and diametric pitch threads;
They can also be used for oil grooves and keyways broaching, end-facing, grooving and chamfering, etc;

Specifications

Standard Accessories

※ FANUC CNC system

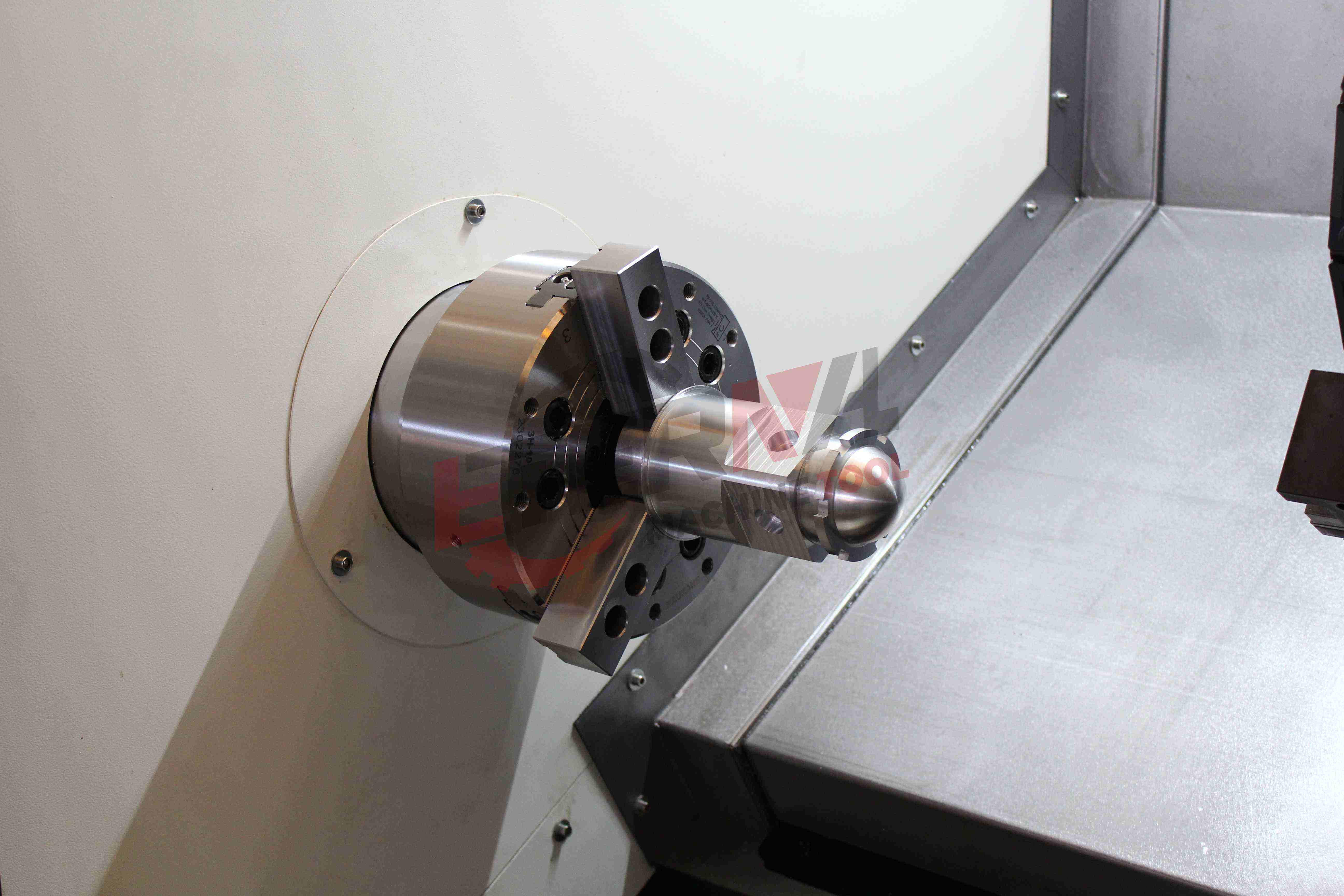

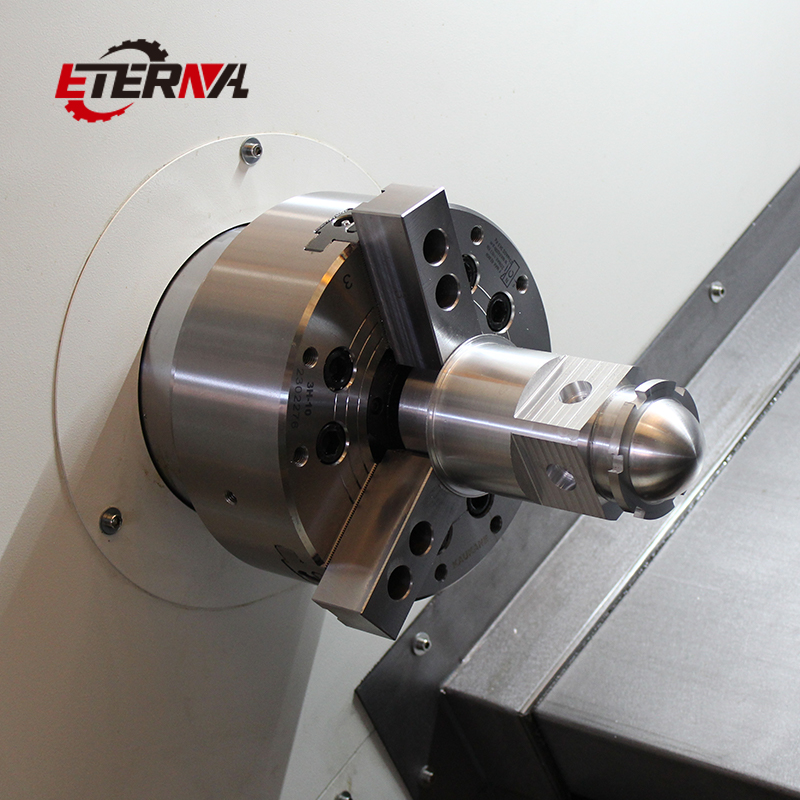

※ Hydraulic chuck

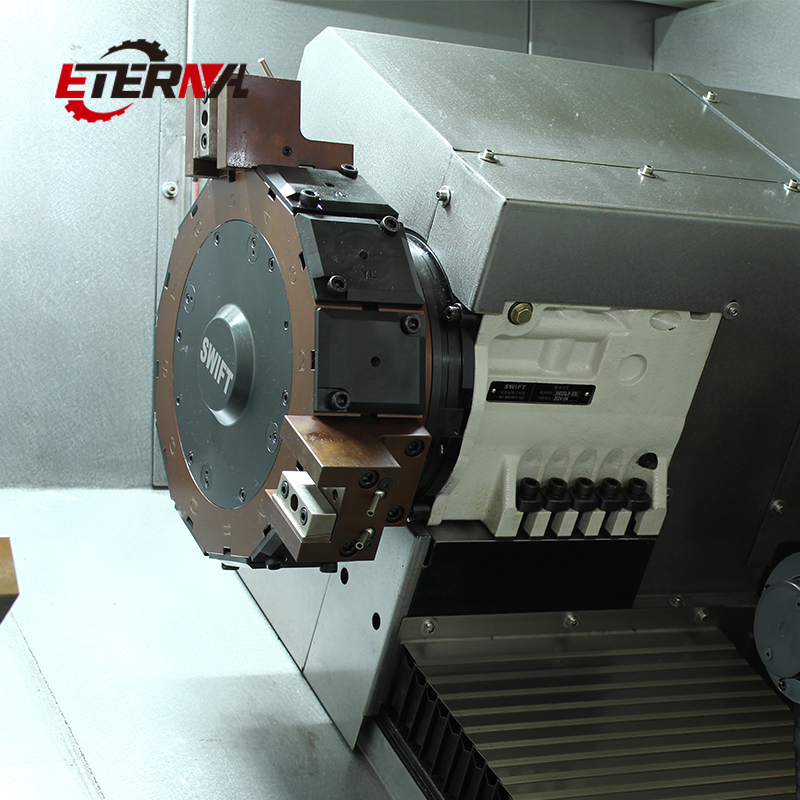

※ 8/12 station tool turret
※ Hydraulic tool post
※ Electronic handwheel
※ Lubrication system
※ Cooling system
※ Work lamp
※ Pilot lamp
※ Protection guard
※ Heat exchanger
※ Leveling blocks & bolts
※ Tools & tool-box
※ Operation manuals

Optional Accessories

※ GSK
※ SIEMENS CNC system
※ Air conditioner
※ Tool setter
※ Chain type chip conveyor

Competitive Advantage

Slant-bed design ensures excellent chip evacuation and rigidity; multi-brand CNC and turret options offer flexible customization; built-in heat exchanger maintains thermal stability for high-precision cycles.
