| Place of Origin: | China |
| Model Number: | HBM-130D |
| Certification: | CE/EAC |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | Fumigated wooden case/Iron Pallet |
| Delivery Time: | 2-6 months |
Main standard: FANUC 0i-TF CNC system; 5° indexing CNC worktable; Protection covers for guideways; Manual pulse (MPG); Work lamp; Pilot lamp; USB I/O interface; Hydraulic system; Auto. Cooling system; Auto.lubricating system; Air conditioner for electric cabinet; General tools ; Operation manual (English edition)
Optional:Arm type 24tools ATC; Chain type 40tools ATC; 1° indexing CNC worktable; 0.001° indexing CNC worktable

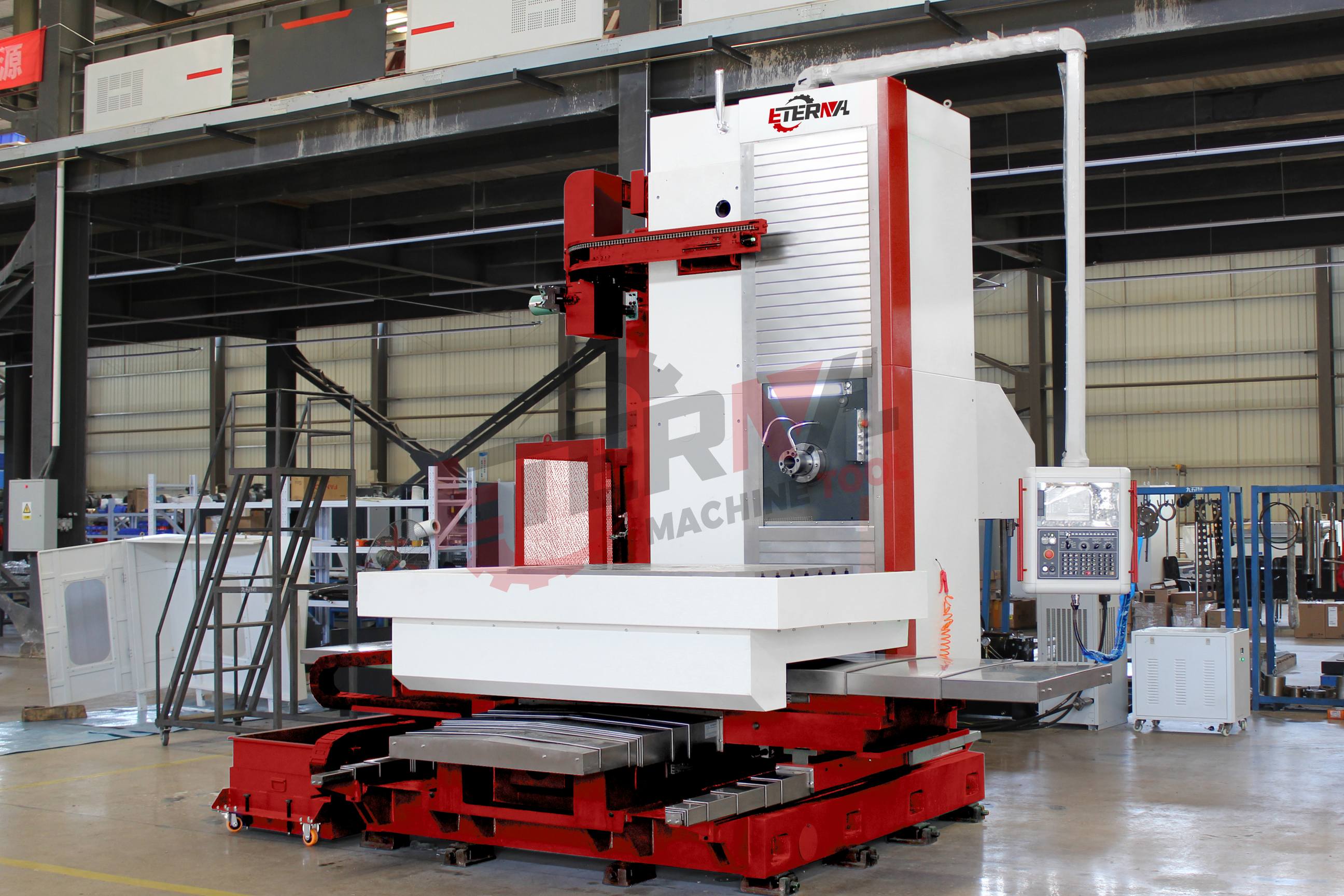

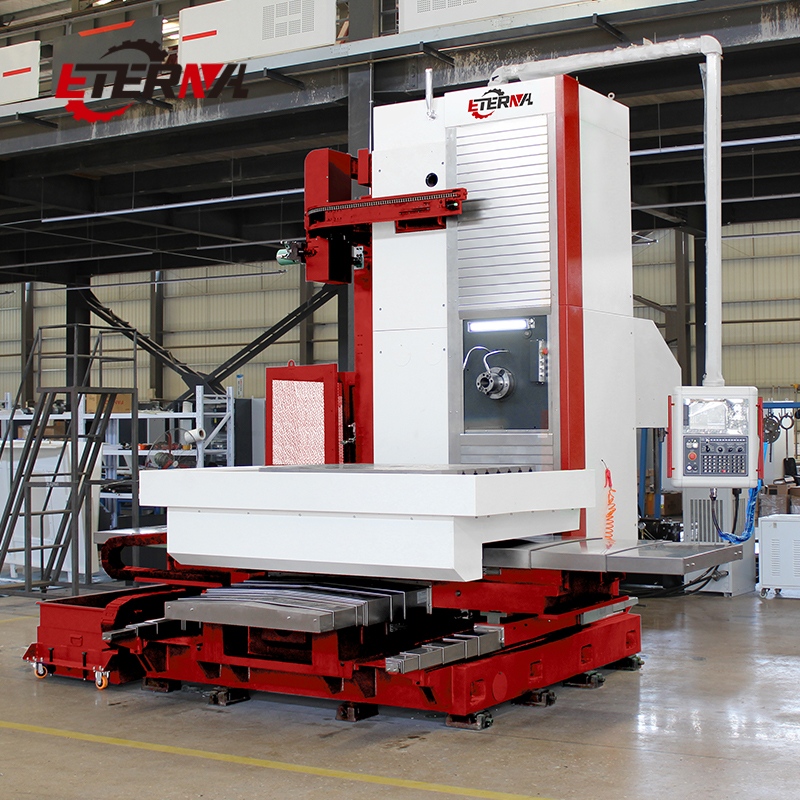

The large, heavily ribbed box-column base is made of premium cast-iron to ensure stability and rigidity even under very heavy machining loads.
The massive machine frame features wide guideways and is designed for table loads up to 5 tons.
The CNC work table indexing in 5° steps allows flexible 4-sided complete machining of the workpiece without retooling.
The powerful motor ensures constant torque across the entire infinitely variable speedy range.
The /FANUC 0i-TF and Siemens 828D CNC-ensures high productivity and precision during production.
Excellent functional interaction between hardware and software ensures high dynamics, while motors and drive technologies provide the necessary precision.

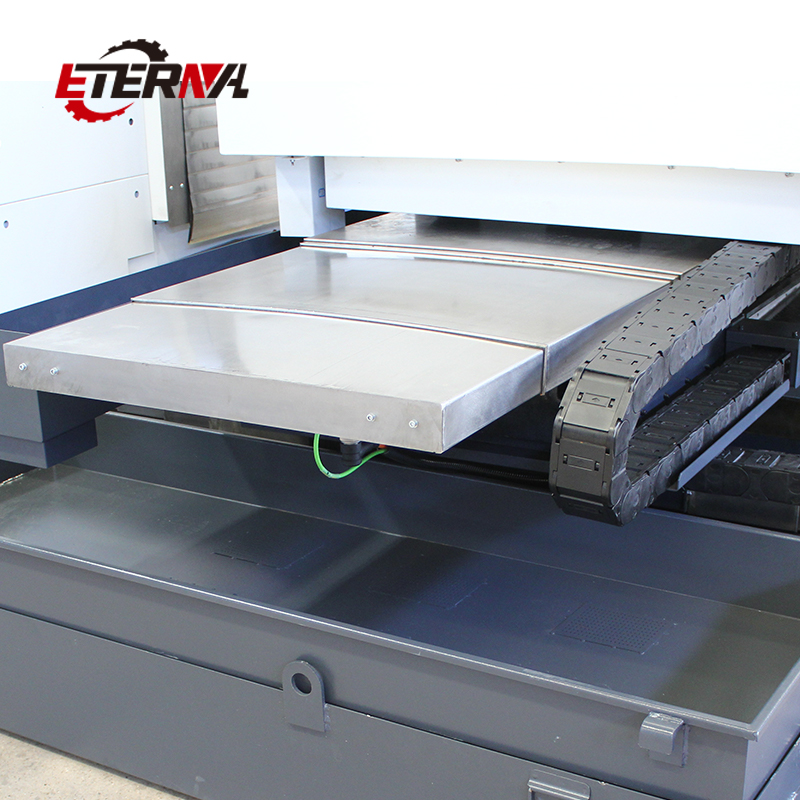

Telescoping stainless steel covers protect the guides from chips and dirt.
Precision preloaded ball screws in all axes ensure high accuracy with low wear and maintenance.
Easy maintenance due to standard central lubrication system.
Optionally the machine can be equipped with a tool changer.
Ideal for aerospace, automotive, energy, and general engineering industries, suitable for machining large complex parts such as engine blocks, gearboxes, molds, and structural frames requiring high precision and multi-face machining.
SPECIFICATION |
UNIT |
HBM-130D |
Spindle speed range |
mm |
Φ130 |
Machine weight |
/ |
BT50 |
Main motor power |
r/min |
12-1200 (12-1500) |
Work table repeatability |
mm |
1400x1200 (1400x1400, 1600x1400) |
Work table rotation accuracy |
kg |
5000 |
X/Y/Z/W-axis repeatability |
mm |
0-1200 (0-1600) |
X/Y/Z/W-axis positioning accuracy |
deg |
5° (1°/0.001°) |
Rapid feed W-axis |
mm |
1800 |
Rapid feed Z-axis |
mm |
1200 (1600) |
Rapid feed Y-axis |
mm |
1200 |
Rapid feed X-axis |
mm |
550 |
Spindle longitudinal travel W-axis |
mm/min |
10000 |
Table longitudinal travel Z-axis |
mm/min |
10000 |
Headstock vertical travel Y-axis |
mm/min |
10000 |
Table corss travel X-axis |
mm/min |
5000 |
Table indexing |
mm |
0.04 |
Spindle center-to-table distance |
mm |
0.02 |
Table load capacity |
" |
10" |
Table size |
" |
4" |
Spindle taper |
kw |
18.5/22 |
Spindle diameter |
kg |
21000 |
※ FANUC 0i-TF CNC system
※ 5° indexing CNC worktable
※ Protection covers for guideways
※ Manual pulse (MPG)
※ Work lamp
※ Pilot lamp
※ USB I/O interface
※ Hydraulic system
※ Auto. Cooling system
※ Auto.lubricating system
※ Air conditioner for electric cabinet
※ General tools
※ Operation manual (English edition)
※ Arm type 24tools ATC

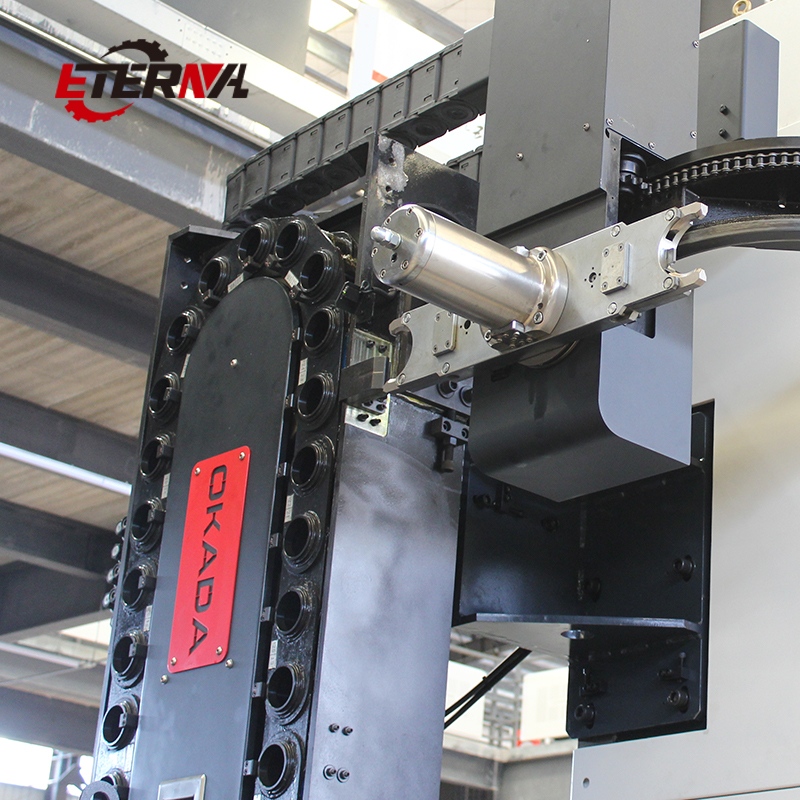

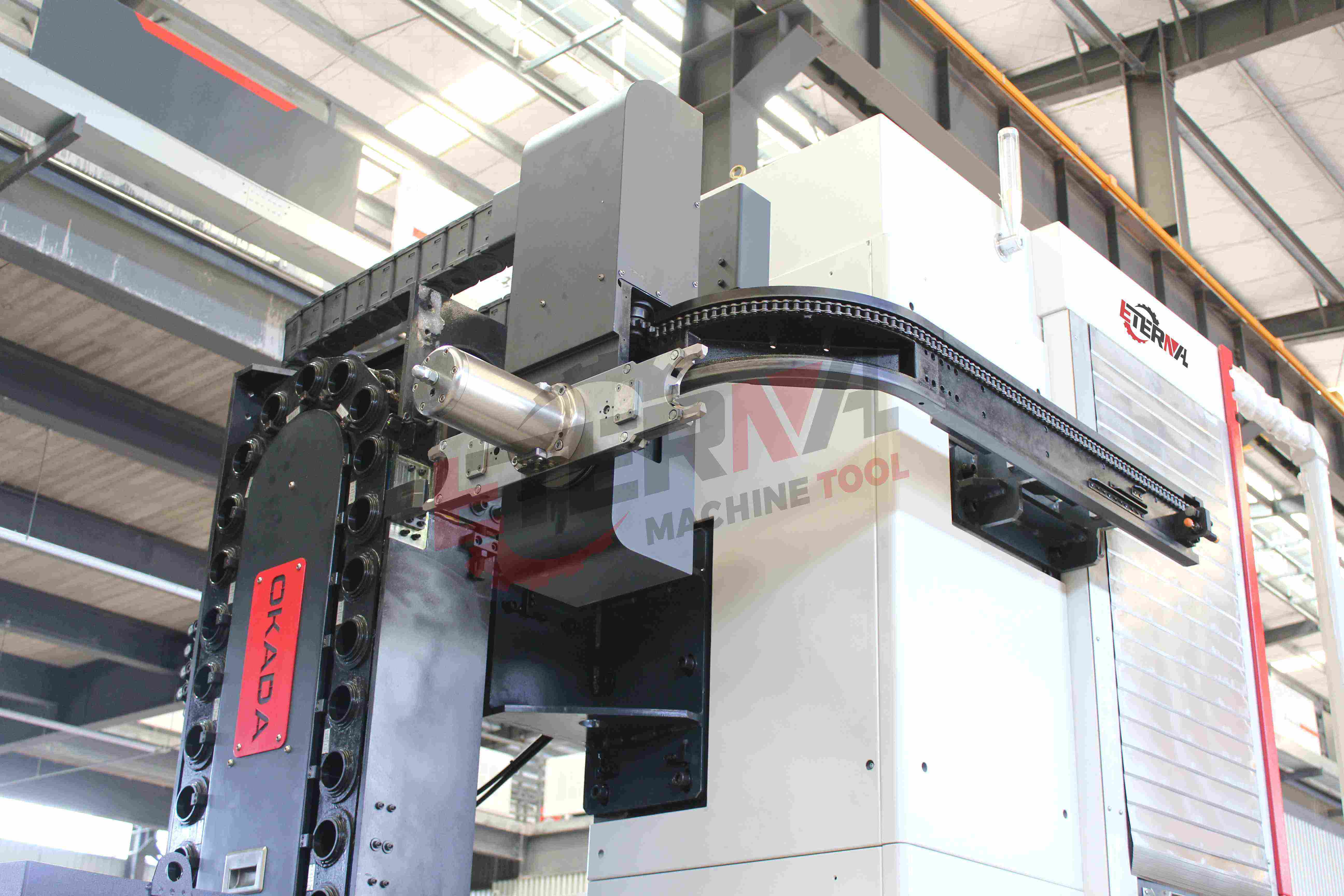

※ Chain type 40tools ATC
※ 1° indexing CNC worktable
※ 0.001° indexing CNC worktable
High rigidity and stability for heavy-duty cutting.
Flexible worktable indexing options (5°, 1°, or 0.001°) to meet various precision requirements.

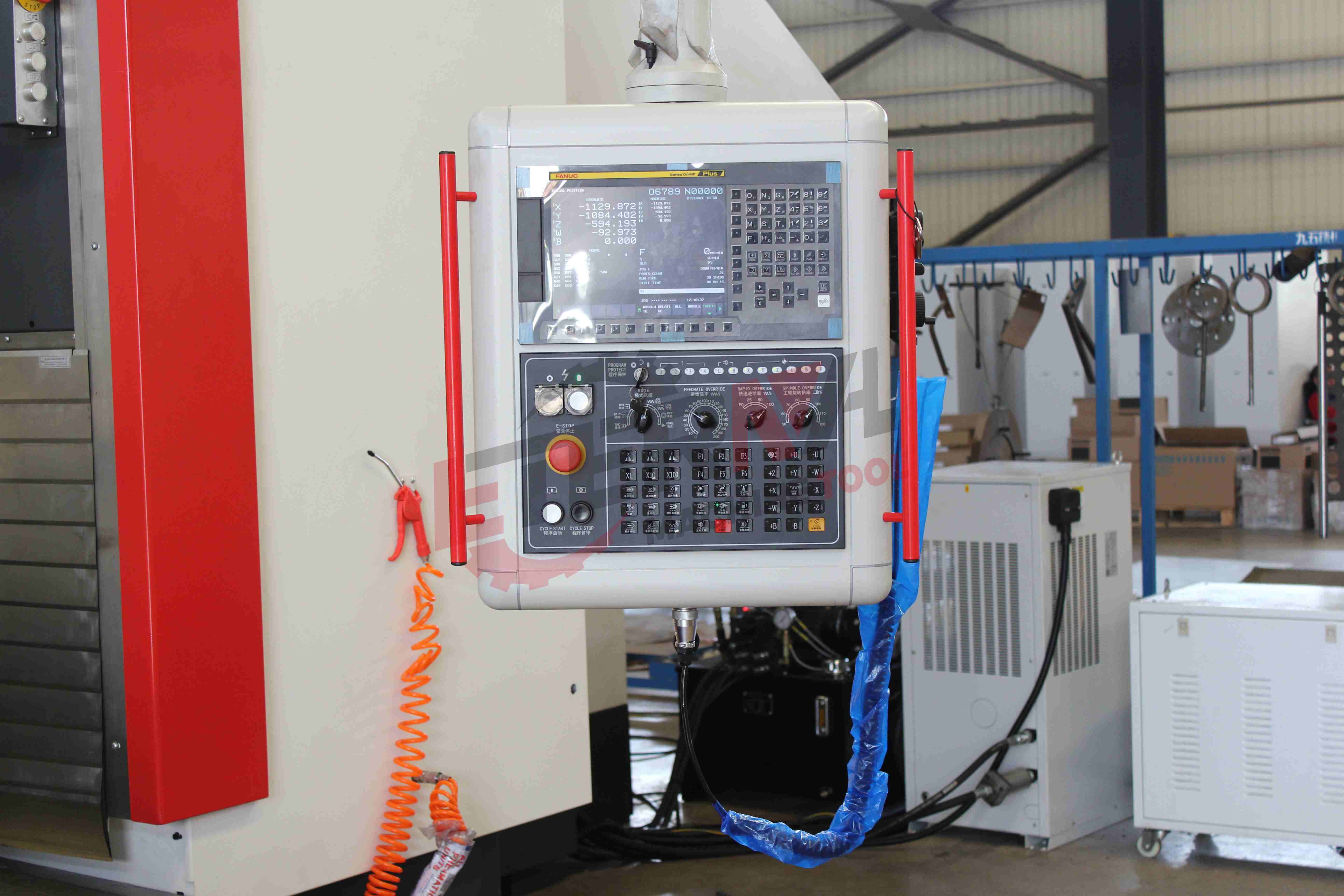

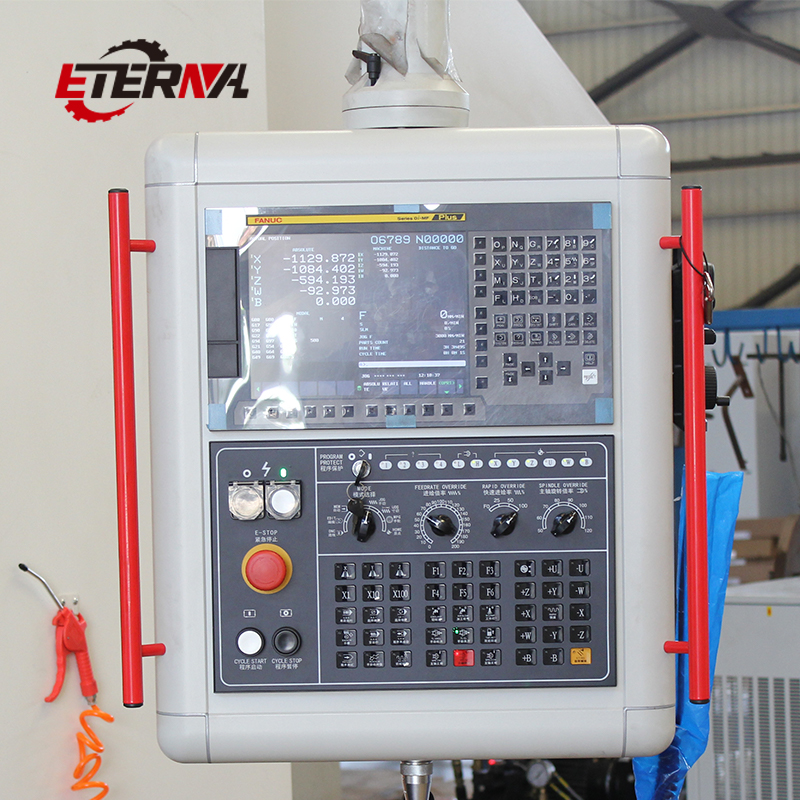

User-friendly FANUC control with MPG and USB interface for easy programming and operation.
Comprehensive automatic systems (cooling, lubrication, hydraulic) reduce manual intervention and improve efficiency.
Optional ATC systems enhance productivity for batch production.
Robust protection and cooling design ensure long-term accuracy and reliability.
