Quick Detail

Main standard:Resin sand casting; X, Y, Z rails adopts imported linear guideway; X, Y, Z rails adopt stainless steel telescopic cover; Standard with belt driven spindle; Taiwan production pneumatic cylinder; Taiwan ATC,disc type and chain type are available as option; Imported bearings for leadsrews; Imported coupling; Headstock balancing system have nitrogen balance system or hydraulic balance system as option; NC rotary worktable (B axis); Work lamp; Pilot lamp; USB and LAN interface; Manual pulse generator (MPG); Centralized automatic lubrication system; Cooling system; Heat exchanger for electrical cabinet; Leveling blocks & bolts; Toolbox and tools; CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
Optional: ZF or BF reducer; Circular Coolant Nozzle; Coolant through spindle (CTS); Spindle oil cooler; Air conditioner (A/C) for electrical cabinet; Auto. Tool length measurement system; Auto. Workpiece measurement systems; Optional with sprial type chip conveyor and chain type chip conveyor.

Description

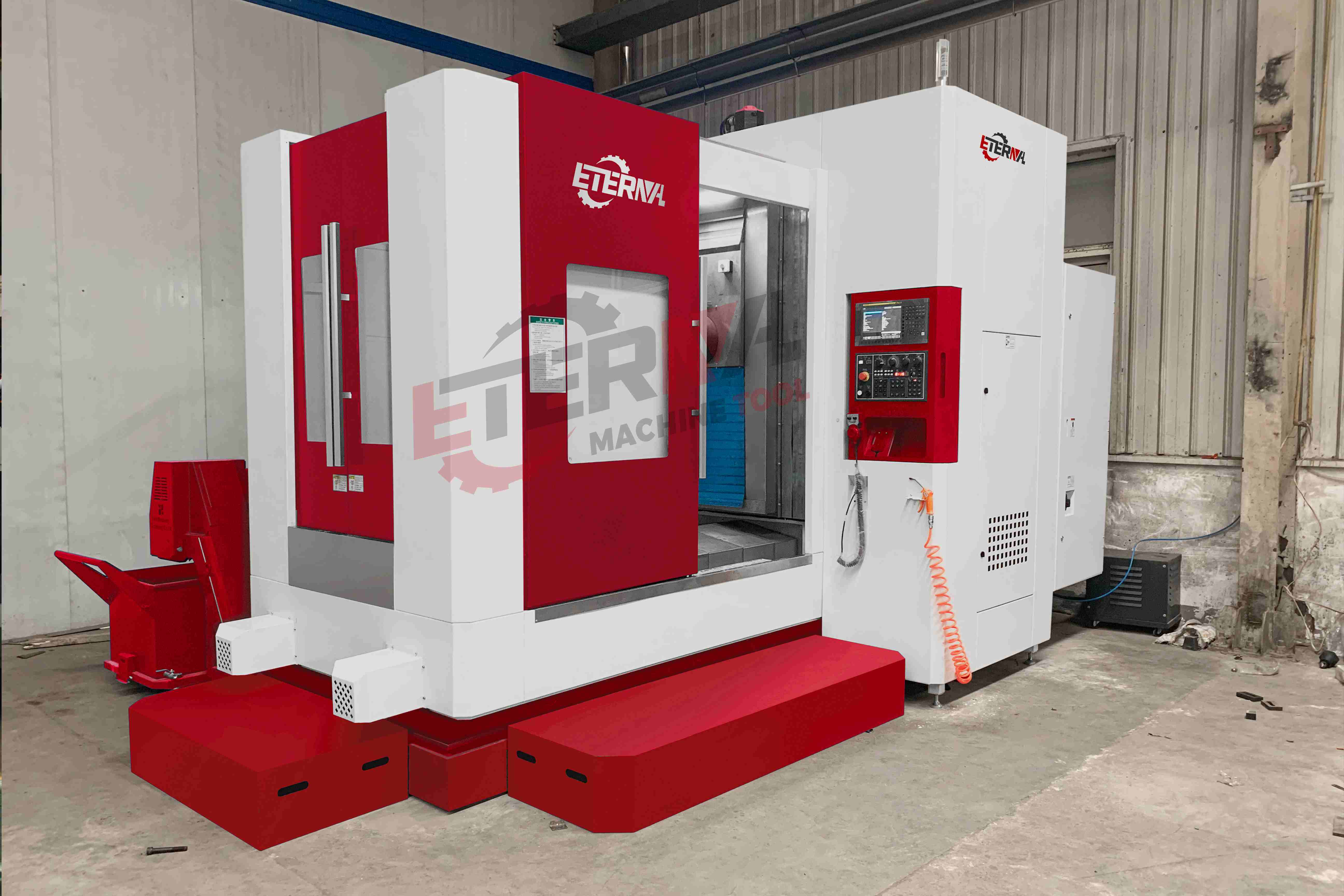

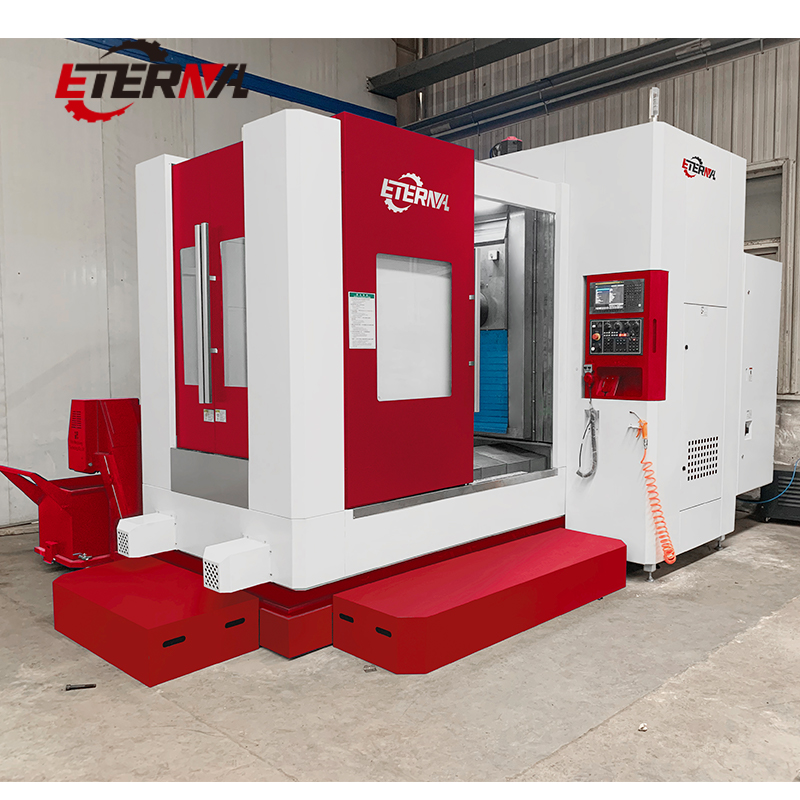

The HMC800 is a high-precision horizontal machining center built on resin sand casting bed, ensuring excellent rigidity and vibration damping. Its X, Y, and Z axes are equipped with imported linear guideways for smooth and accurate movement, and all guideways are protected by stainless steel telescopic covers against chips and coolant. The standard spindle is belt-driven, offering reliable torque delivery. The machine features Taiwan-made pneumatic cylinders and optional Taiwan ATC systems (disc or chain type) for rapid tool changes. Imported bearings and couplings are used for the leadscrews to enhance transmission accuracy. The headstock balancing system can be configured with either nitrogen or hydraulic balancing to suit different machining demands. A NC rotary worktable (B-axis) enables complex multi-face machining in one setup. Standard accessories include work lamp, pilot lamp, USB/LAN interfaces, manual pulse generator, centralized automatic lubrication, cooling system, electrical cabinet heat exchanger, leveling blocks, toolbox, and tools. The CNC controller can be selected from Chinese brands (KND, GSK, HNC) or international ones (SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.). Optional features include ZF/BF reducers, circular coolant nozzles, through-spindle coolant, spindle oil cooler, air conditioner for cabinet, automatic tool/workpiece measurement systems, and spiral or chain chip conveyors.

Applications

Ideal for aerospace, automotive, mold, and general machinery industries, suitable for batch processing of medium-to-large prismatic parts such as engine blocks, gearboxes, valve bodies, and structural frames requiring high positional accuracy and multi-side machining.

Specifications

Standard Accessories

※ Resin sand casting
※ X, Y, Z rails adopts imported linear guideway
※ X, Y, Z rails adopt stainless steel telescopic cover
※ Standard with belt driven spindle
※ Taiwan production pneumatic cylinder

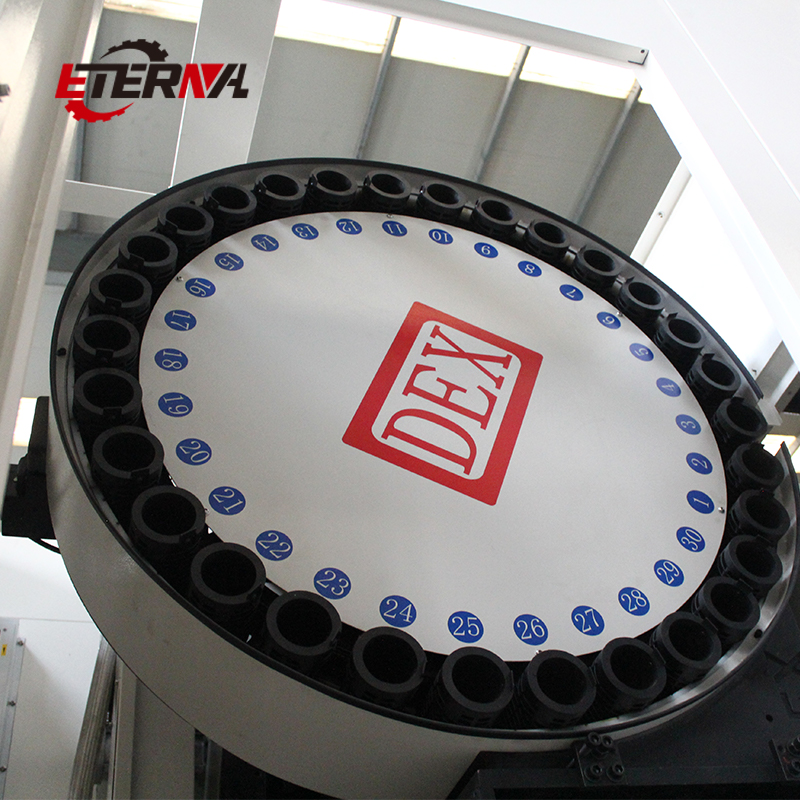

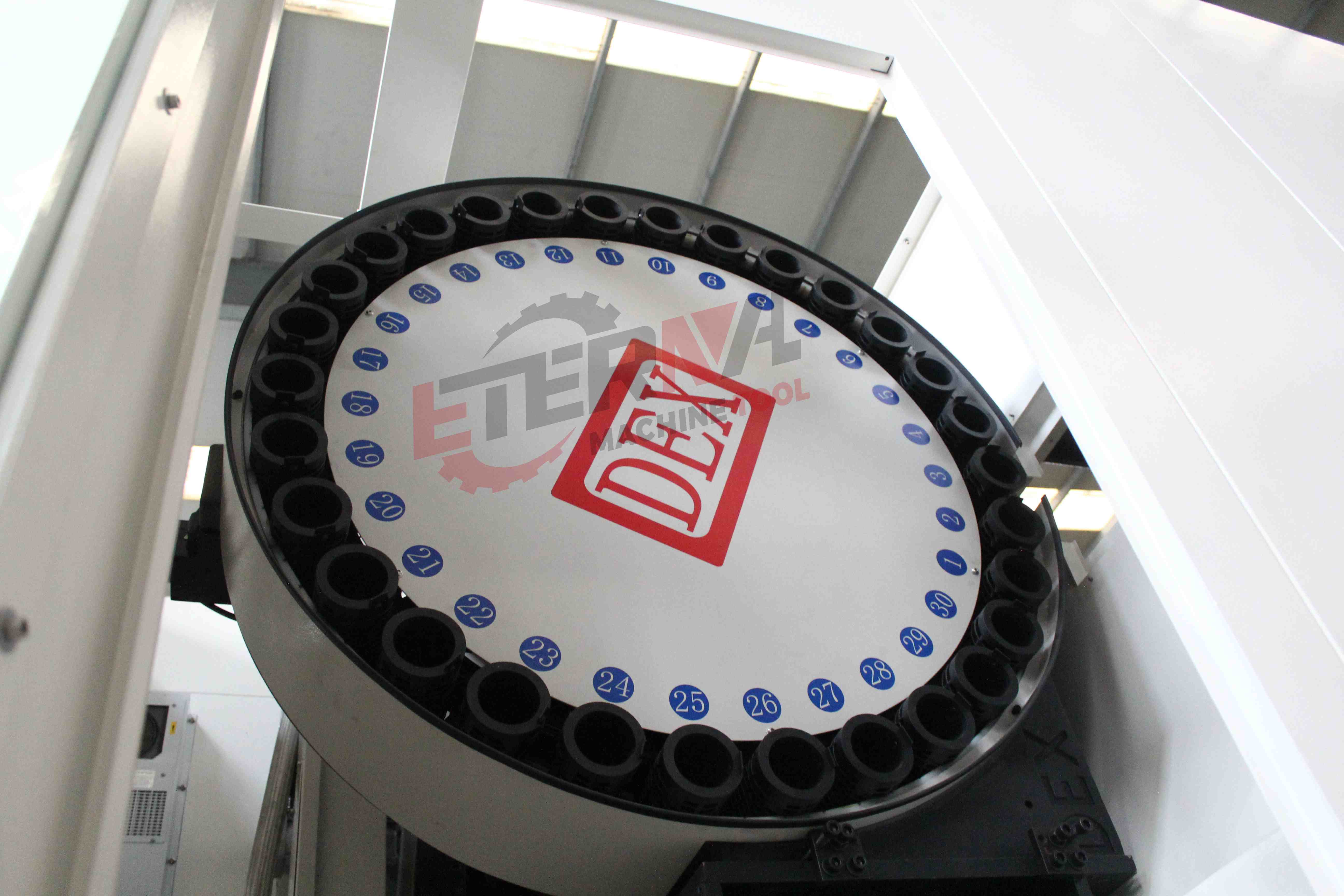

※ Taiwan ATC,disc type and chain type are available as option
※ Imported bearings for leadsrews
※ Imported coupling
※ Headstock balancing system have nitrogen balance system or hydraulic balance system as option

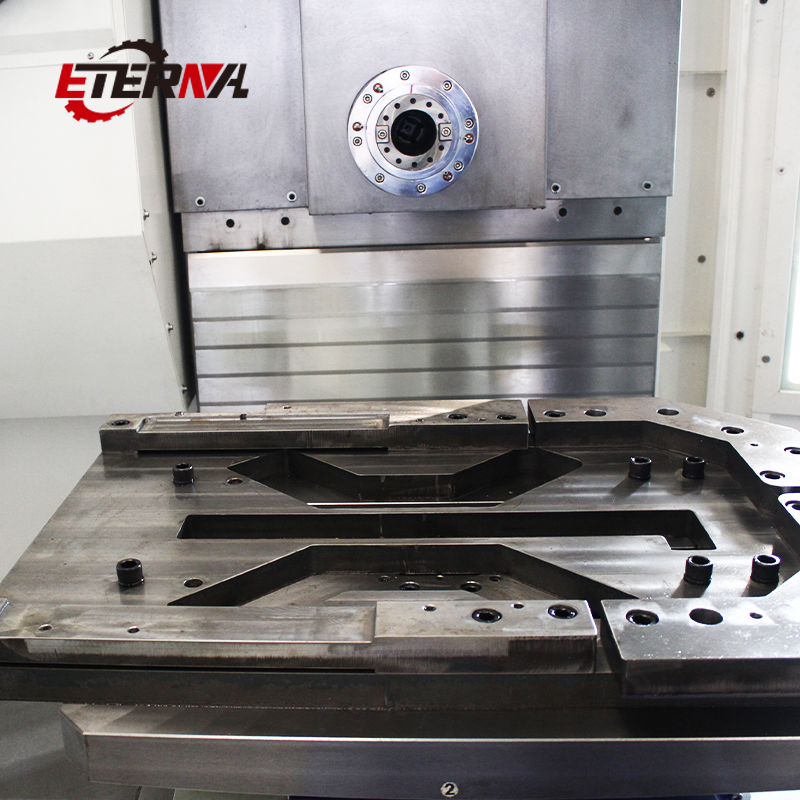

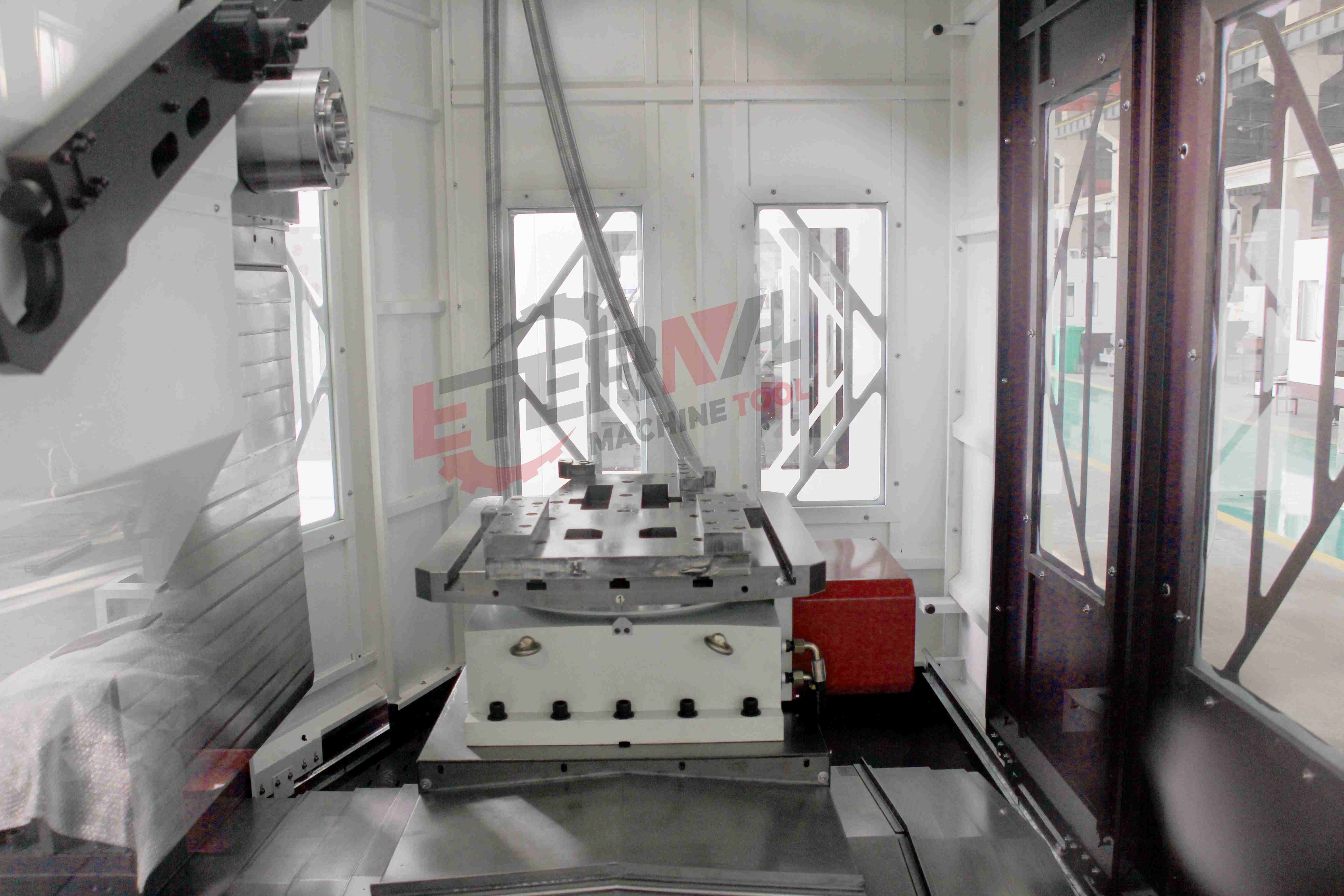

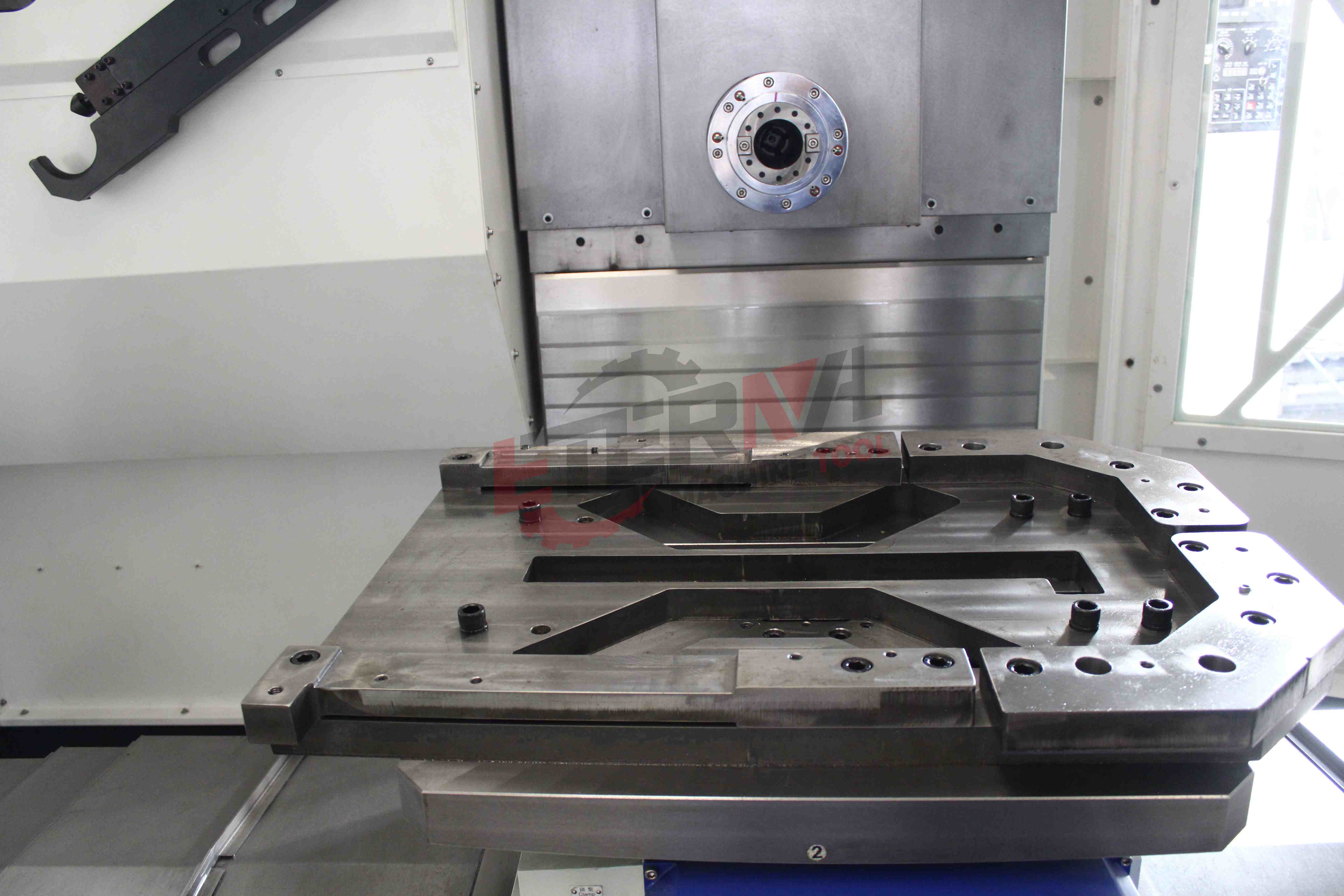

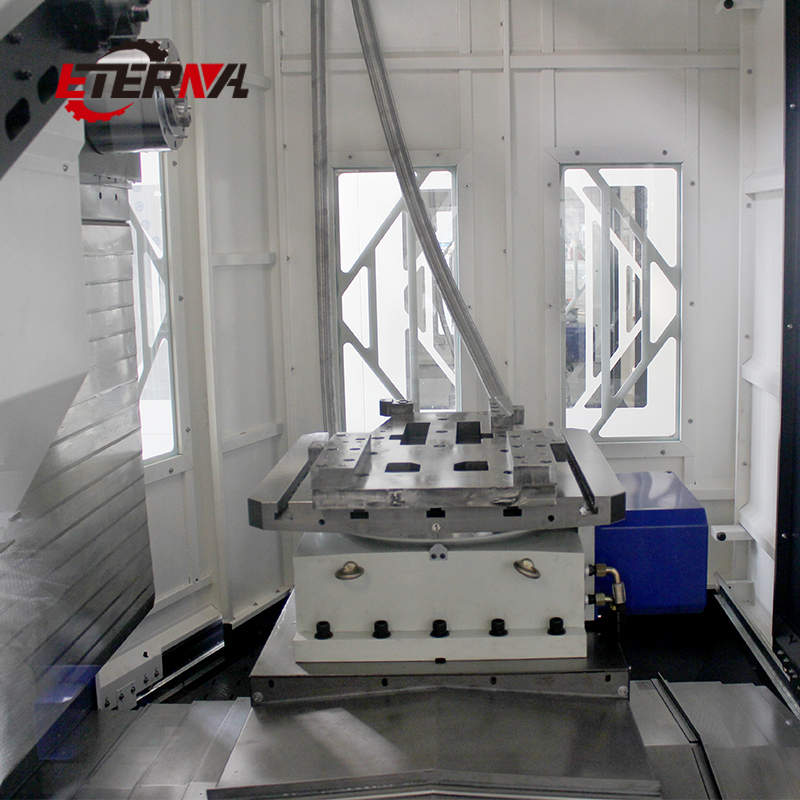

※ NC rotary worktable (B axis)
※ Work lamp
※ Pilot lamp
※ USB and LAN interface
※ Manual pulse generator (MPG)
※ Centralized automatic lubrication system
※ Cooling system
※ Heat exchanger for electrical cabinet
※ Leveling blocks & bolts
※ Toolbox and tools
※ CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.

Optional Accessories

※ ZF or BF reducer
※ Circular Coolant Nozzle
※ Coolant through spindle (CTS)
※ Spindle oil cooler
※ Air conditioner (A/C) for electrical cabinet
※ Auto. Tool length measurement system
※ Auto. Workpiece measurement systems
※ Optional with sprial type chip conveyor and chain type chip conveyor

Competitive Advantage:

Superior stability from resin sand cast structure.
High motion accuracy with imported linear guides and precision couplings/bearings.
Flexible spindle and ATC options to match various production scales.
Multi-brand CNC control choices for cost or performance optimization.
Extensive optional add-ons (CTS, measurement systems, chip conveyors) allow customization for unmanned or high-efficiency operations.
Robust protection and lubrication systems ensure long-term reliability and low maintenance.
