Quick Detail

Main standard:MT6 spindle (110mm); Facing plate;Boring tool holder; Work lamp; Cooling system; Hydraulic system; Lubrication pump; NEWALL X/Y-axis DRO; MITSUBISHI PLC control; CE-mark electrical components; Level wedges & foundation bolts; Operating tools; Operation manual
Optional:
ISO50 (7:24) spindle; NEWALL Z-axis DRO; Rear column; Turning device & gears

Description

Machine Summary

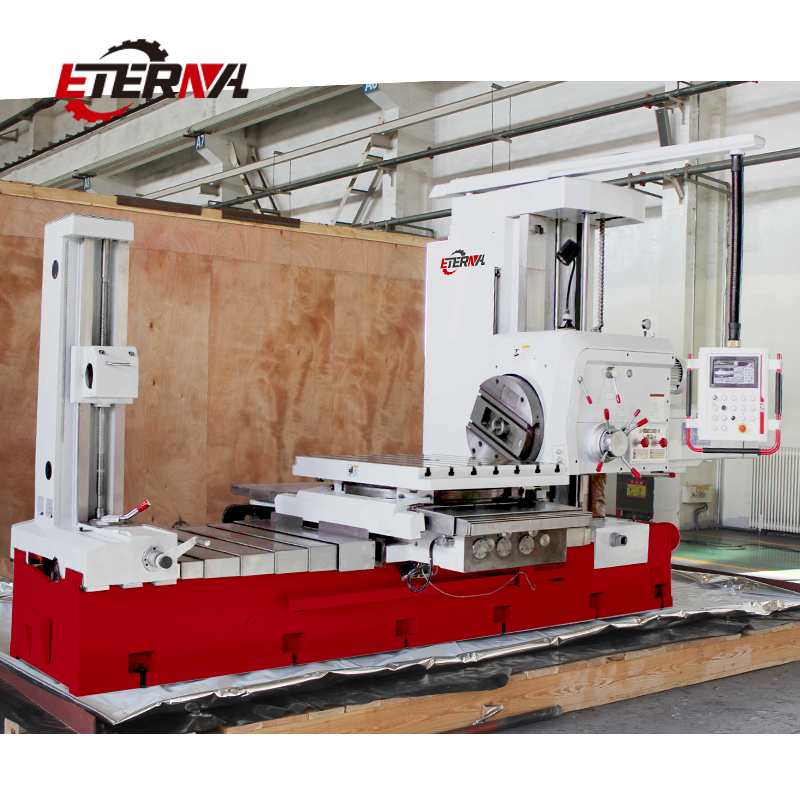

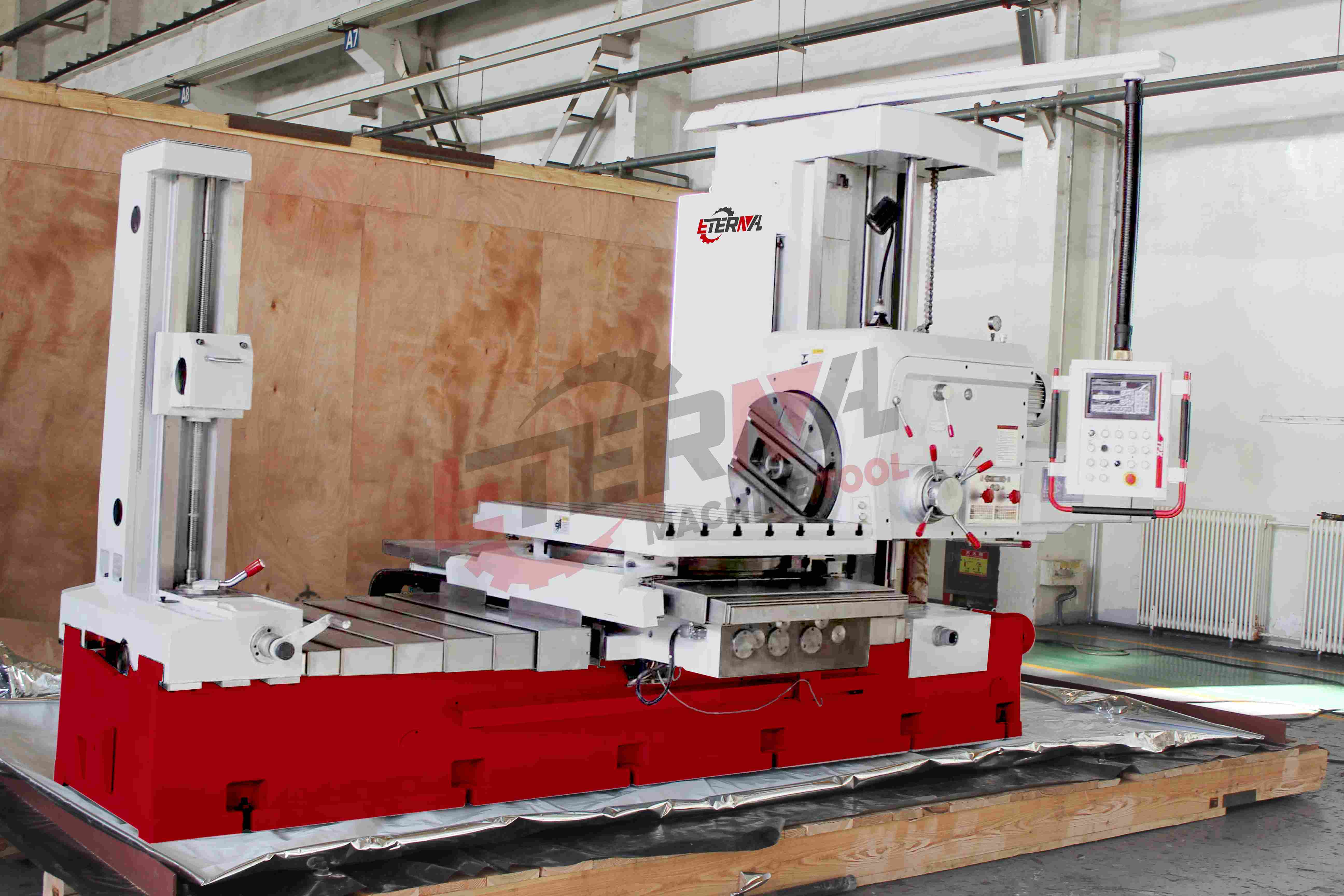

The classic series horizontal milling and boring machines are especially suitable for the rough and finishing boring as well as large, medium size and box type components milling. They excel at inner hole boring, cylindrical turning, and grooving by radial feed of facing plate slide rest. worktable rotation uses a 4x90 optical positioning device suitable for large workpiece turnover machining accuracy needs. The precision DRO measurement system meets the requirements of workpiece coordinate and lineation.

Performance and feature

High Quality Spindle
The three layer mechanism ensures high rotational accuracy and the three point support provides high rigidity and accuracy.
User Friendly Layout
The hanging operation Panel provides flexible and convenient centralized operation. Hydraulic preselection controls speed and feed rate.

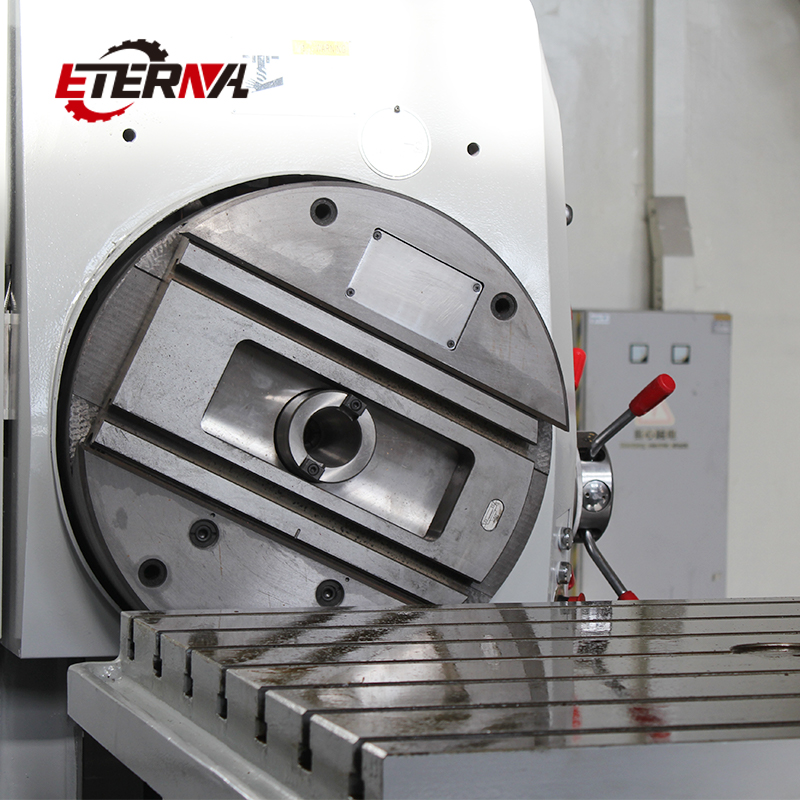

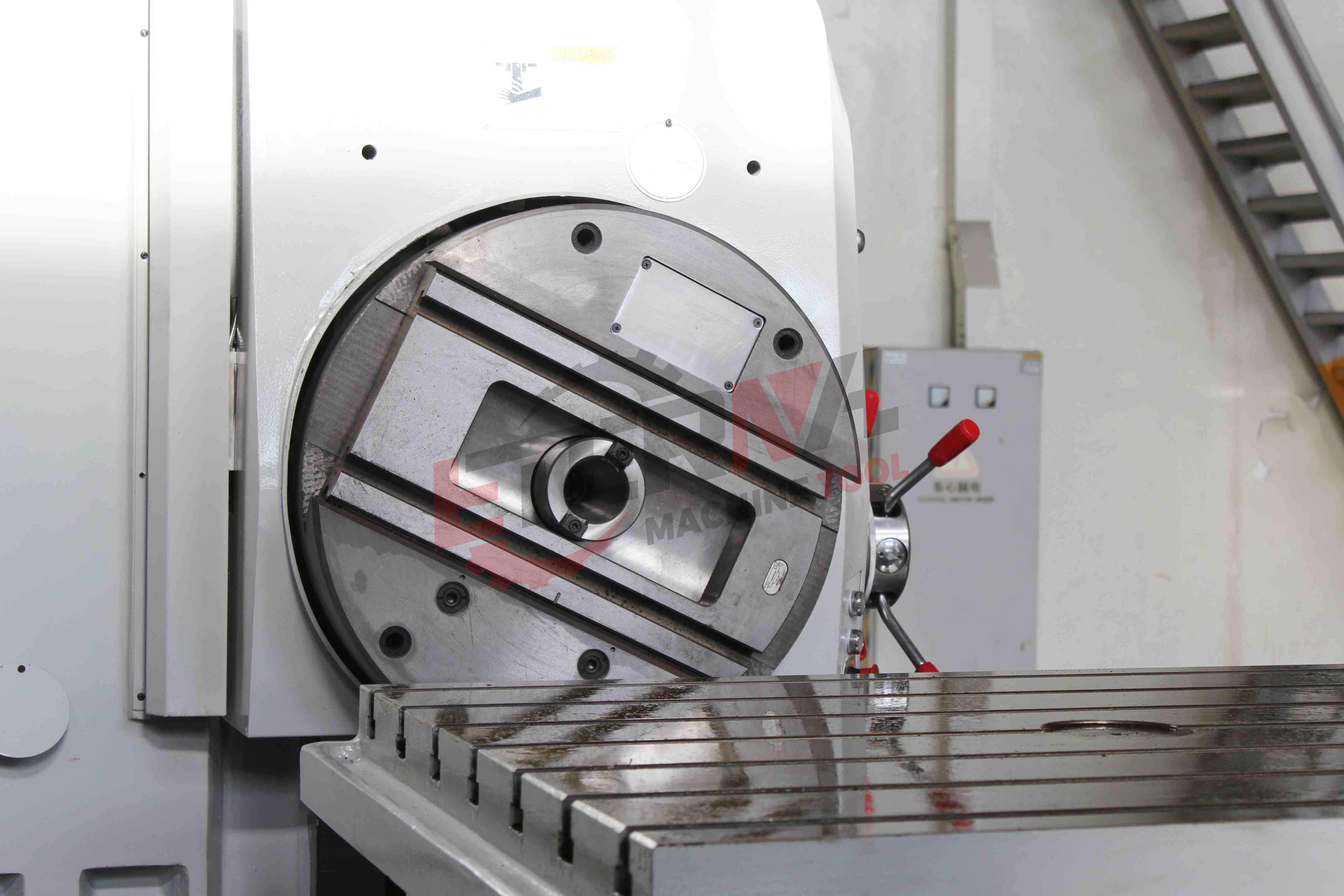

Accurate & Stable Optical Aiming
The worktable's 4x90 optical aiming device ensures high positioning accuracy and high precision when turnover boring.
Elector-Hydraulic Interlock
All moving components feature electro-hydraulic interlocks. Only one component moves while others are clamped automatically.

Structure and Feature

Bed
Our high quality casting feature polished and hardened guideways. The castings are internally reinforced to maximize rigidity and stability.

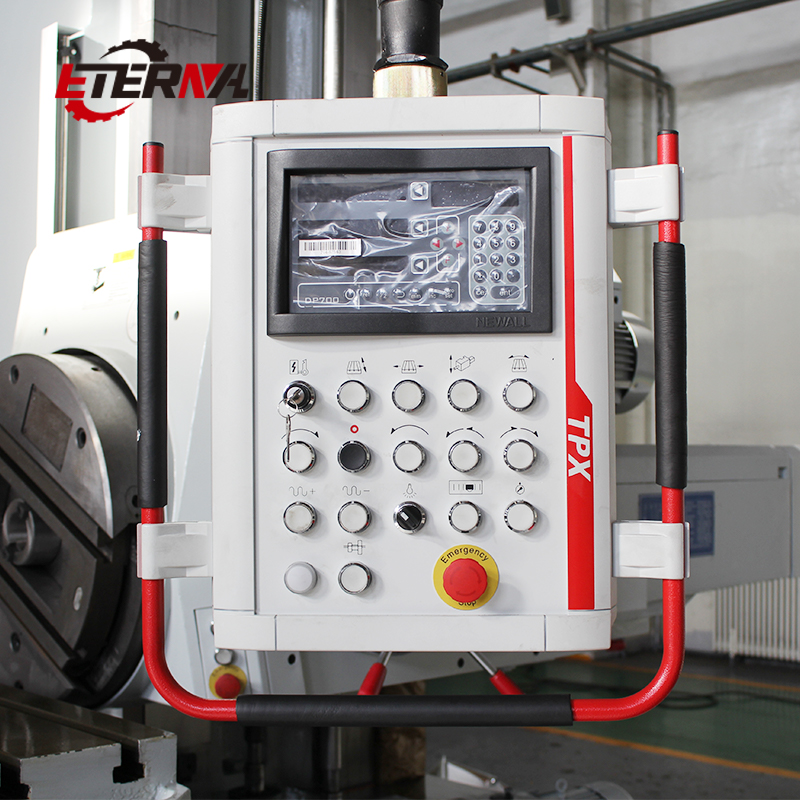

Control Panel
Available in hanging or swing-arm arrangements, the control panel is easy to use and reduces operator fatigue.
Internal Design
Easy to install, steady, and precise with a fully-enclosed structure to prevent oil, coolant, and chip intrusion.
Column
Made of high quality castings with ground and hardened guideways, the optimized structural design easily supports the assembly.
Protective Enclosure
Welded high quality steel plates form an excellent protective cover.
Hydraulic System
Pressure adjusted via relief valve. Variable speed achieved via a rotary valve.

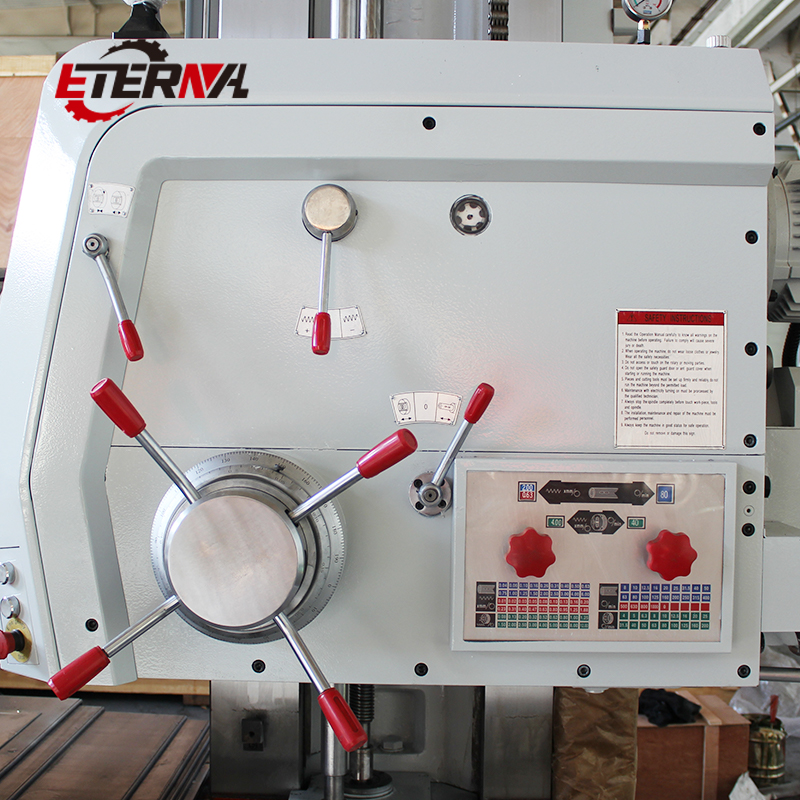

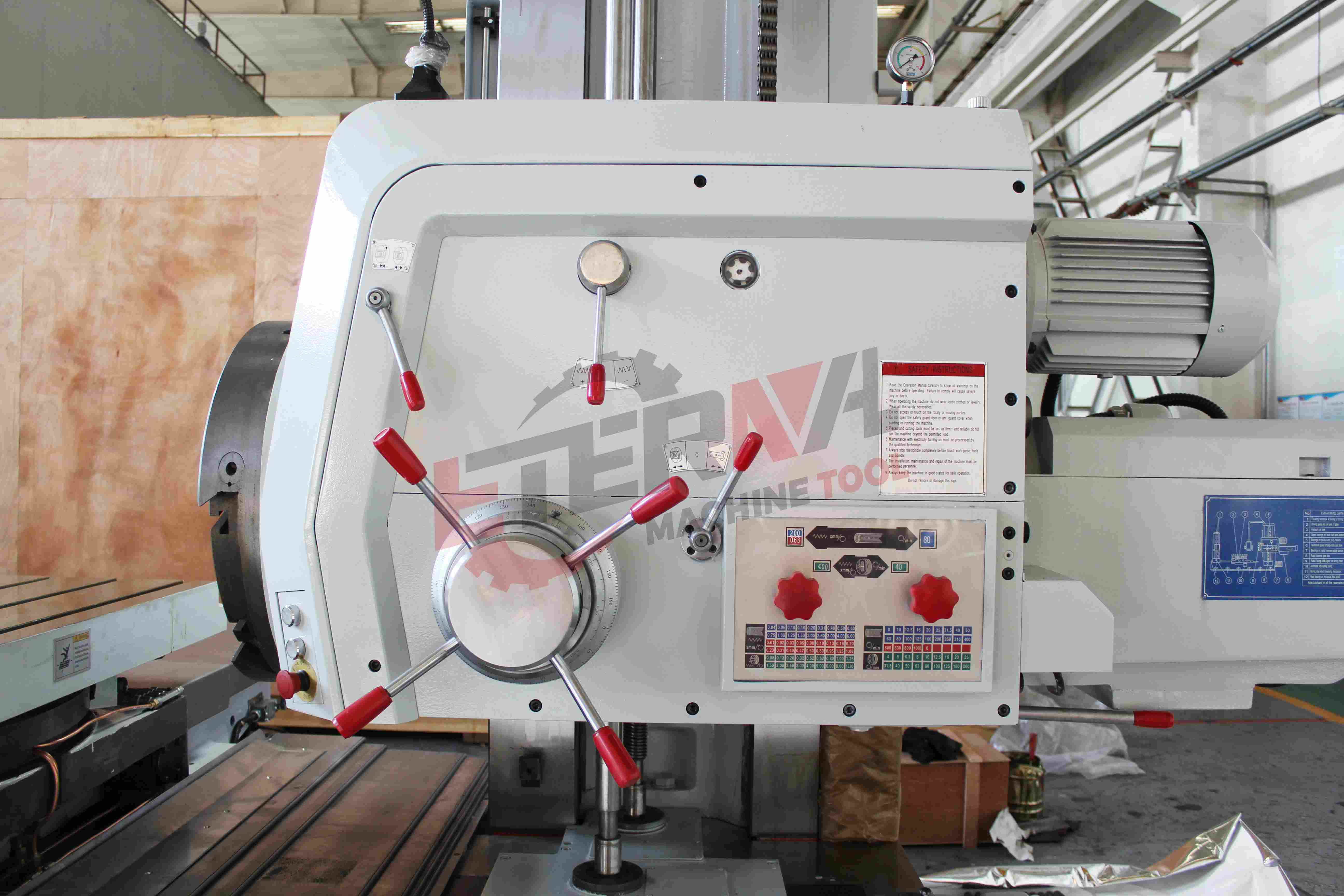

Headstock
Primary speed is controlled via switches on the headstock itself, a variety of rotational speeds are possible.

Applications

The classic series horizontal milling and boring machines are especially suitable for the rough and finishing boring as well as large, medium size and box type components milling. They excel at inner hole boring, cylindrical turning, and grooving by radial feed of facing plate slide rest.

Specifications

Standard Accessories

※ MT6 spindle (110mm)
※ Facing plate
※ Boring tool holder
※ Work lamp
※ Cooling system
※ Hydraulic system
※ Lubrication pump
※ NEWALL X/Y-axis DRO;MITSUBISHI PLC control
※ CE-mark electrical components
※ Level wedges & foundation bolts
※ Operating tools
※ Operation manual

Optional Accessories

※ ISO50 (7:24) spindle
※ NEWALL Z-axis DRO
※ Rear column
※ Turning device & gears

Competitive Advantage

The TPX-110B Horizontal Boring Mill offers a well-balanced combination of standard high-end features and flexible optional upgrades, making it highly adaptable to diverse machining requirements. Its standard MT6 spindle (110mm) provides robust rigidity and heavy-cutting capability, while the inclusion of a hydraulic system, lubrication pump, and cooling system ensures stable long-term operation and effective thermal management. The NEWALL X/Y-axis DRO combined with MITSUBISHI PLC control delivers precise positioning and reliable automation, and the CE-marked electrical components guarantee compliance with international safety standards. Furthermore, the availability of ISO50 spindle, Z-axis DRO, and rear column options allows users to tailor the machine for extended reach, deeper boring, or specialized turning applications, significantly enhancing its versatility and cost-effectiveness for both general and precision boring operations.
