Quick Detail

Main standard:Manual four-jaw chuck worktable; Cooling system; Standard tool holder 2 pieces; Protection guard; Chip conveyor, iron chip trolley; Basic feet and pads; Automatic forced lubrication system; Maintenance tools; CNC system (SINUMERIK808D); Worktable lubrication and cooling system; Electric cabinet air conditioner; Spindle encoder; Work lamp; Three-color signal lights; X-axis telescopic protective cover.
Optional: CNC system (FANUC OI TF); Increase the worktable diameter; Oil and water filter; Increase z-axis travel; Auxiliary tool holder (left vertical tool holder); Increase the spindle motor power; Vertical tool holder form; Increase the height of the work piece; X-axis grating ruler; Z-axis grating ruler.

Description

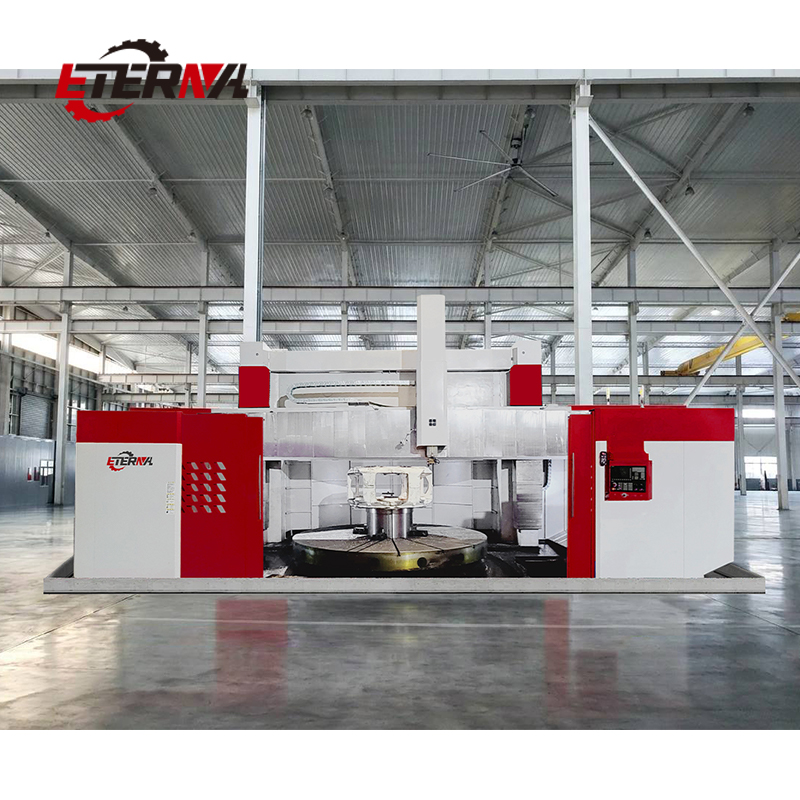

The machine is controlled by Siemens CNC system and has excellent performance and stability. Both the X-axis and Z-axis are driven by AC servo motors, ensuring high-precision motion control. The main transmission is driven by a set of horizontal spindle servo motors, and the speed range required for turning is achieved through the variable speed transmission of the horizontal axis mechanism.
The connection between the machine's main motor and the main transmission box is tight and stable,ensuring the smooth progress of the machining process. In addition, an encoder is equipped in the middle of the spindle to achieve constant linear speed cutting, further improving processing efficiency and quality.The whole machine adopts a fully enclosed protection design to ensure safe operation and efficient production.
Each guide rail surface of the machine is ground after quenching, and the quenching hardness reaches above HRC50 to ensure high strength and stability. The sliding surface of the feed guide rail adopts imported guide rail soft belt, which not only improves the vibration resistance of the machine, but also enhances its wear resistance and extends the service life of the machine.

Applications

Wind power, aerospace, marine engineering, heavy machinery, rail transit, and large bearing manufacturing.

Specifications

Standard Accessories

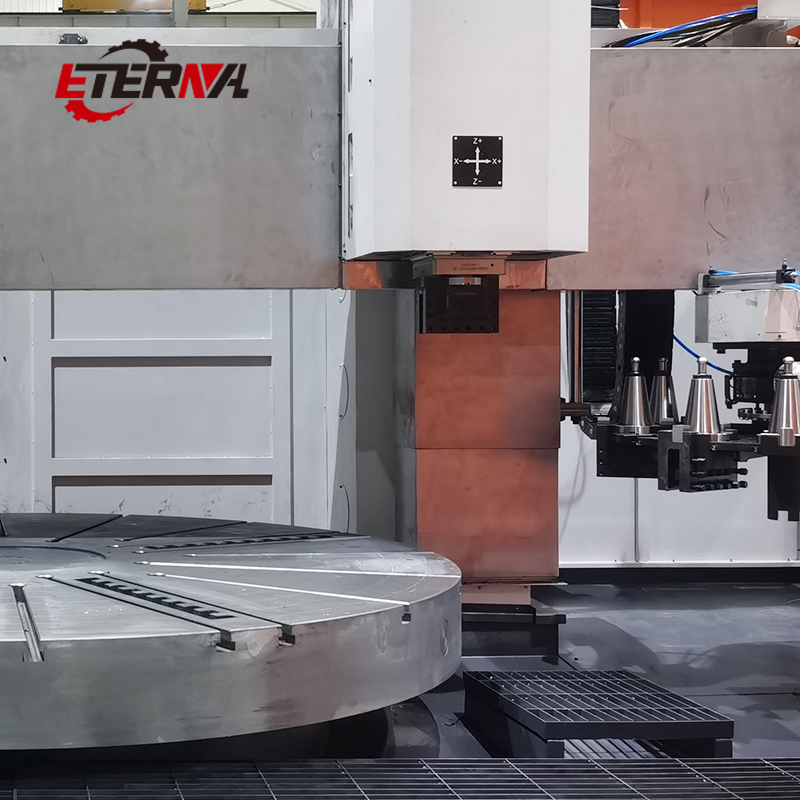

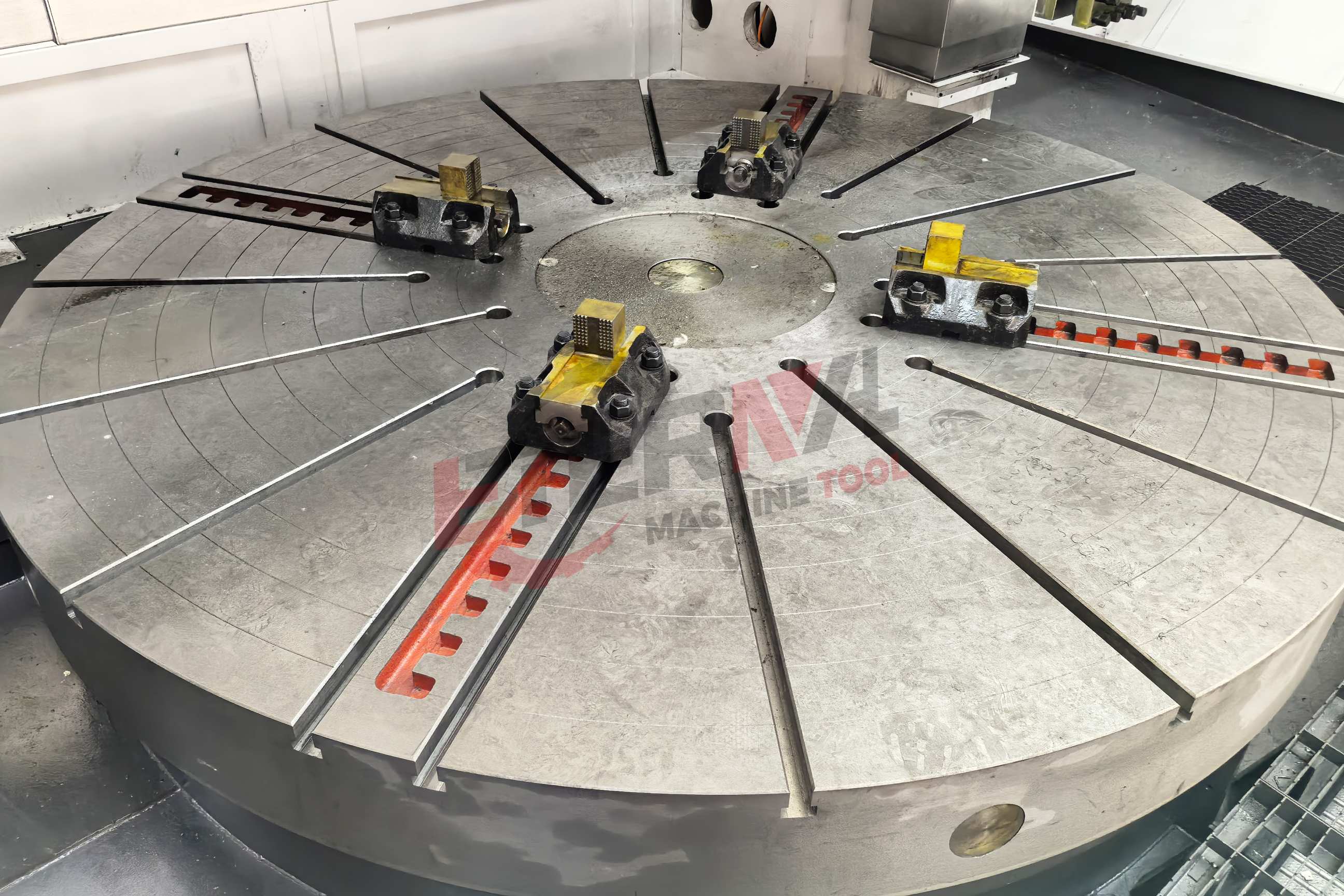

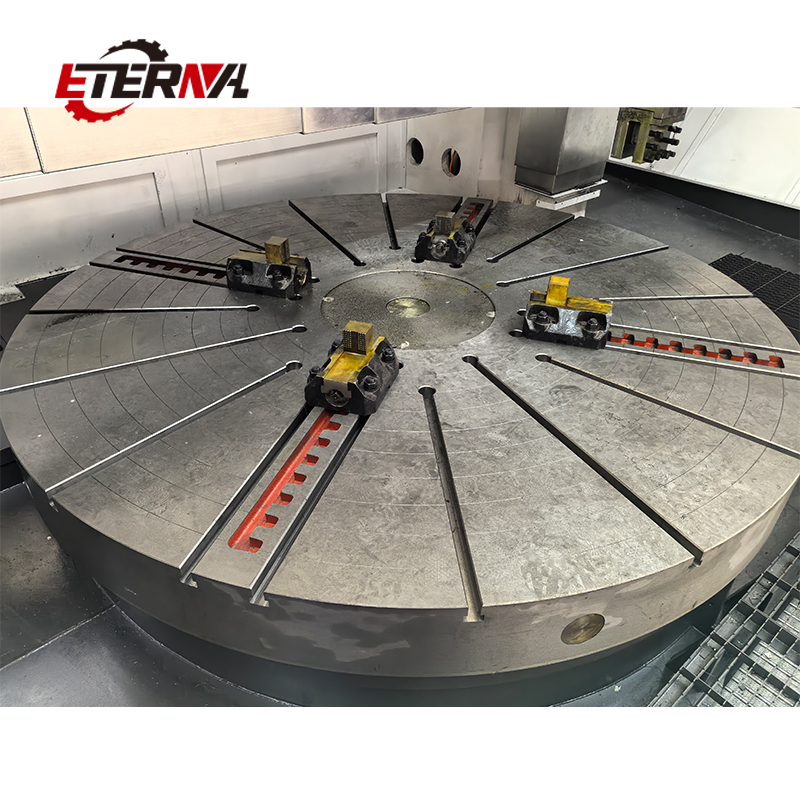

※ Manual four-jaw chuck worktable
※ Cooling system

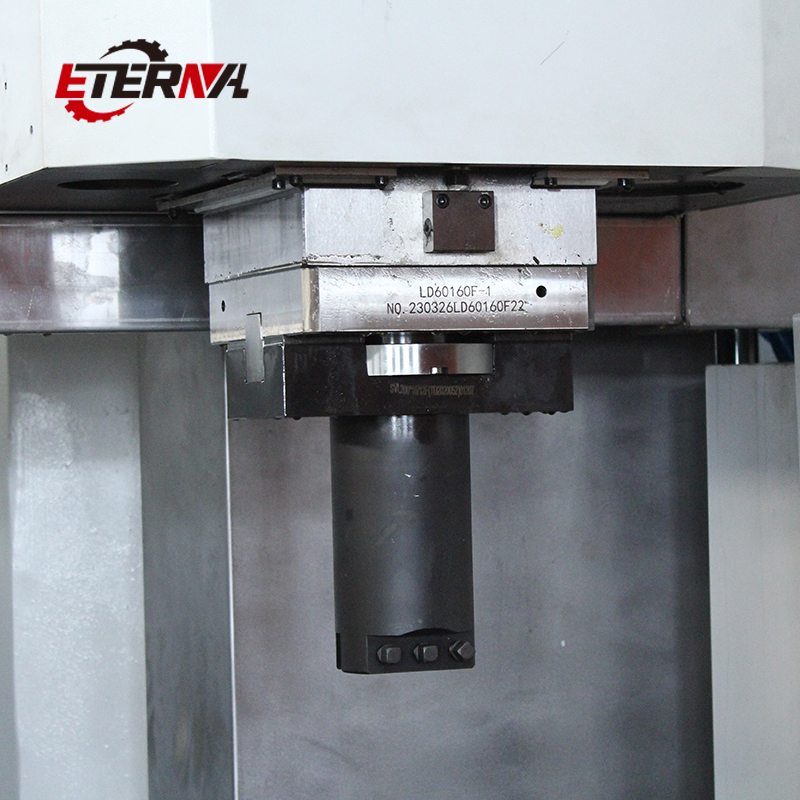

※ Standard tool holder 2 pieces
※ Protection guard
※ Chip conveyor,iron chip trolley
※ Basic feet and pads
※ Automatic forced lubrication system
※ Maintenance tools
※ CNC system(SINUMERIK808D)
※ Worktable lubrication and cooling system
※ Electric cabinet air conditioner
※ Spindle encoder
※ Work lamp
※ Three-color signal lights
※ X-axis telescopic protective cover

Optional Accessories

※ CNC system (FANUC OI TF)
※ Increase the worktable diameter
※ Oil and water filter
※ Increase z-axis travel

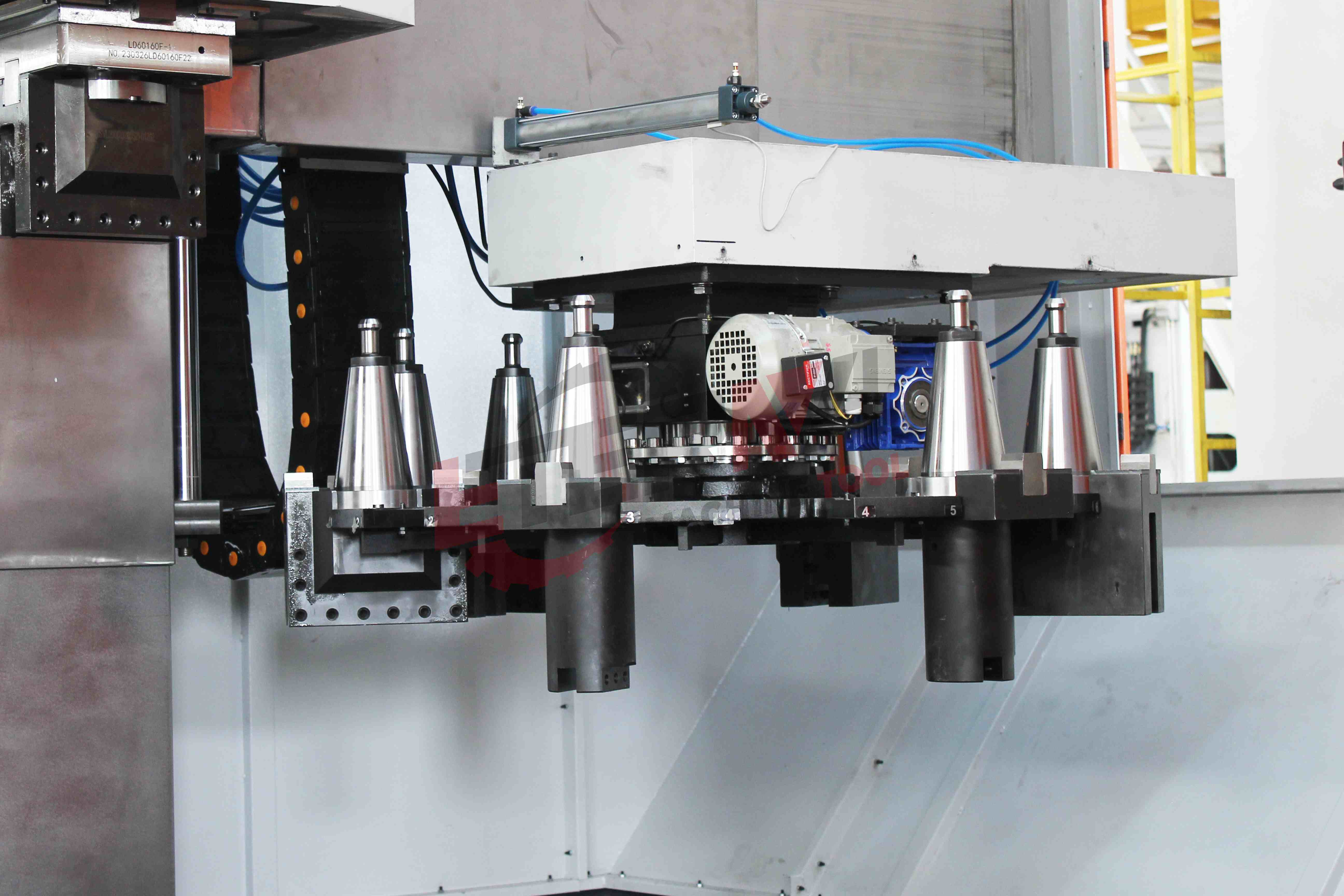

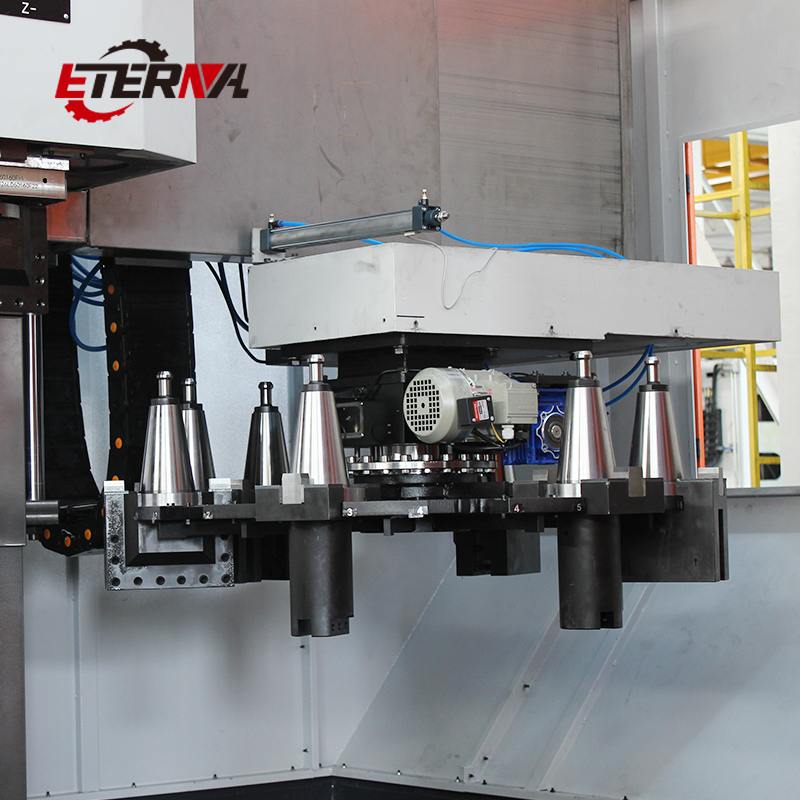

※ Auxiliary tool holder (left vertical tool holder)
※ Increase the spindle motor power
※ Vertical tool holder form
※ Increase the height of the work piece
※ X-axis grating ruler
※ Z-axis grating ruler

Competitive Advantage

Rigid double-column structure for heavy cuts; modular configurations for customized production; optional grating rulers for high-precision closed-loop control; flexible CNC choices (Siemens/FANUC); integrated chip and thermal management for stable long-run operation.
