Quick Detail

Main standard: Tool holder; Chuck & chuck jaws; Hydraulic system; Work lamp; Automatic lubrication system; Tools & tool box; Foundation bolts & level wedges; Operation manual
Optional: 2 axis digital readout

Description

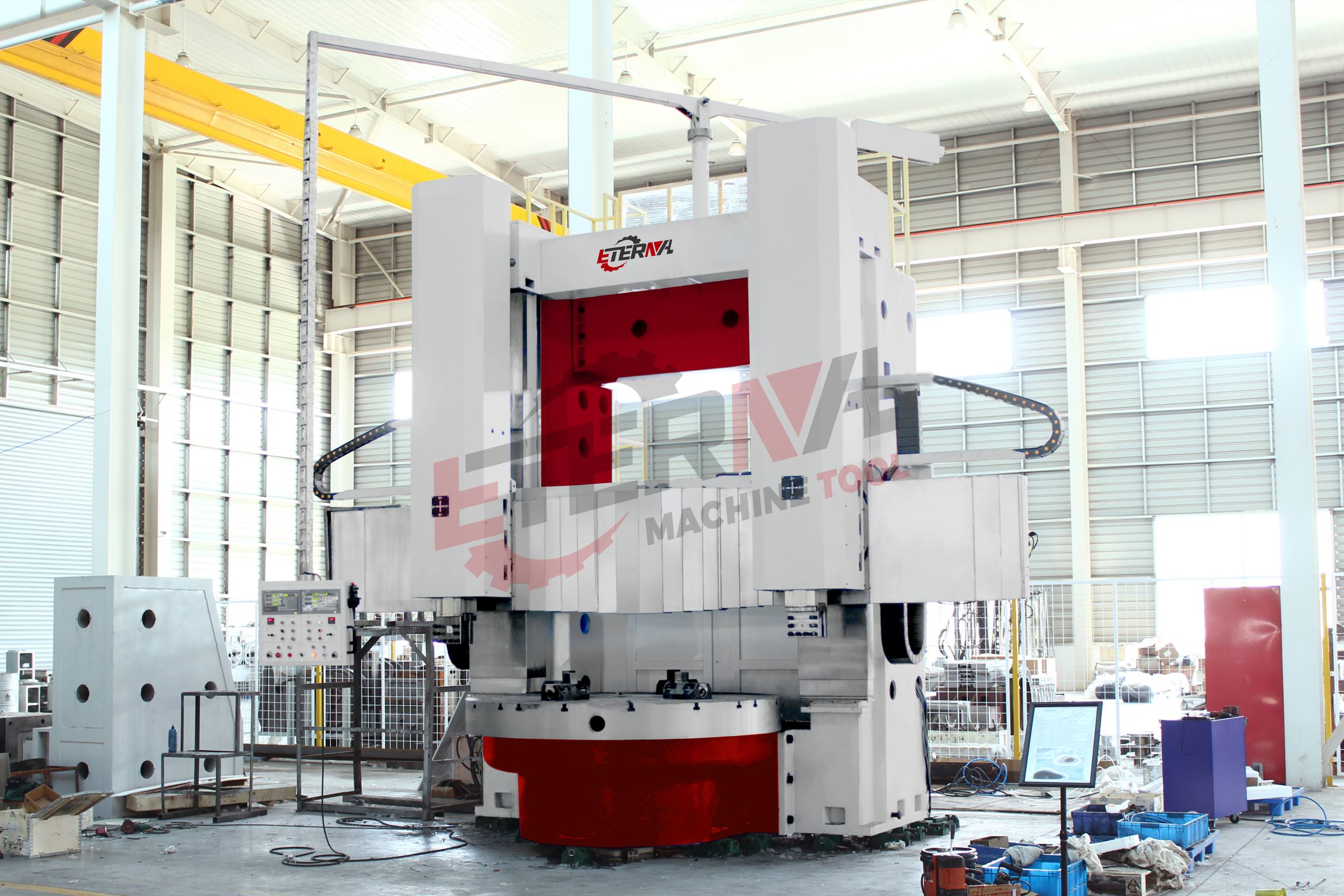

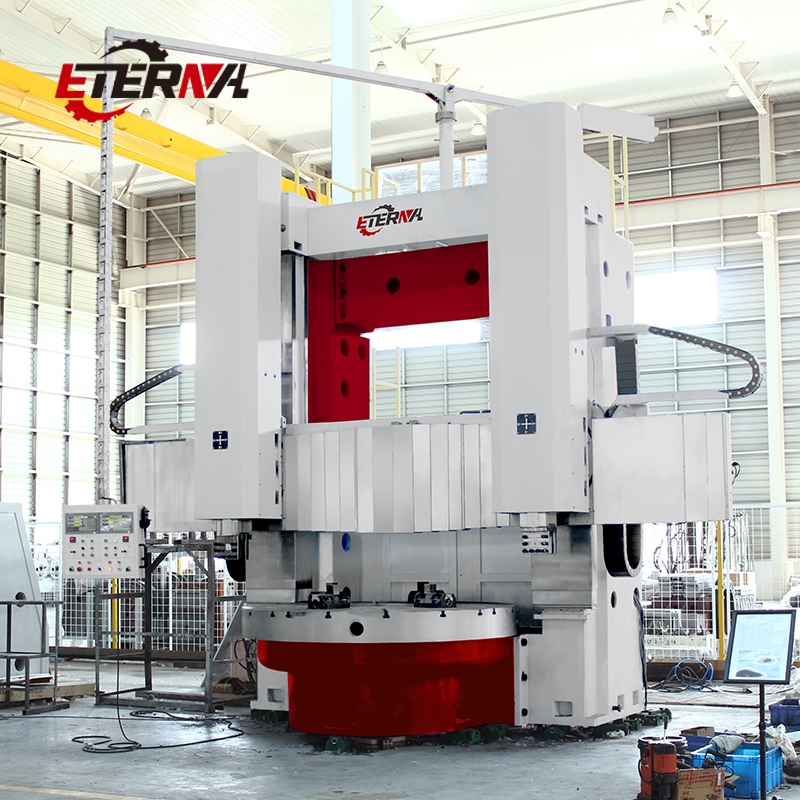

The basic part is whole casting structure, using high strength and low stress cast iron material, annealing after casting, aging treatment after rough machining. The column guide rail adopt grinding processing, beam guide and ram guide adopt grinding processing after the intermediate frequency quenching.

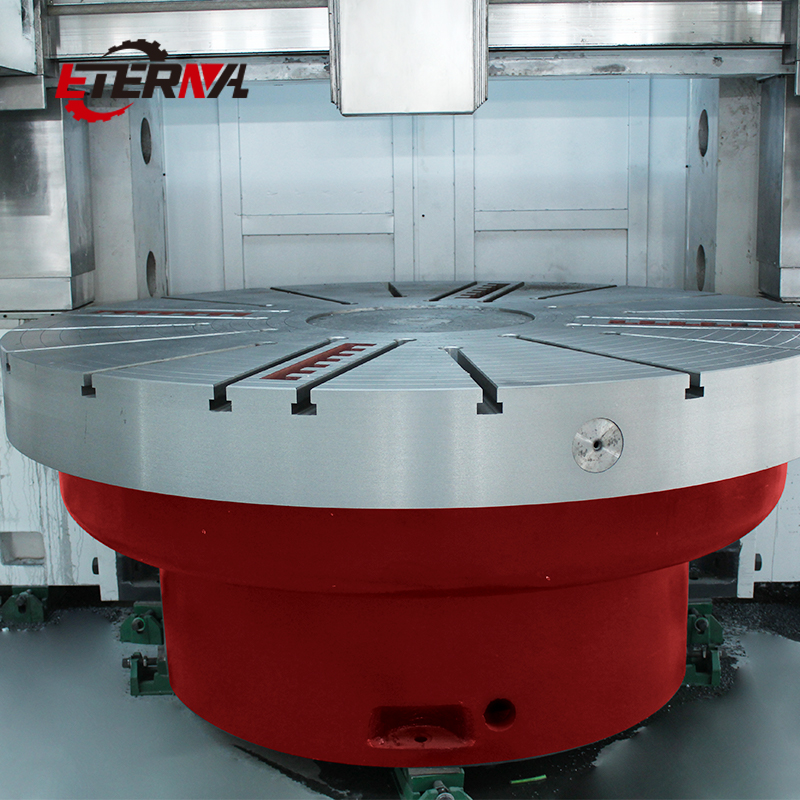

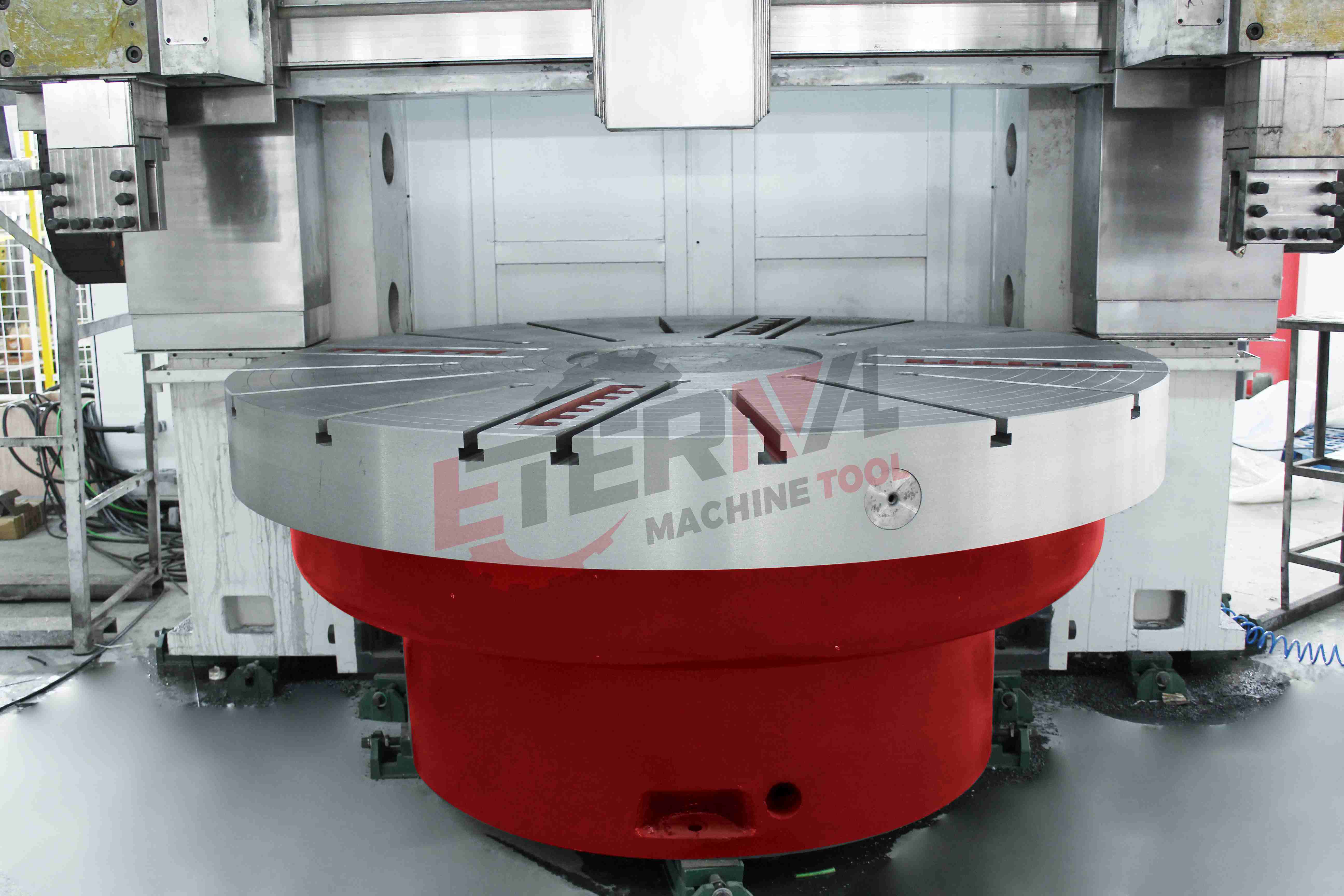

Main transmission is driven by AC motor, main drive speed changing with 16steps is controlled by solenoid valves. All gears in the gear-box adopt high frequency quenching process. Worktable can adopt sliding. Static pressure and rolling guide.

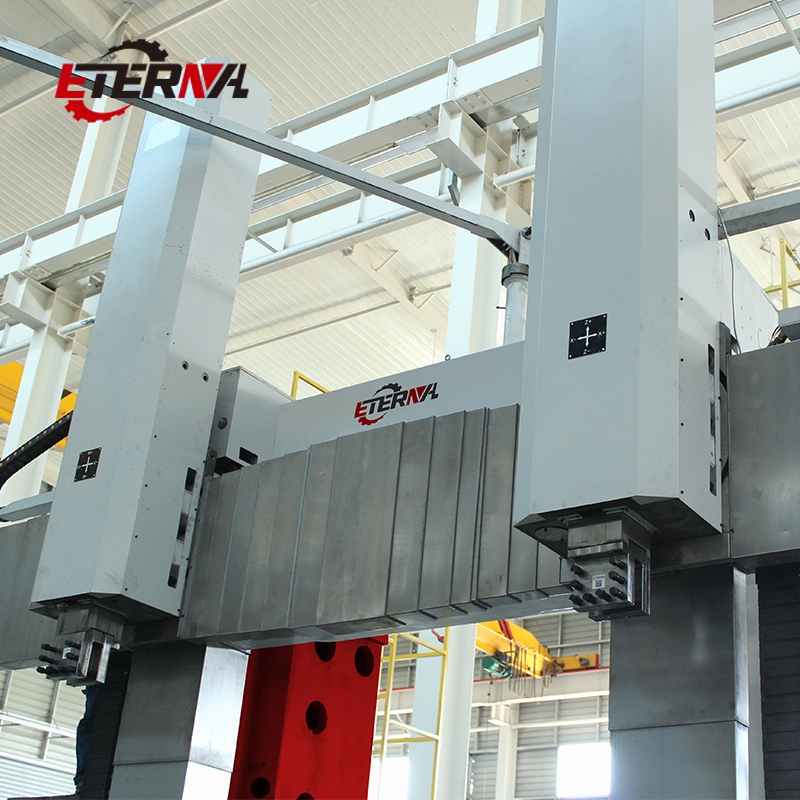

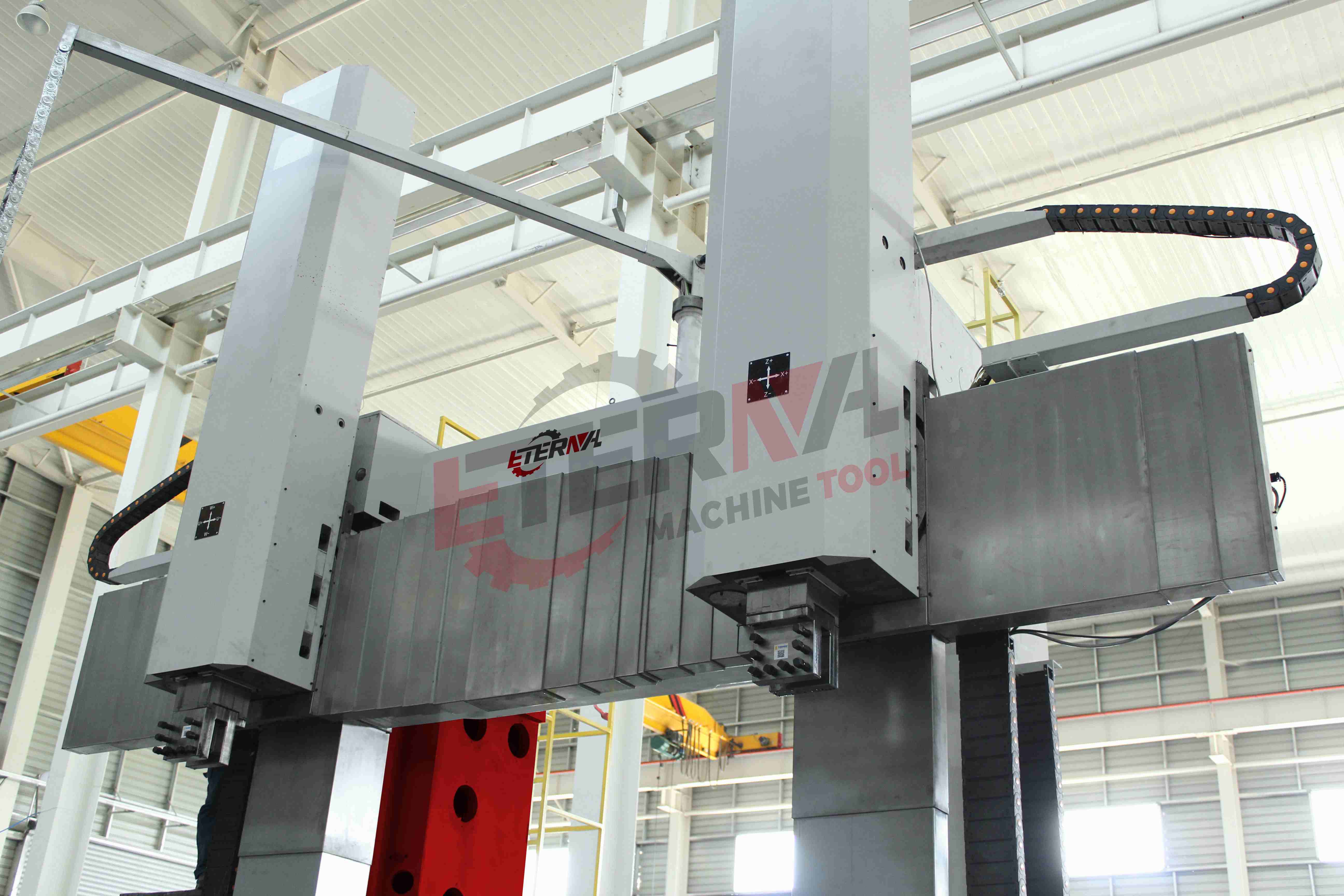

Horizontal and Vertical feed of vertical tool-post use the ball screw driving. driven by AC servo motor, so as to realize automation. Left and right tool-post adopt hydraulic balance, using sliding guideway in the horizontal and vertical direction, and the guideway paste high strength PTFE soft belt.
Hydraulic system is equipped with German flow transmission device, to guarantee oil flow stability for the worktable lubricating
The machine uses PLC control, high reliability, electrical wiring in accordance with the process.
Beautiful appearance, agreeableness, convenient operation and maintenance.
According to customer's requirement, we can provide motorized spindle grinding head, cooling device, DRO and etc.
Equipped with CNC system according to customer's need.

Applications

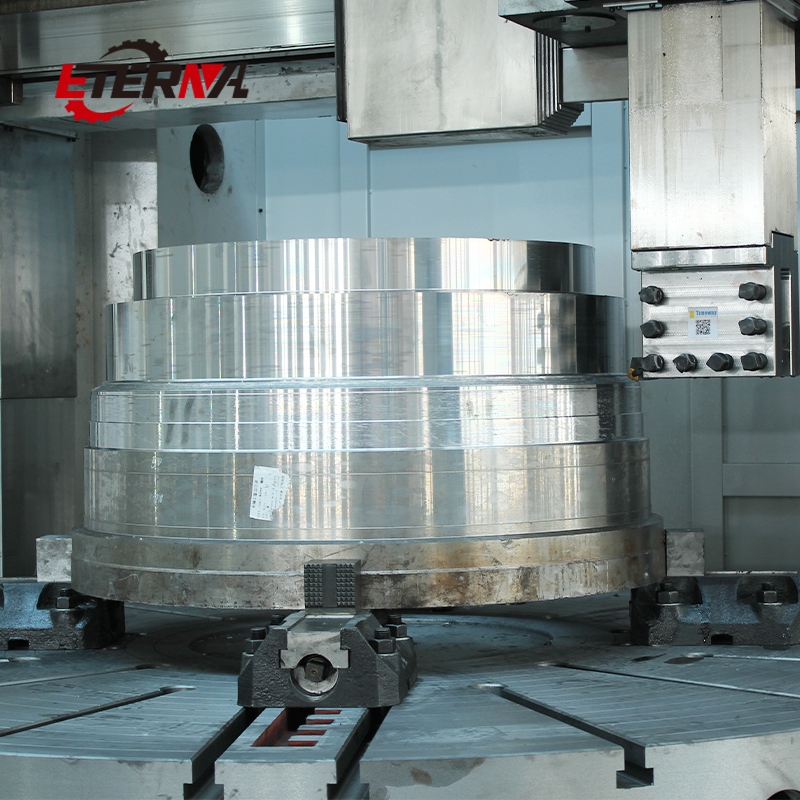

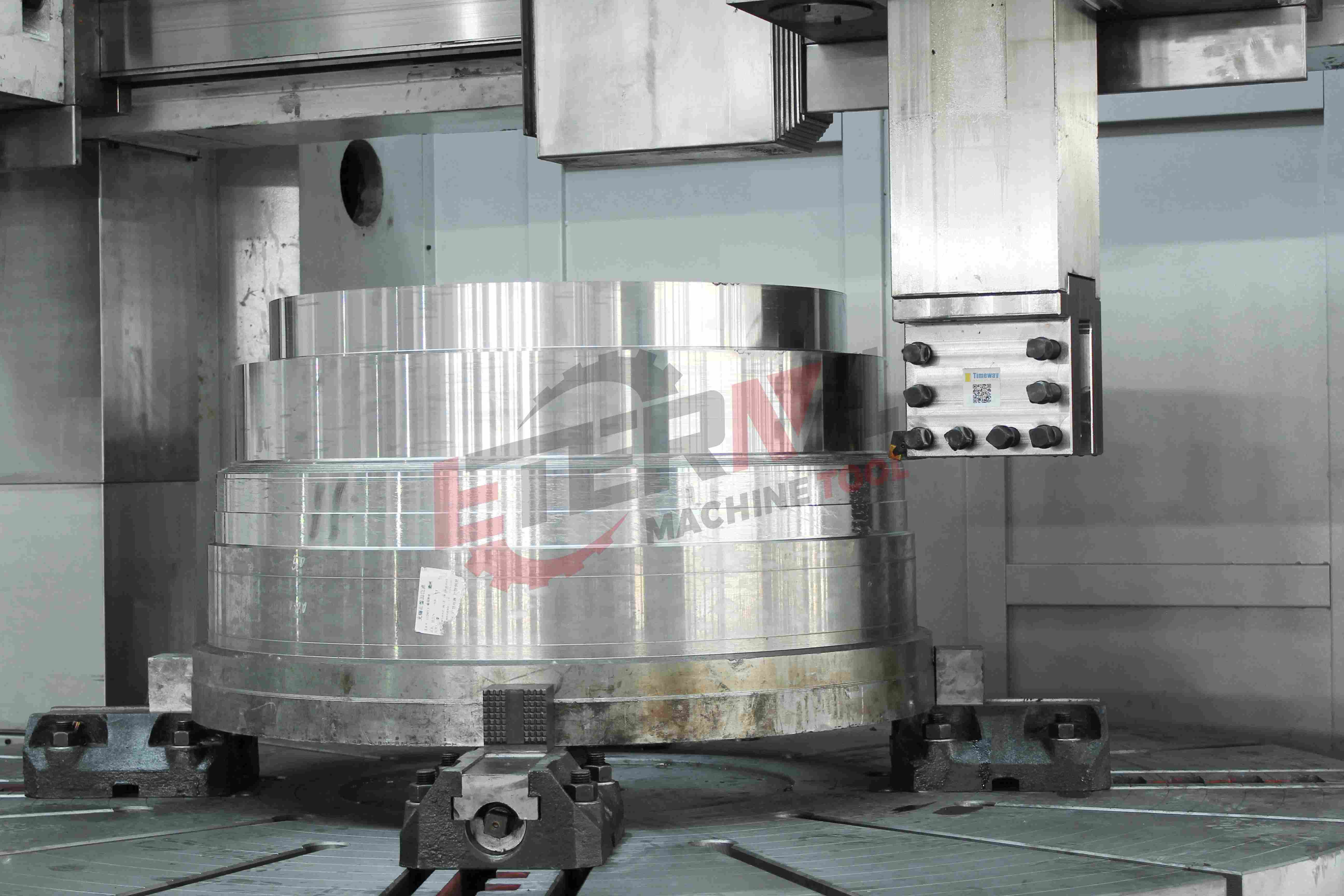

This machine is suitable for motor, water turbine, aviation, mining machinery, metallurgy and common machinery industries, and are used for rough and finish machining of inside and outside cylinder, cone surface.end face and grooving.

Specifications

Standard Accessories

※ Tool holder
※ Chuck & chuck jaws
※ Hydraulic system
※ Work lamp
※ Automatic lubrication system
※ Tools & tool box
※ Foundation bolts & level wedges
※ Operation manual

Optional Accessories

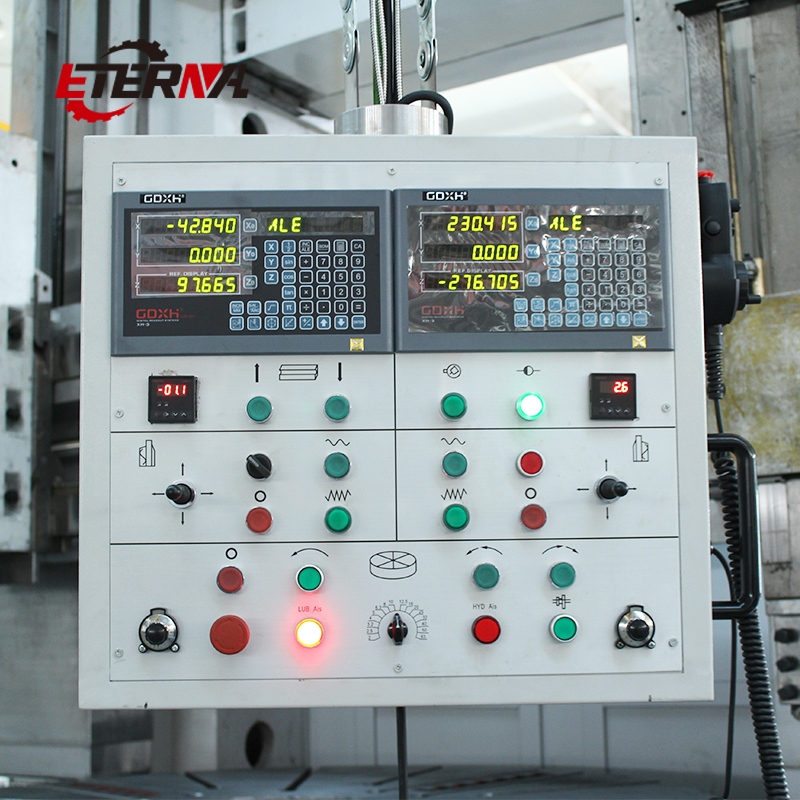

※ 2 axis digital readout

Competitive Advantage

Robust hydraulic system and automatic lubrication ensure stable heavy‑duty cutting and prolonged machine life.
Standard tool holder and chuck with jaws provide flexible workpiece clamping for various diameters.
Optional 2‑axis digital readout enhances positioning accuracy and operator convenience during setup.
Complete standard package (tools, foundation bolts, manual) reduces immediate auxiliary investment.
Vertical structure facilitates loading/unloading of large, heavy workpieces and improves chip evacuation.
