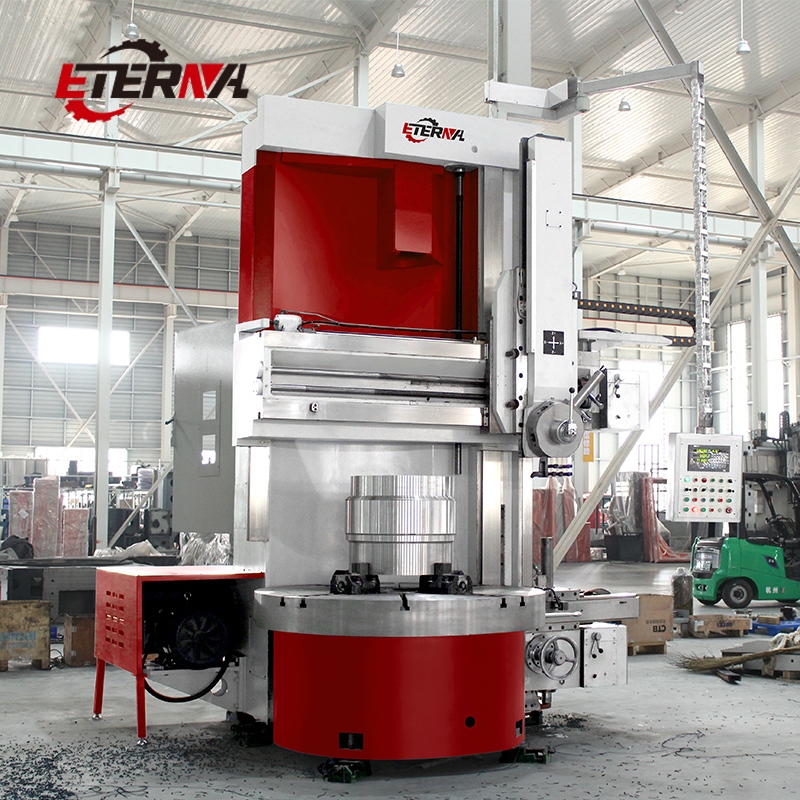

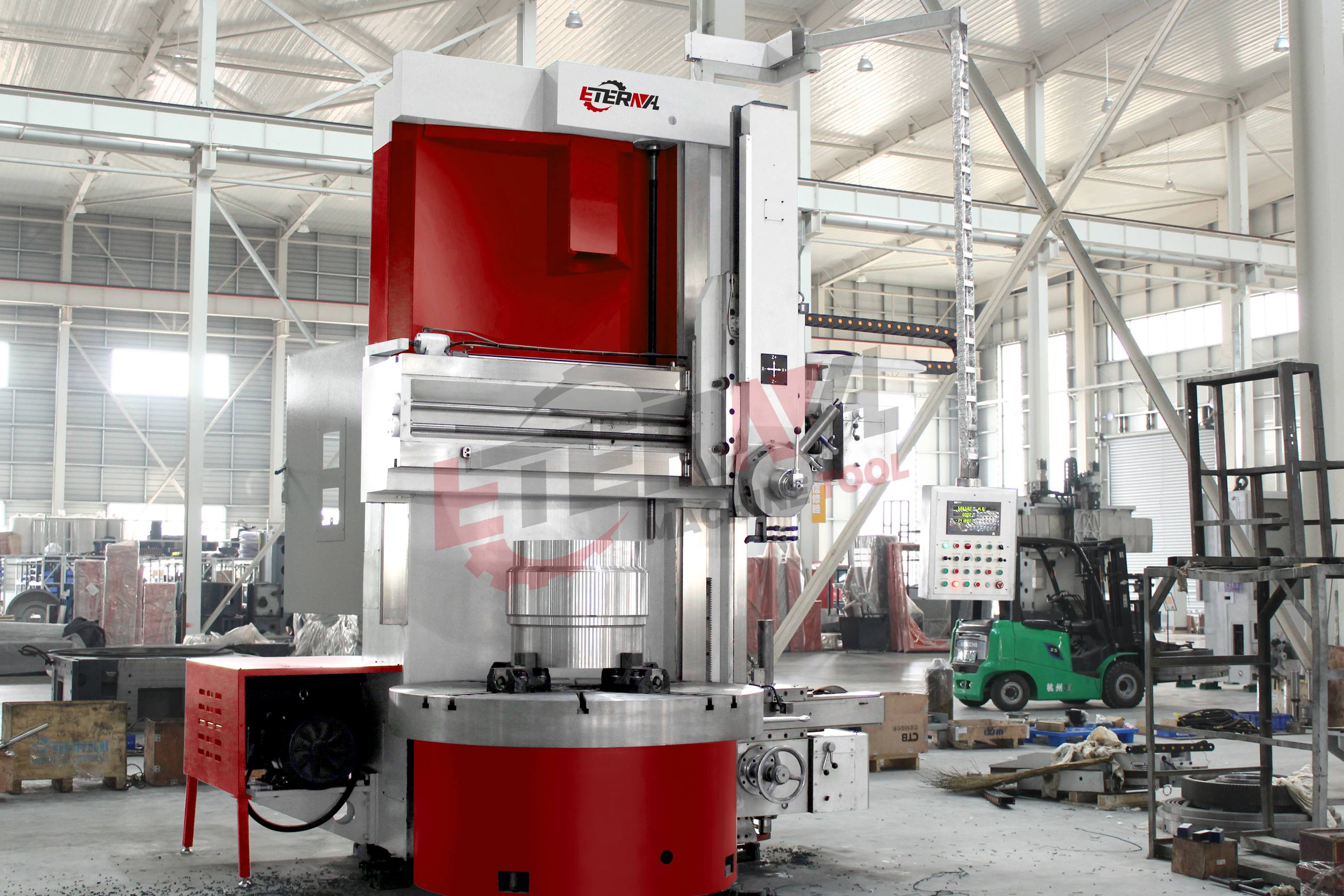

Quick Detail

Main standard: Five stations tool turret; Tool holder;Boring tool holder; Chuck & chuck jaws; Hydraulic system; Work lamp; Automatic lubrication system; Tools & tool box; Foundation bolts & level wedges; Operation manual
Optional: 2 axis digital readout

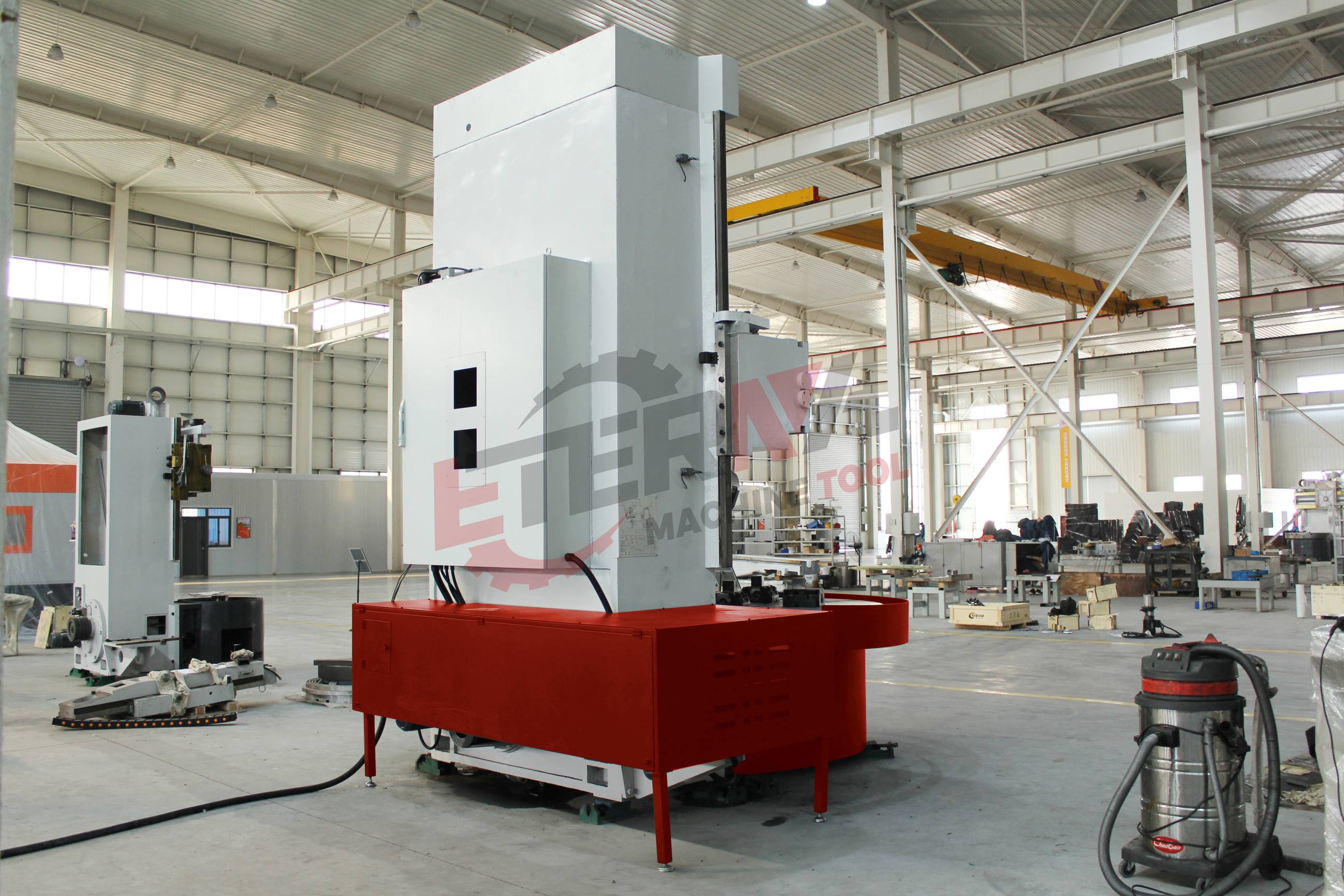

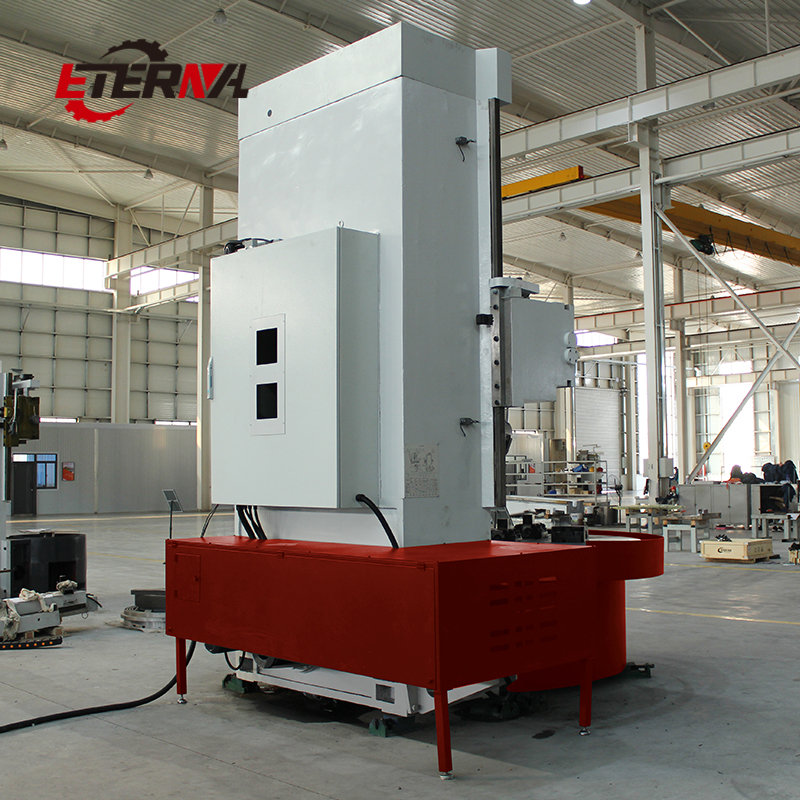

Description

The basic part is whole casting structure, using high strength and low stress cast iron material, annealing after casting. aging treatment after rough machining. The column guide rail adopt grinding processing. beam guide and ram guide adopt grinding processing after the intermediate frequency quenching.
Main transmission is driven by AC motor, main drive speed changing with 16steps is controlled by solenoid valves. All gears in the gear-box adopt high frequency quenching process.
Worktable adopts the type of rolling guideway, so large loading capacity of worktable and high turning precision.

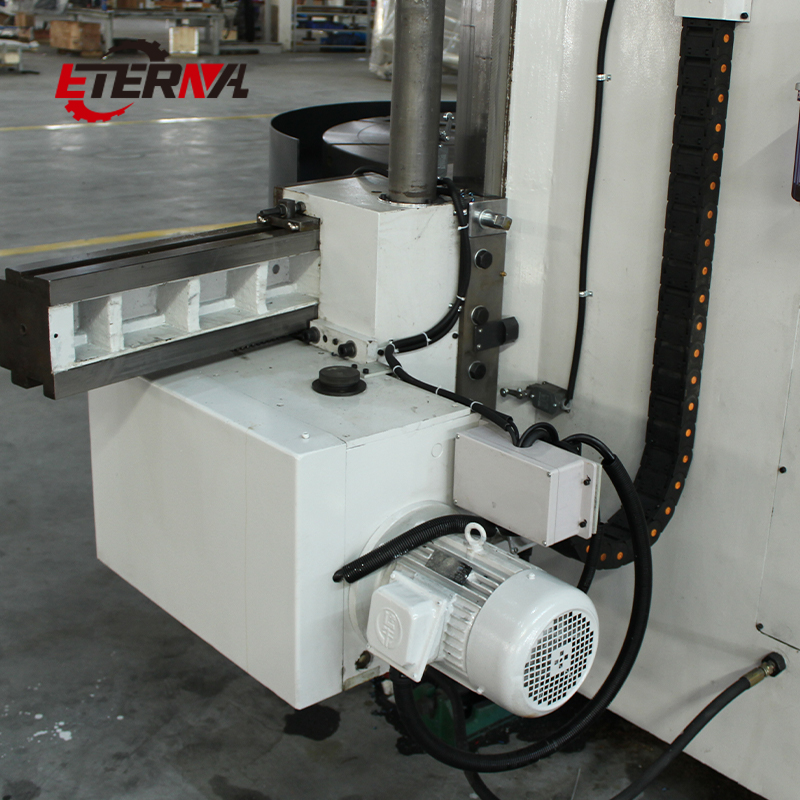

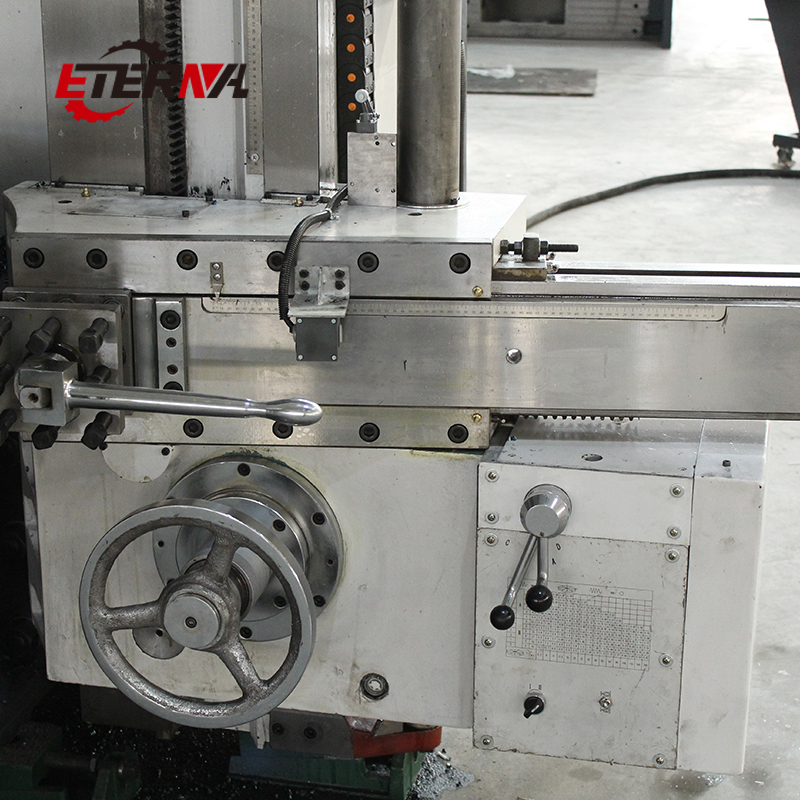

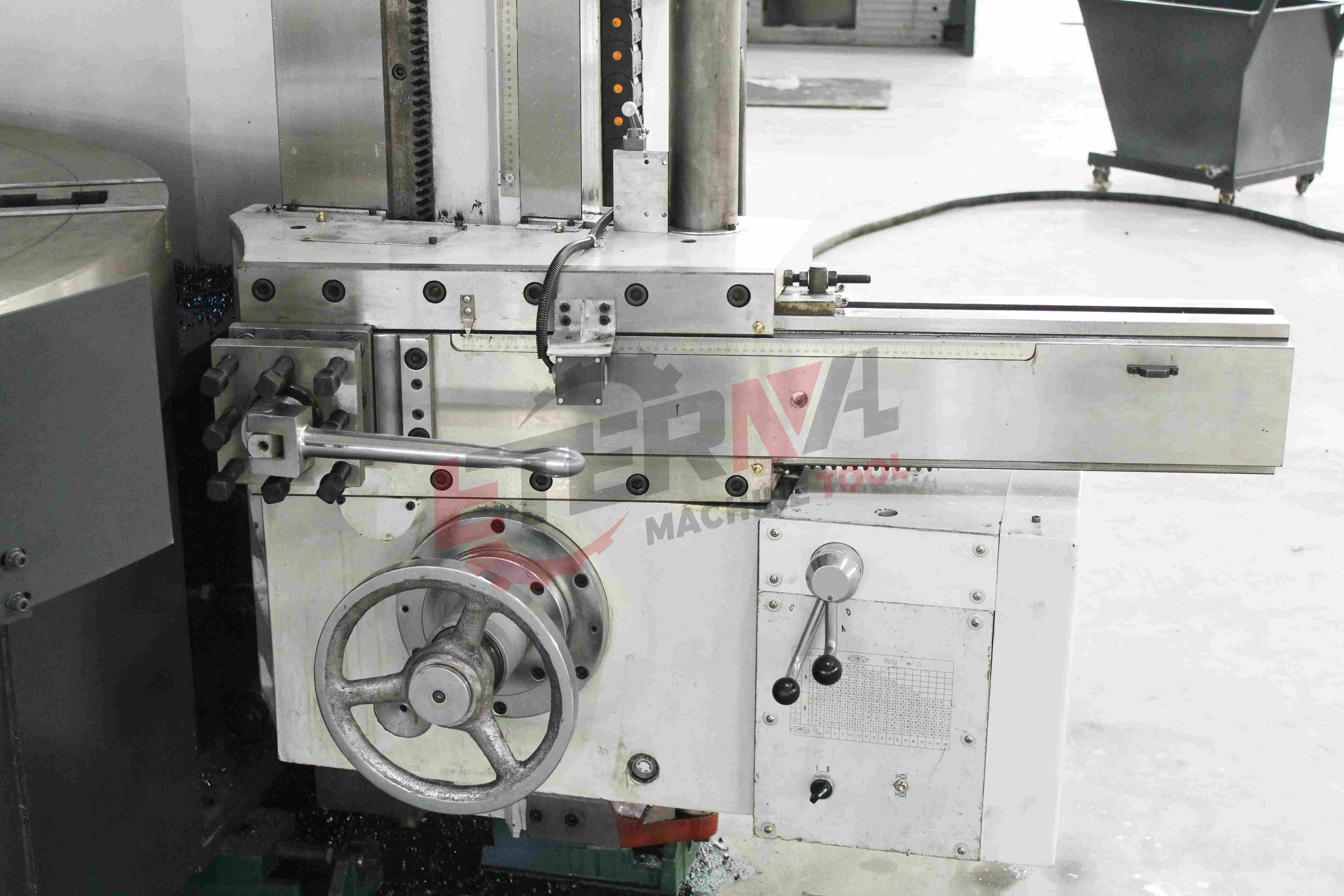

Vertical tool -post is equipped with five station tool-post, and adopts high precision rat-gear disk positioning.The tool-posts adopt hydraulic balance. Horizontal and Vertical feed of vertical tool-post use the sliding screw driving. The tool-post is driven by 3-ph AC motor, the type of guideway is sliding guide rail, and the guideway paste high strength PTFE soft belt.
Hydraulic system is equipped with German traffic transmission device, to guarantee oil flow stability for the worktable lubricating.
The machine uses PLC control, high reliability, electrical wiring in accordance with the process.
Beautiful appearance, agreeableness, convenient operation and maintenance.
According to customer's special requirement, we can provide digital display device, T-type ram and square ram.

Applications

This machine is suitable for mechanical processing of all industries. It can be used for rough and finish processing of inside and outside cylinder, cone surface, end face, grooving and cutting. as well as boring internal Hole

Specifications

Standard Accessories

※ Five stations tool turret
※ Tool holder
※ Boring tool holder
※ Chuck & chuck jaws
※ Hydraulic system
※ Work lamp
※ Automatic lubrication system
※ Tools & tool box
※ Foundation bolts & level wedges
※ Operation manual

Optional Accessories

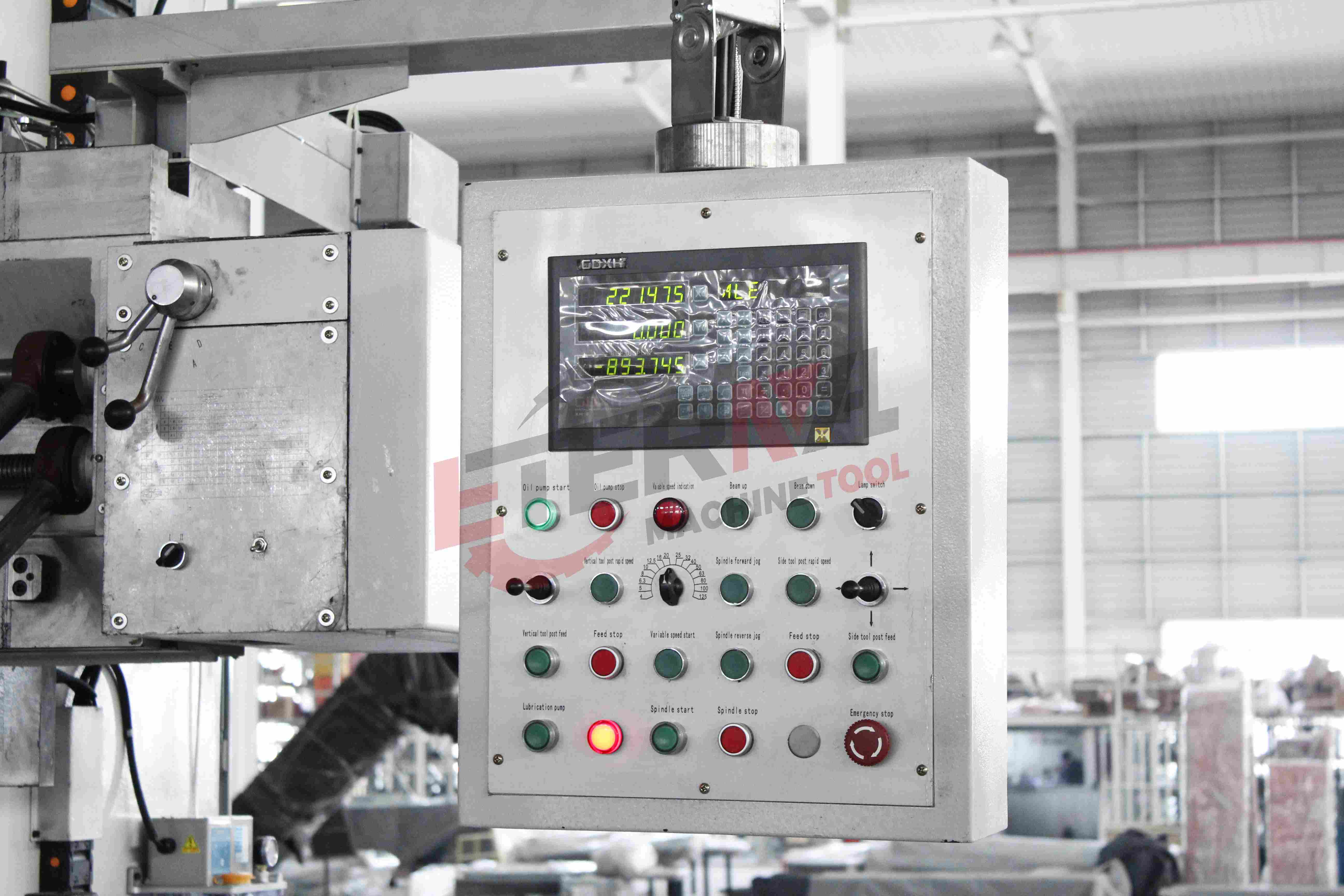

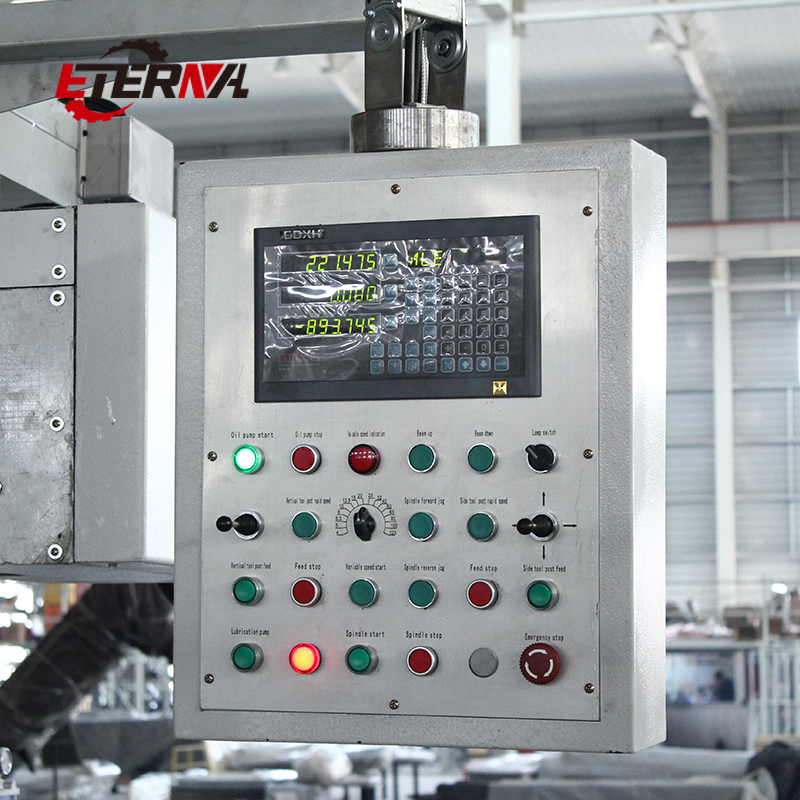

※ 2 axis digital readout

Competitive Advantage

Equipped with a 5‑station automatic tool turret, enabling rapid tool indexing and reducing non‑cutting time for batch production.
Built‑in hydraulic system and automatic lubrication ensure stable clamping, smooth operation, and low maintenance.
Standard tool holders and boring tool holder provide flexibility for both outer turning and internal boring operations.
Optional 2‑axis digital readout enhances positioning accuracy and ease of manual operation.
Rugged vertical structure offers excellent rigidity and chip evacuation, ideal for heavy‑duty cutting.
