Quick Detail

Main standard: Resin sand casting; X, Y, Z rails adopts imported linear guideway; X, Y, Z rails adopt stainless steel telescopic cover; Standard with belt driven spindle, optional for direct driven spindle; Taiwan production pneumatic cylinder; Taiwan ATC, carousel type and disc type are available as option; Imported bearings for leadsrews; Import coupling; Headstock balancing system have heavy casting or nitrogen balance system as option; Full enclosure; Rigid tapping; Spindle center air blast; Work lamp; Pilot lamp; USB and LAN interface; Manual pulse generator (MPG); Centralized automatic lubrication system; Cooling system; Heat exchanger for electrical cabinet; Leveling blocks & bolts; Toolbox and tools; CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
Optional: The 4th axis wiring; NC rotary table; Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm); Circular Coolant Nozzle; Coolant through spindle (CTS); Spindle oil cooler; Air conditioner (A/C) for electrical cabinet; Auto. Tool length measurement system; Auto. Workpiece measurement systems; Screw type chip conveyor; Chain type chip conveyor; High pressure water flush system; Safety door; Oil skimmer.

Description

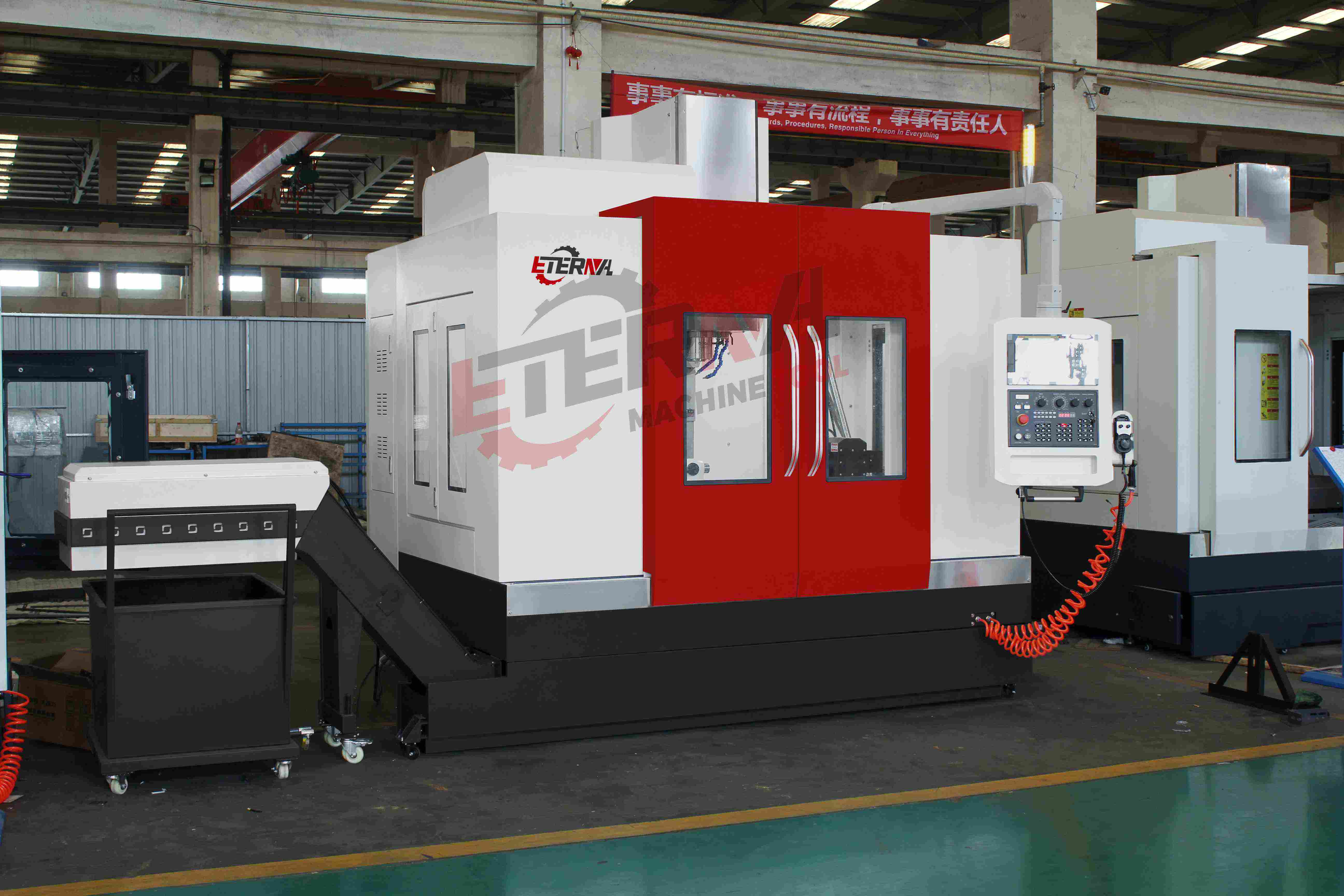

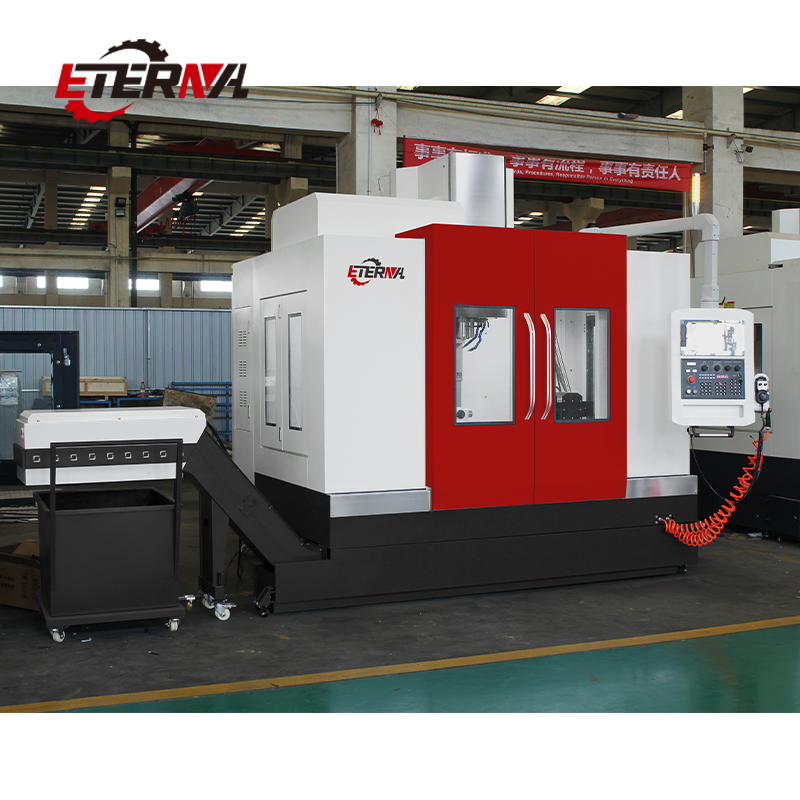

The machine is a high-performance vertical machining center built on resin sand casting structure, ensuring excellent rigidity, vibration damping, and long-term stability. All linear axes are guided by imported linear guideways, delivering high positioning accuracy and smooth movement, with stainless steel telescopic covers effectively protecting the guideways from contamination. The machine features a belt-driven spindle as standard, with optional direct-driven spindle speeds of 10,000, 12,000, or 15,000 rpm to suit various machining demands. The pneumatic cylinder and ATC (automatic tool changer) are sourced from Taiwan, with carousel or disc-type magazines available. Key transmission components, including leadscrew bearings and couplings, are imported for durability and precision. The headstock can be equipped with either a heavy counterweight or nitrogen balancing system. Full enclosure ensures safe operation, while rigid tapping, spindle center air blast, work lamp, pilot lamp, USB/LAN interfaces, and MPG enhance usability. Centralized automatic lubrication, cooling system, and heat exchanger for the electrical cabinet are standard, along with leveling blocks, toolbox, and tools. The CNC controller can be selected from KND, GSK, HNC, SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.

Applications

Automotive parts machining, Mold and die manufacturing, Aerospace components, General mechanical parts production, Precision electronics housings, Medical equipment parts, Hydraulic and pneumatic components

Specifications

Standard Accessories

※ Resin sand casting
※ X, Y, Z rails adopts imported linear guideway
※ X, Y, Z rails adopt stainless steel telescopic cover
※ Standard with belt driven spindle, optional for direct driven spindle
※ Taiwan production pneumatic cylinder

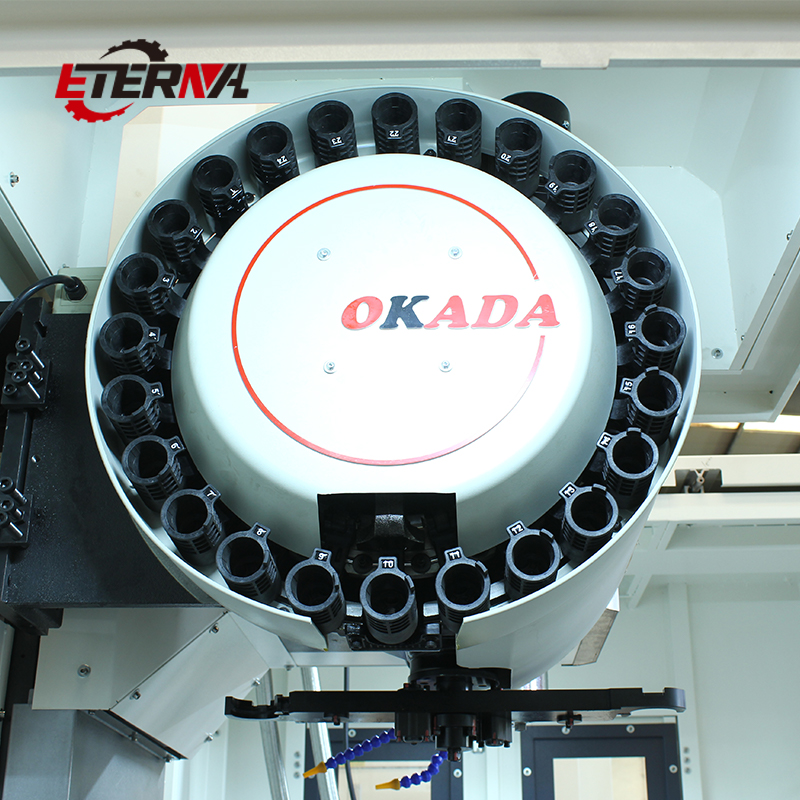

※ Taiwan ATC, carousel type and disc type are available as option
※ Imported bearings for leadsrews
※ Import coupling
※ Headstock balancing system have heavy casting or nitrogen balance system as option
※ Full enclosure
※ Rigid tapping
※ Spindle center air blast
※ Work lamp
※ Pilot lamp
※ USB and LAN interface
※ Manual pulse generator (MPG)
※ Centralized automatic lubrication system
※ Cooling system
※ Heat exchanger for electrical cabinet
※ Leveling blocks & bolts
※ Toolbox and tools

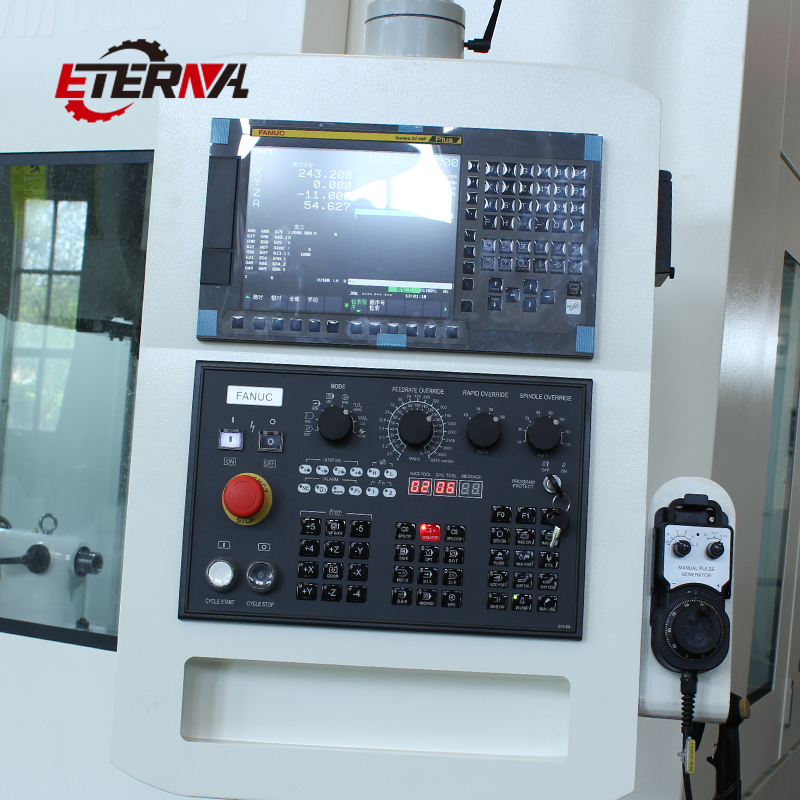

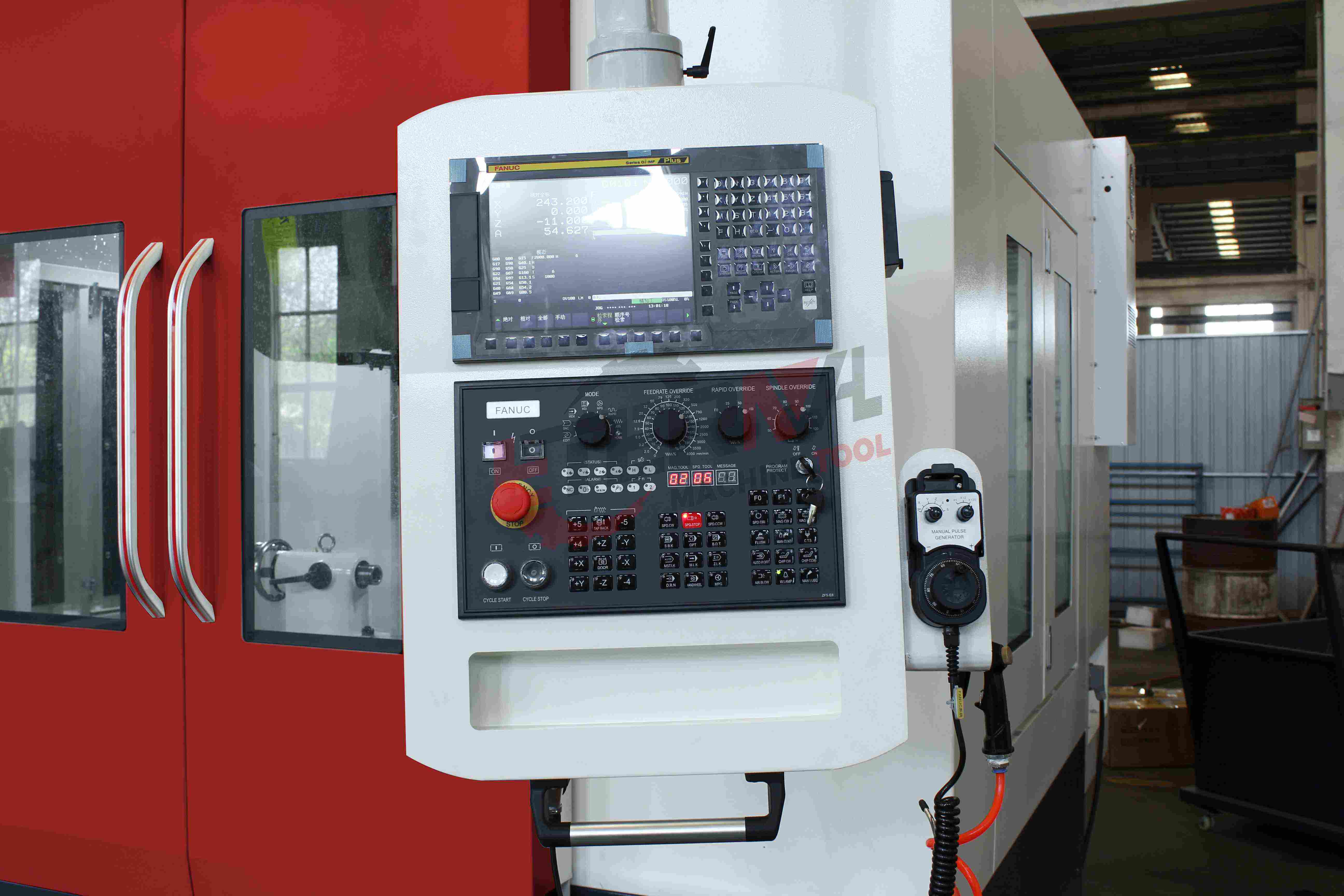

※ CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.

Optional Accessories

※ The 4th axis wiring

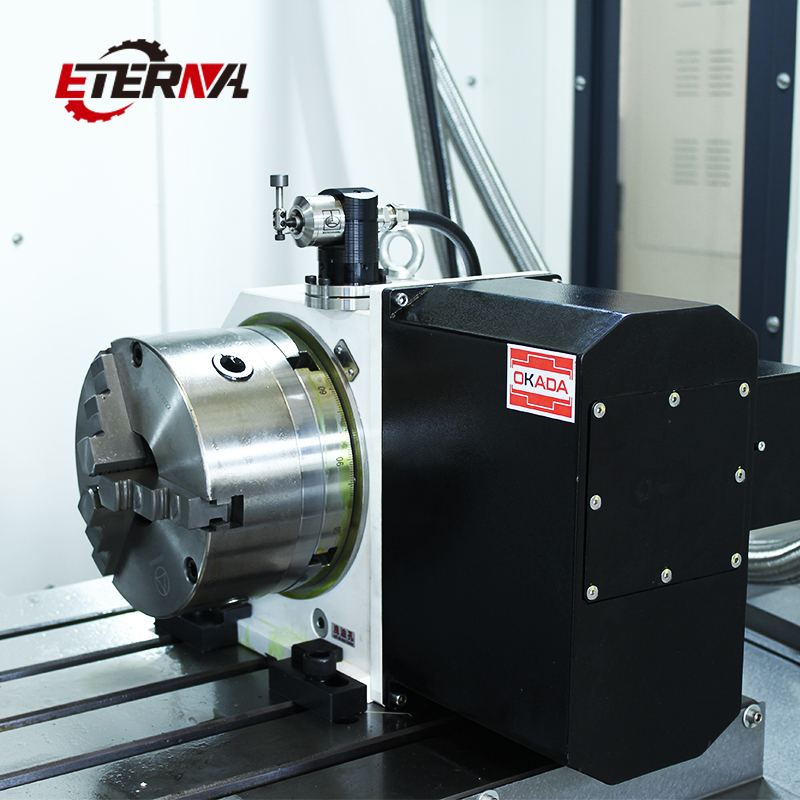

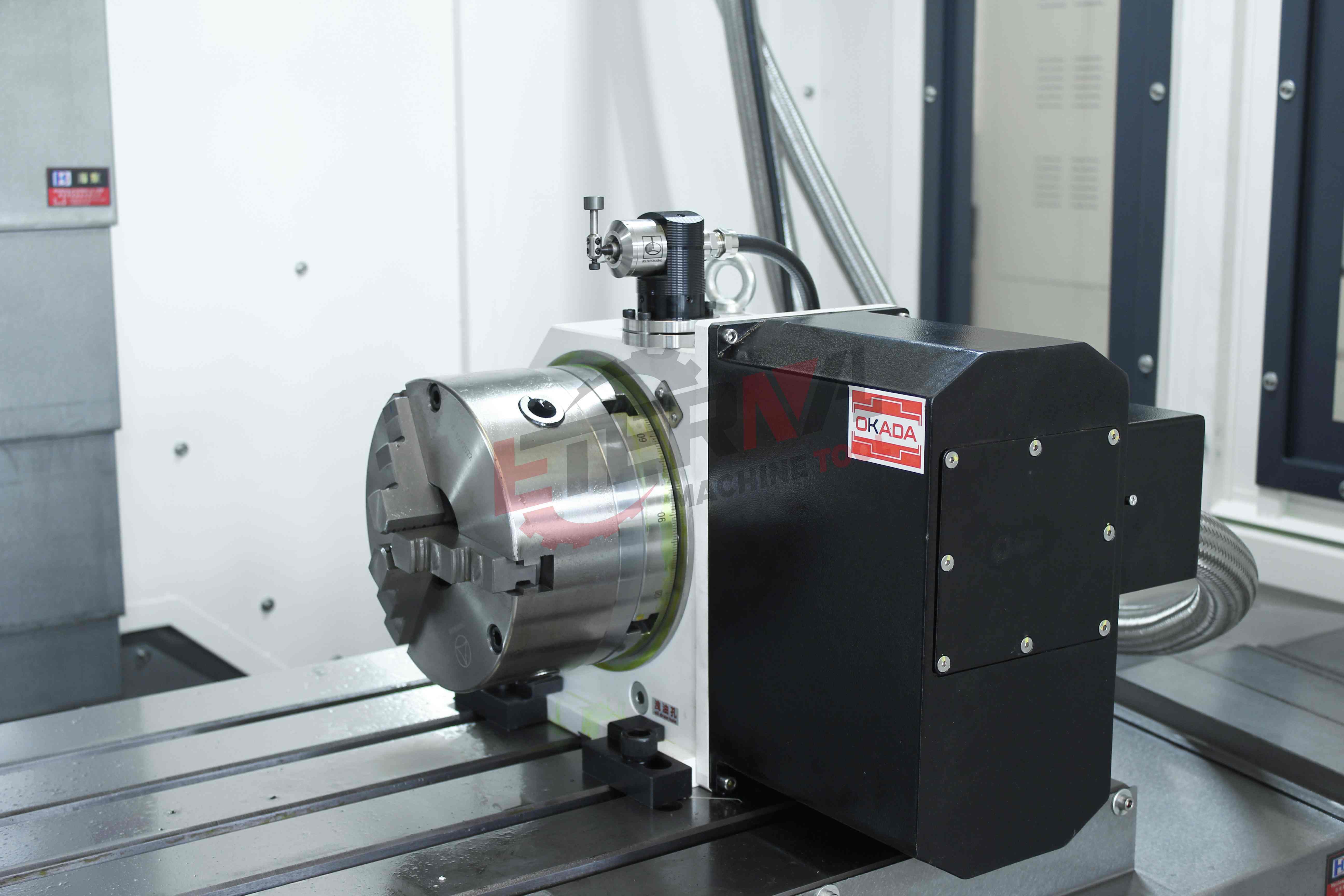

※ NC rotary table
※ Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm)
※ Circular Coolant Nozzle
※ Coolant through spindle (CTS)
※ Spindle oil cooler
※ Air conditioner (A/C) for electrical cabinet

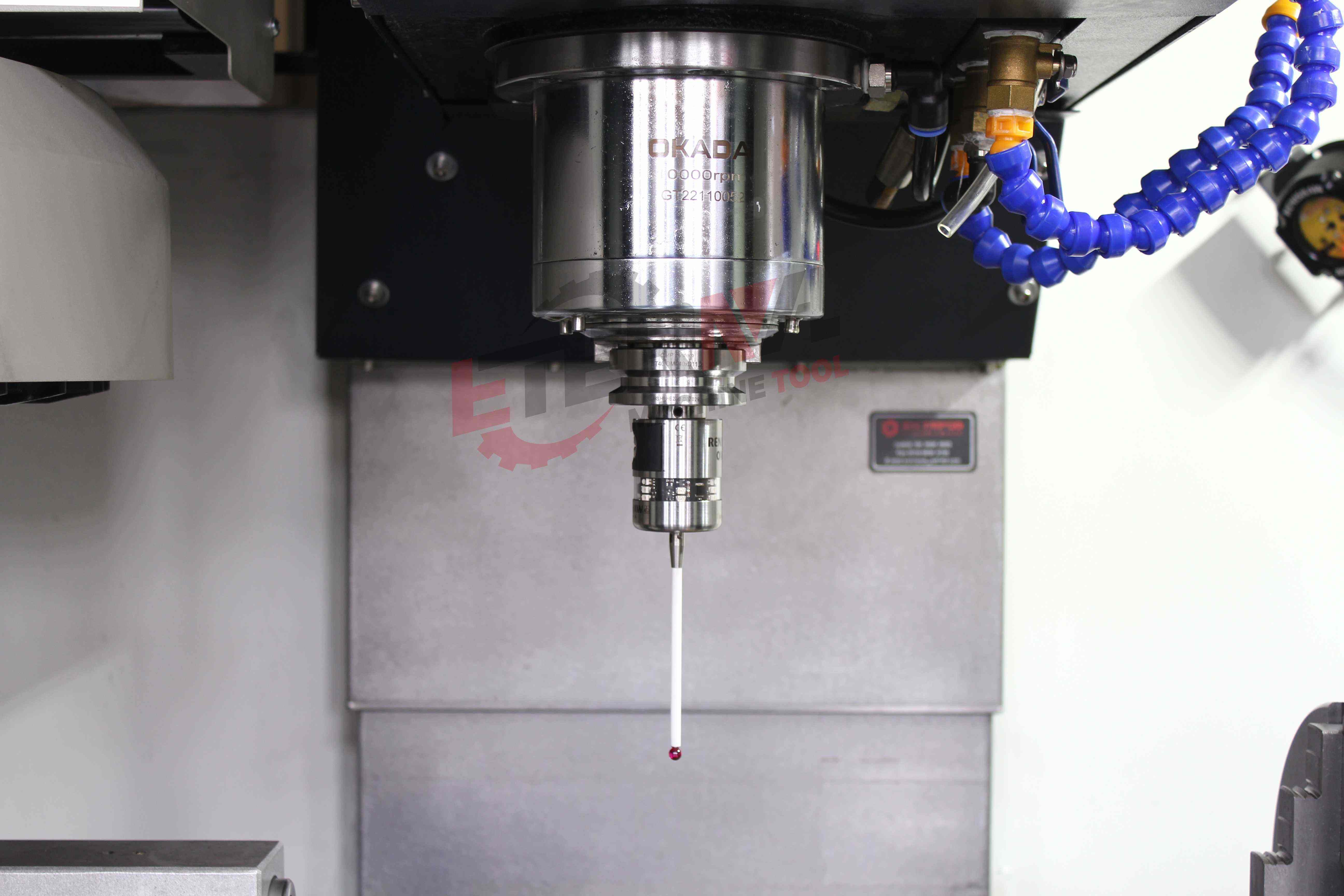

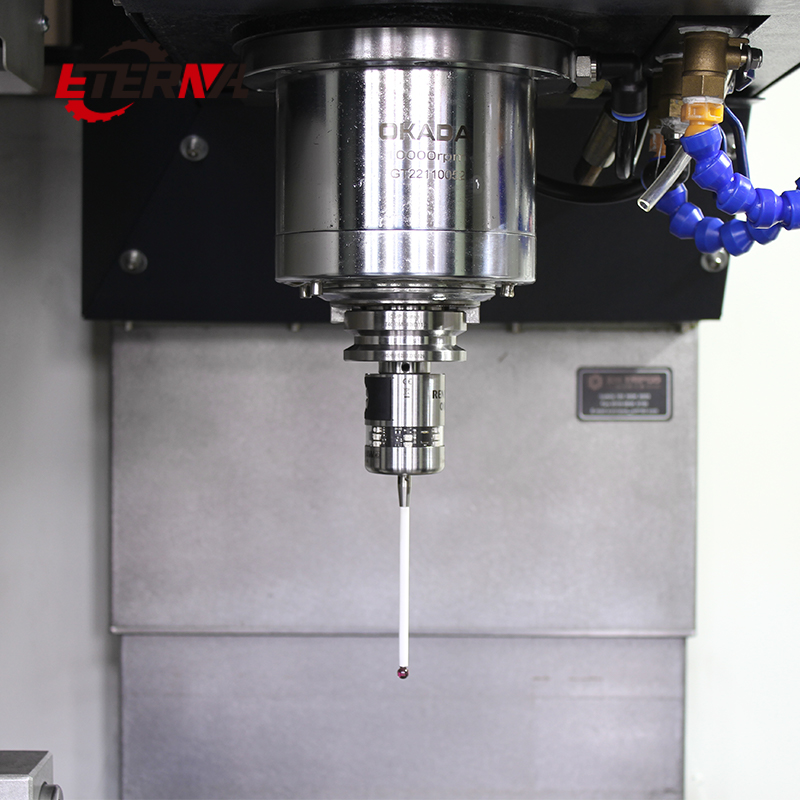

※ Auto. Tool length measurement system
※ Auto. Workpiece measurement systems
※ Screw type chip conveyor
※ Chain type chip conveyor
※ High pressure water flush system
※ Safety door
※ Oil skimmer

Competitive Advantage

Superior rigidity and thermal stability from heavy resin sand castings.
High precision and reliability from imported guideways, bearings, and couplings.
Flexible spindle options (belt or direct-drive) to balance cost and performance.
Versatile ATC types and controller brands to meet diverse customer preferences.
Comprehensive standard features reduce additional investment and setup time.
Optional accessories like 4th axis, CTS, tool/workpiece measurement, and chip conveyors allow customized automation upgrades.
