Quick Detail

Main standard: GSK CNC system; Hydraulic chuck; Electric tools turret; Electronic handwheel; Lubrication system; Cooling system ; Nitrogen balancer; Work lamp ; Pilot lamp; Protection guard; Heat exchanger; Leveling blocks & tolls; Tools & tool-box; Operation manuals
Optional: FANUC CNC system; SIEMENS CNC system; Air conditioner; Chain type chip conveyor

Description

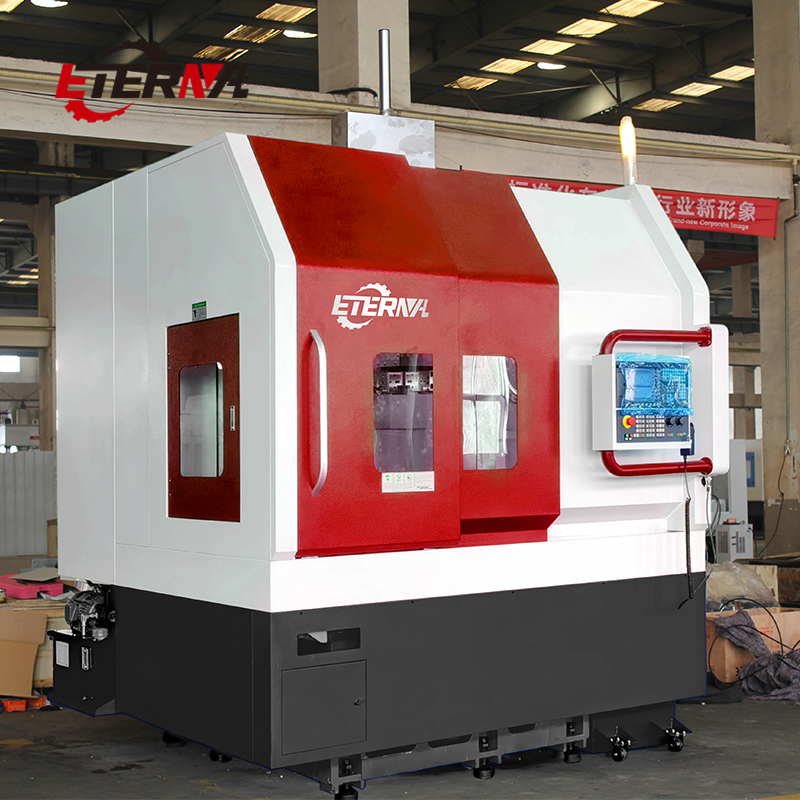

Single-column vertical guide rail structure, vertical column, base and sliding seat are all made of high-grade gray cast iron. Column and slide rail are both high-frequency quenching, and the moving surface of the guide rail is plasticized to ensure long-term use,stability and accuracy retention.
The machine spindle adopts a large torque spindle servo motor, which is suitable for strong cutting; it is also suitable for semi-finishing and finishing of parts. The spindle adopt imported NSK bearings with high rotation precision, low heat generation and low noise.
The X/Z axis feed is automatically fed by the servo motor. The Z-axis is nitrogen balanced, and the structure is simple and reliable, and the failure rate is low.
The X/Z axis adopts precision ball screw and imported screw special bearings to meet the requirements of high precision and high rigidity cutting.
The spindle bearing of the machine is lubricated by thin oil, and the guide rail is lubricated by electric lubricating oil pump.

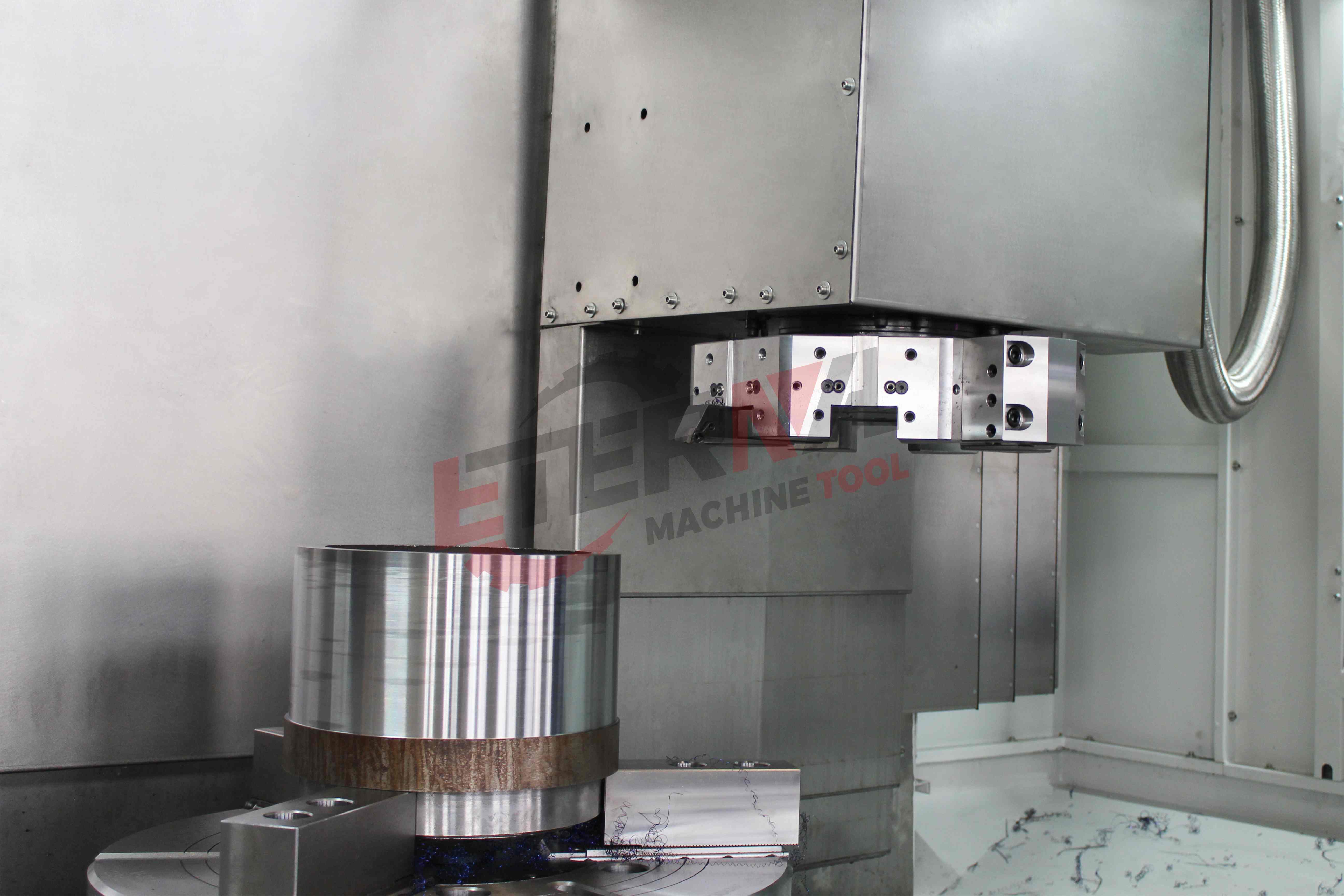

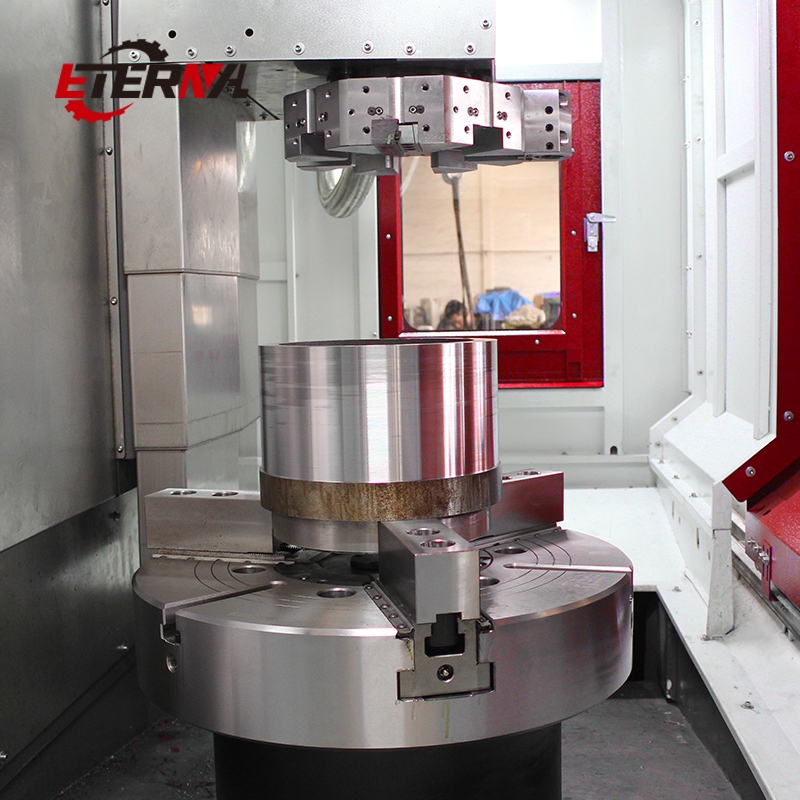

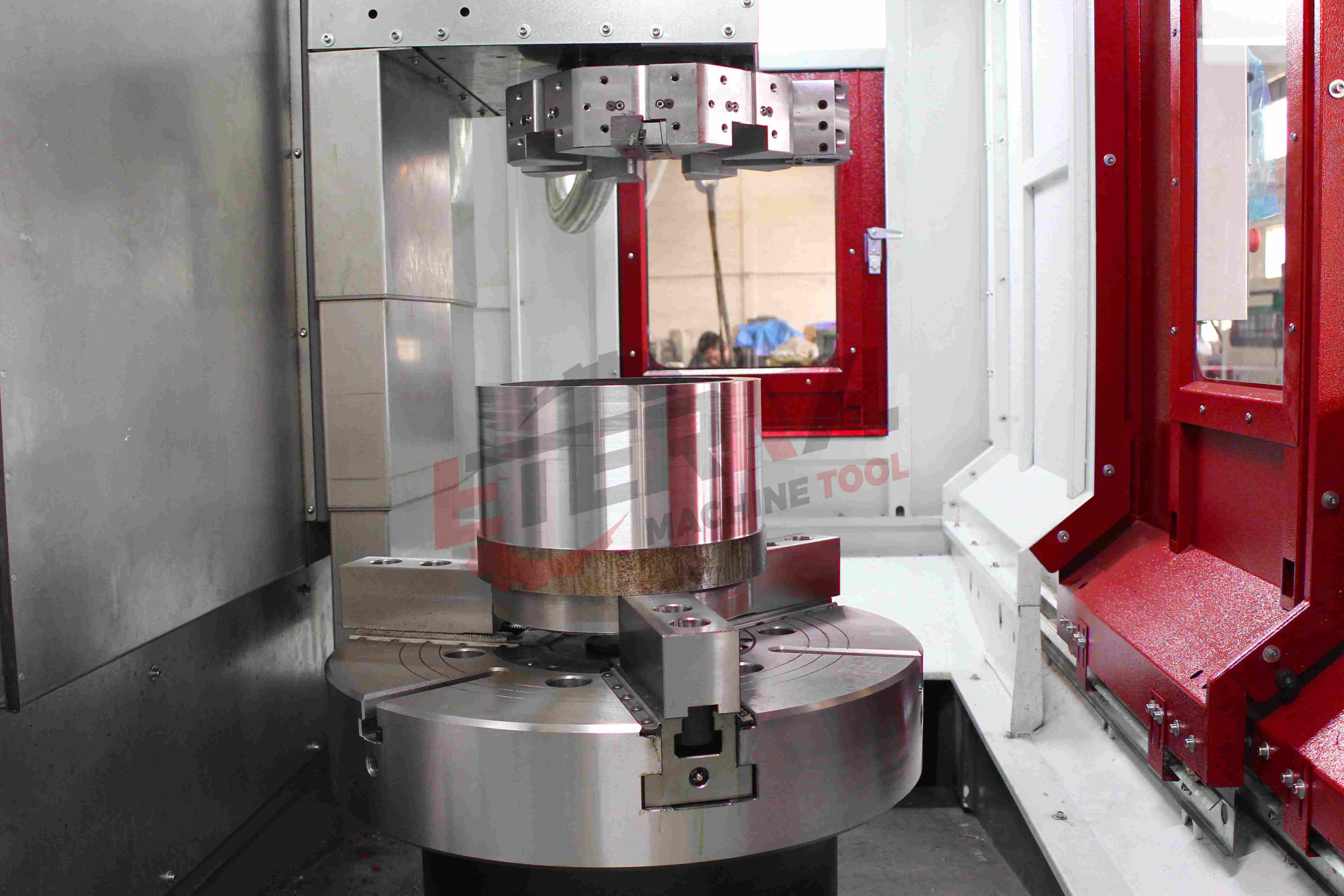

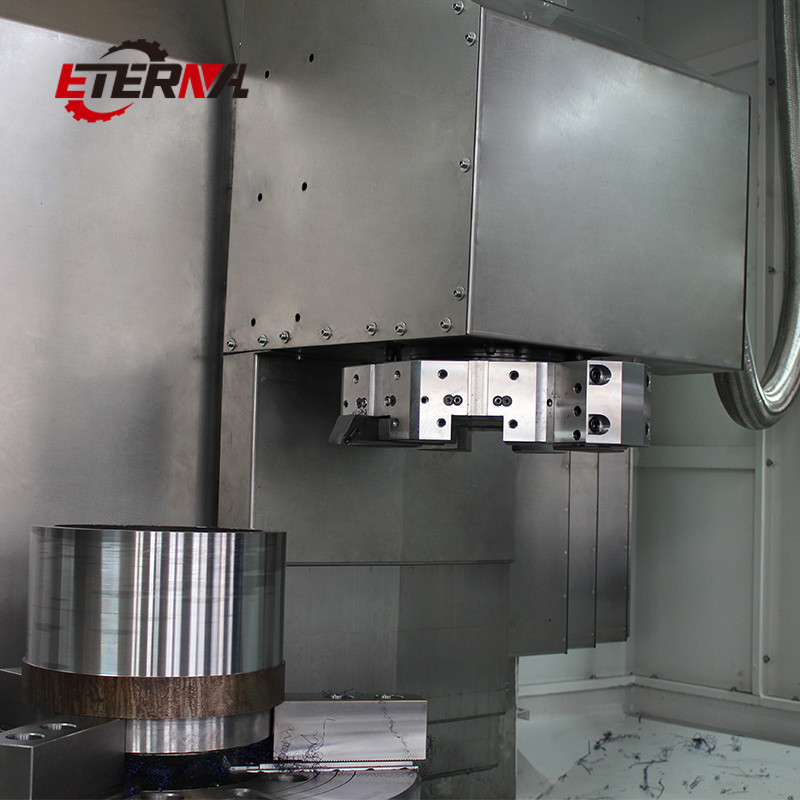

The machine tool post adopts the electric tool post or gang type tool plate, with high accuracy and efficiency.

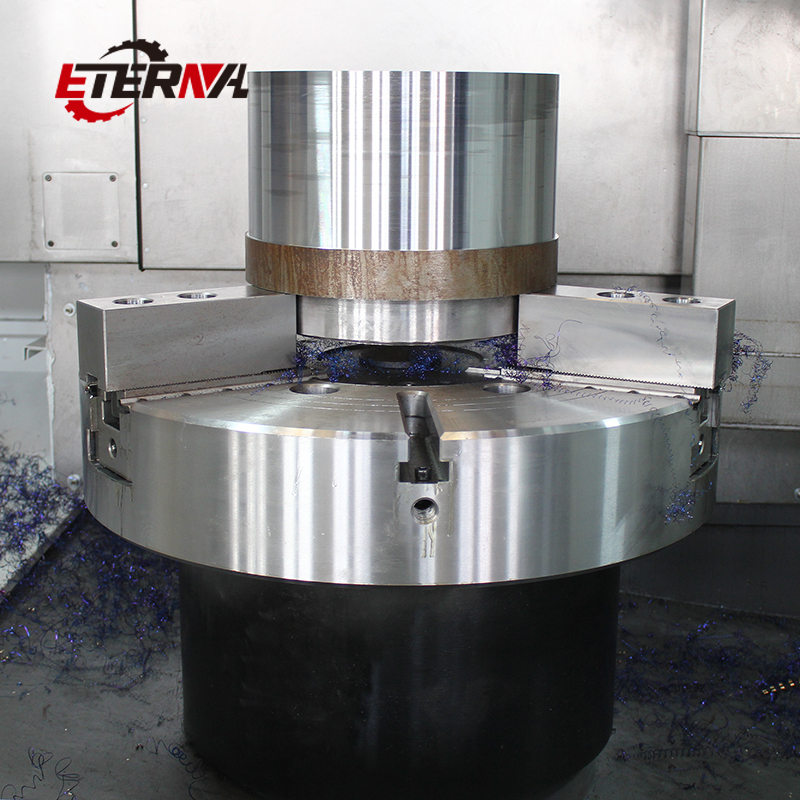

Special tooling,hydraulic chuck, cooling pump, chip conveyor and chip flushing device can be configured according to user requirements.

Applications

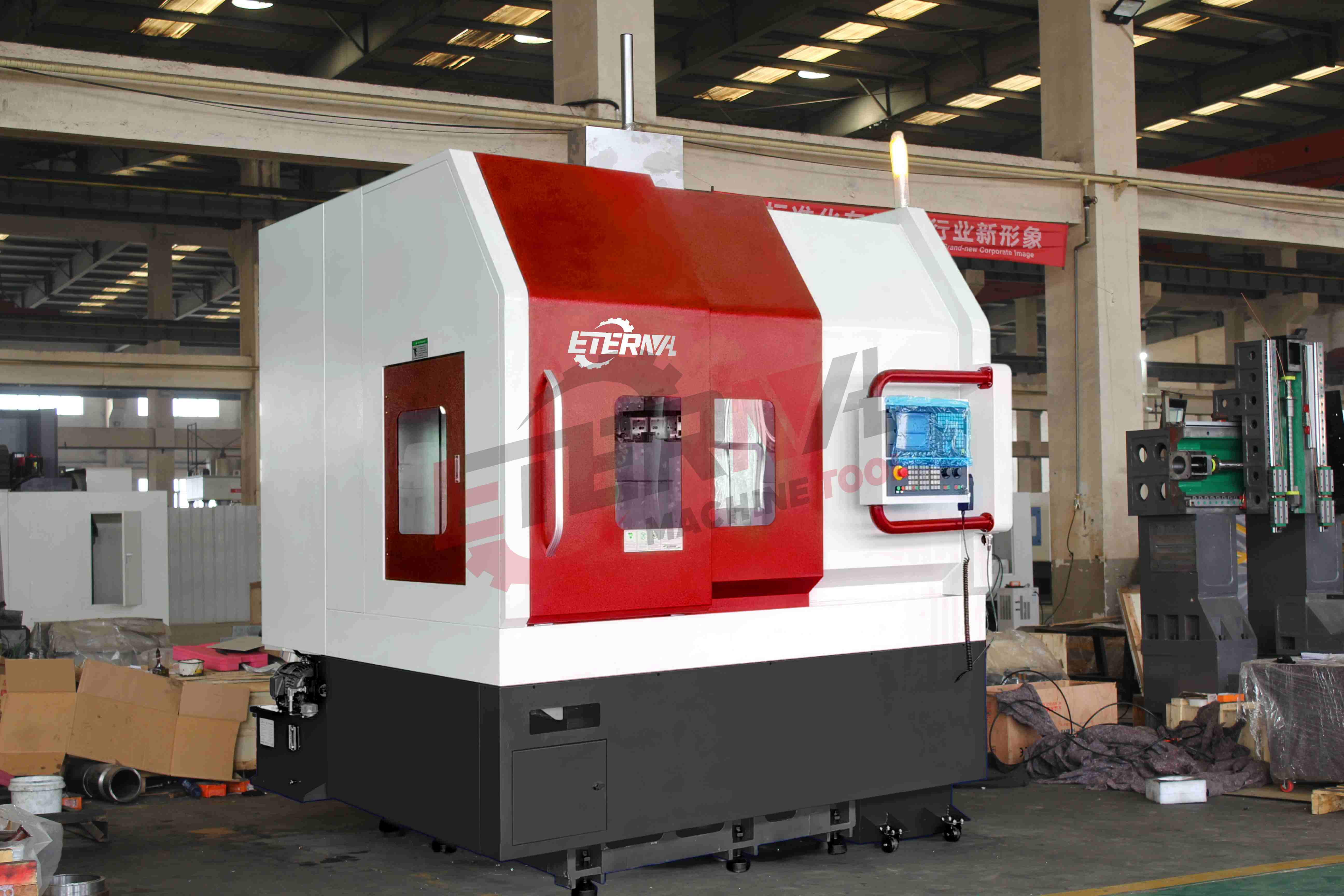

VTC series CNC vertical lathe is an automatic CNC machining machine for machining the inner and outer cylindrical surface, cone surface,end surface, groove and chamfer of the parts. The machine is especially suitable for processing of plate type workpiece like the vehicle brake hub,wheel drums, clutch platens, flywheel casings, etc.

Specifications

Standard Accessories

※ GSK CNC system
※ Hydraulic chuck
※ Electric tools turret
※ Electronic handwheel
※ Lubrication system
※ Cooling system
※ Nitrogen balancer
※ Work lamp
※ Pilot lamp
※ Protection guard
※ Heat exchanger
※ Leveling blocks & tolls
※ Tools & tool-box
※ Operation manuals

Optional Accessories

※ FANUC CNC system

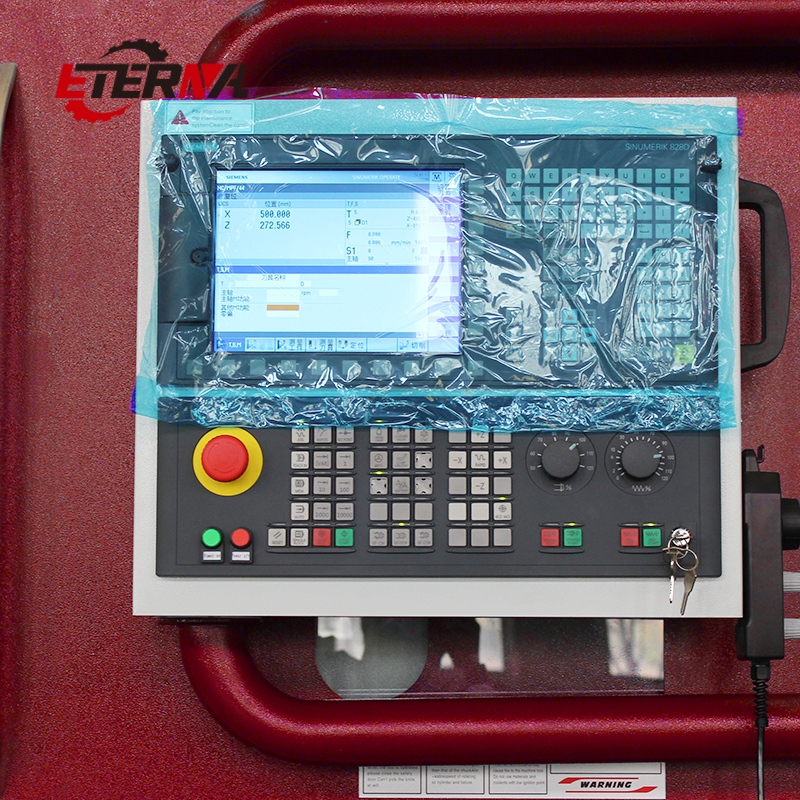

※ SIEMENS CNC system
※ Air conditioner
※ Chain type chip conveyor

Competitive Advantage

Cost-effective with flexible CNC options, robust cutting capability, high stability, and comprehensive standard accessories reducing initial investment.
