Quick Detail

Main standard: Metric 80 spindle (130mm); Facing plate;Boring tool holder; Work lamp; Cooling system; Hydraulic system; Lubrication pump; NEWALL X/Y-axis DRO; MITSUBISHI PLC control; CE-mark electrical components; Level wedges & foundation bolts; Operating tools; Operation manual
Optional:ISO50 (7:24) spindle; NEWALL Z-axis DRO; Rear column; Turning device & gears

Description

The classic series horizontal milling and boring machines are especially suitable for the rough and finishing boring as well as large, medium size and box type components milling. They excel at inner hole boring, cylindrical turning, and grooving by radial feed of facing plate slide rest. worktable rotation uses a 4x90 optical positioning device suitable for large workpiece turnover machining accuracy needs. The precision DRO measurement system meets the requirements of workpiece coordinate and lineation.

Performance and feature

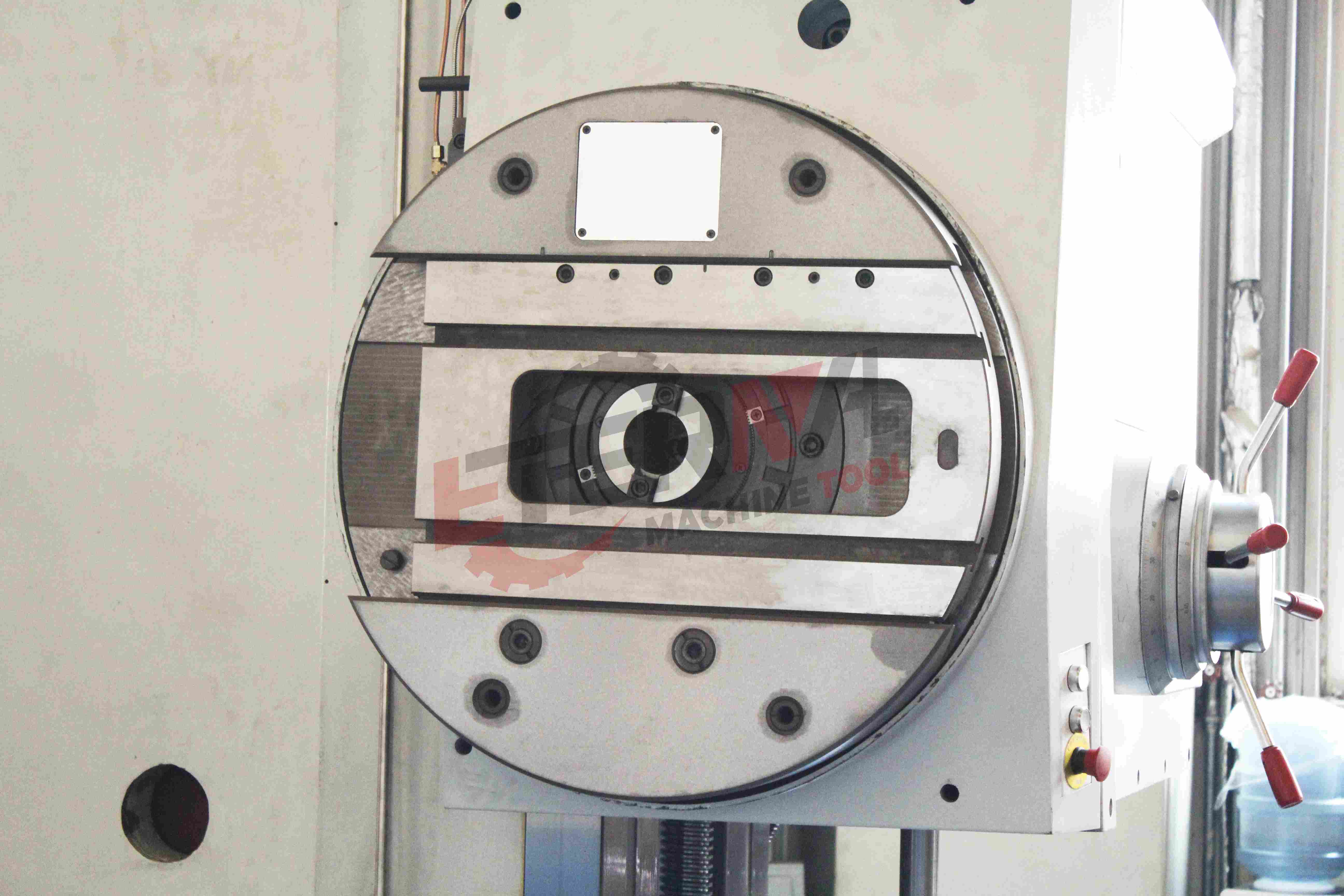

High Quality Spindle
The three layer mechanism ensures high rotational accuracy and the three point support provides high rigidity and accuracy.
User Friendly Layout

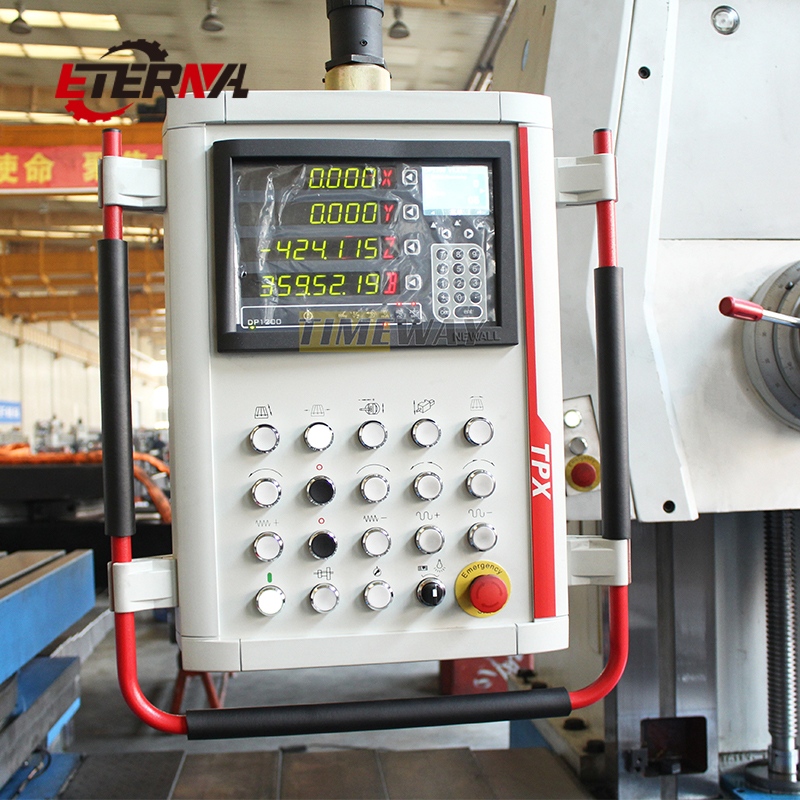

The hanging operation Panel provides flexible and convenient centralized operation. Hydraulic preselection controls speed and feed rate.
Accurate & Stable Optical Aiming
The worktable's 4x90 optical aiming device ensures high positioning accuracy and high precision when turnover boring.
Elector-Hydraulic Interlock
All moving components feature electro-hydraulic interlocks. Only one component moves while others are clamped automatically.

Structure and Feature

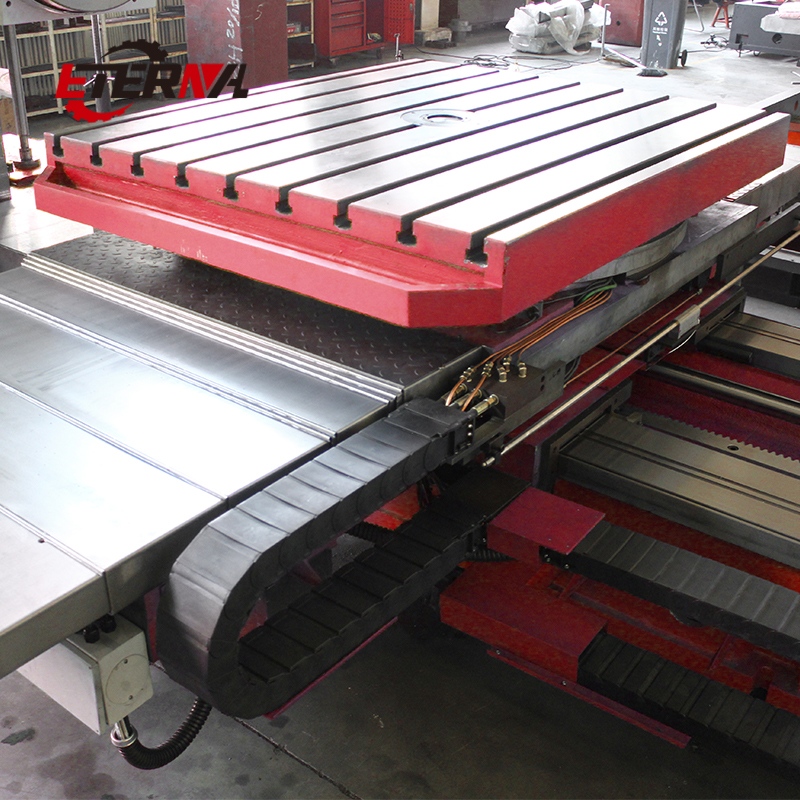

Bed
Our high quality casting feature polished and hardened guideways. The castings are internally reinforced to maximize rigidity and stability.
Control Panel
Available in hanging or swing-arm arrangements, the control panel is easy to use and reduces operator fatigue.
Internal Design
Easy to install, steady, and precise with a fully-enclosed structure to prevent oil, coolant, and chip intrusion.
Column
Made of high quality castings with ground and hardened guideways, the optimized structural design easily supports the assembly.
Protective Enclosure
Welded high quality steel plates form an excellent protective cover.
Hydraulic System
Pressure adjusted via relief valve. Variable speed achieved via a rotary valve.

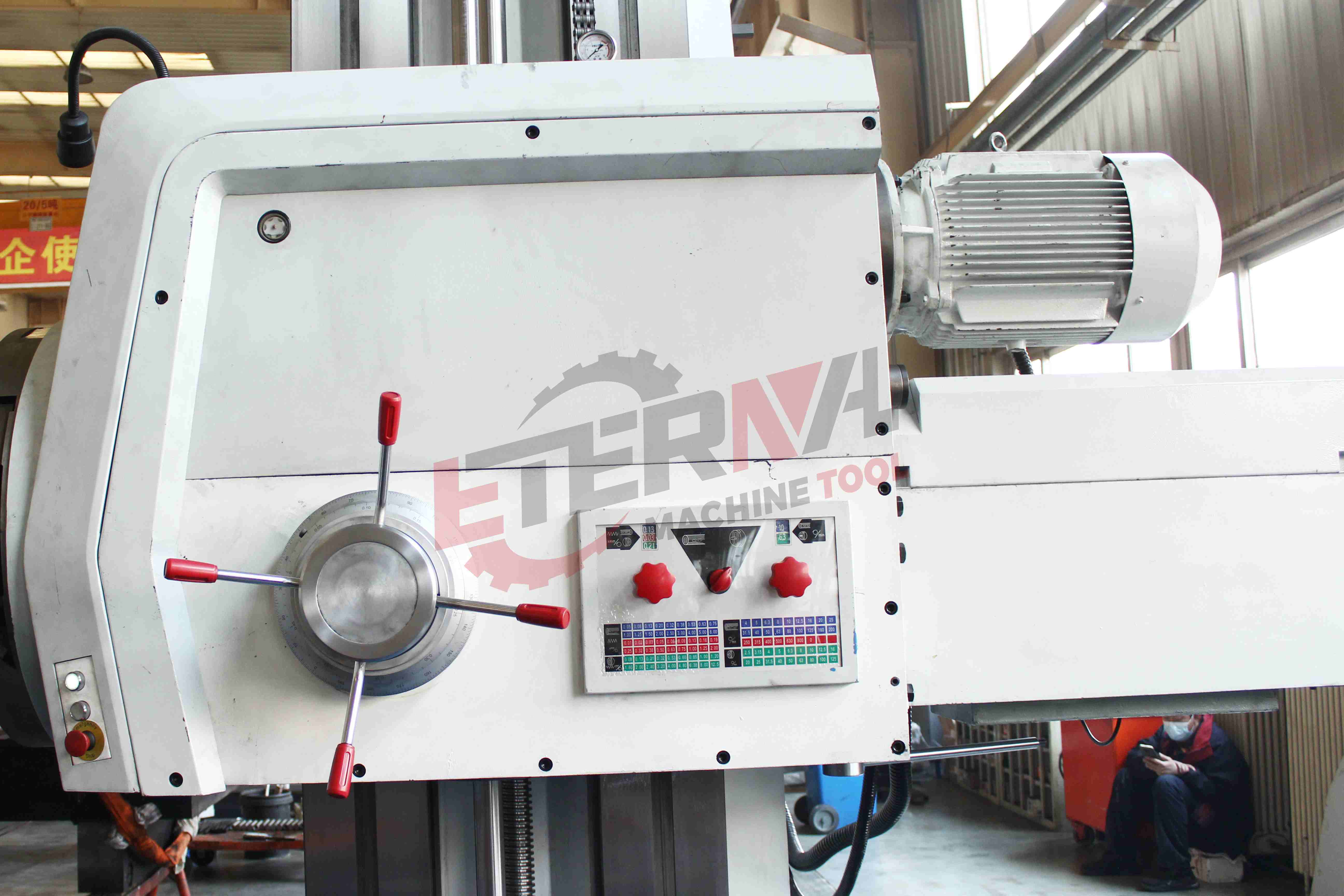

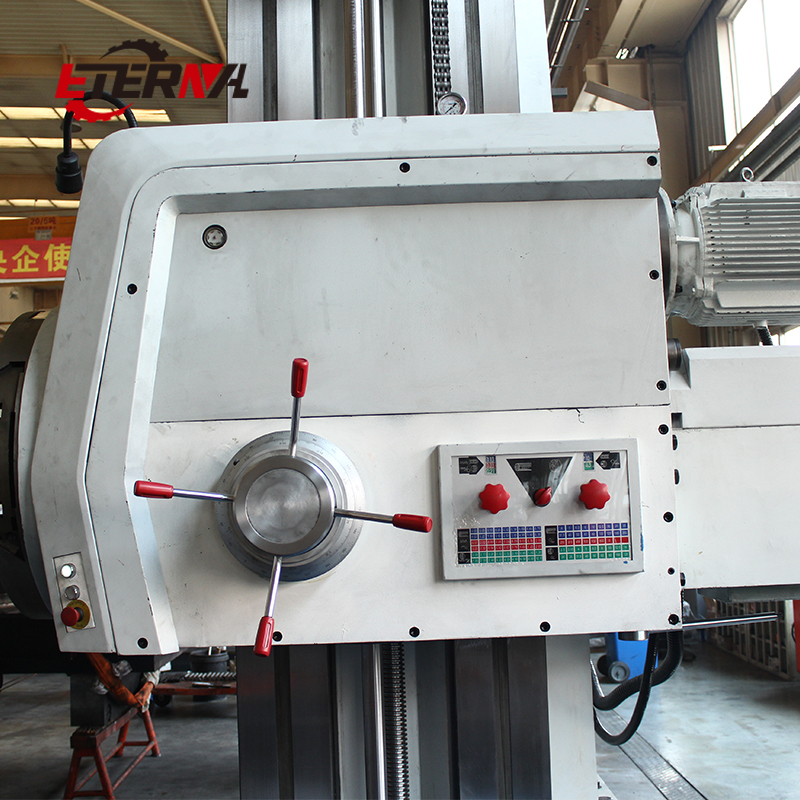

Headstock
Primary speed is controlled via switches on the headstock itself, a variety of rotational speeds are possible.

Applications

The classic series horizontal milling and boring machines are especially suitable for the rough and finishing boring as well as large, medium size and box type components milling. They excel at inner hole boring, cylindrical turning, and grooving by radial feed of facing plate slide rest.

Specifications

Standard Accessories

※ Metric 80 spindle (130mm)
※ Facing plate
※ Boring tool holder
※ Work lamp
※ Cooling system
※ Hydraulic system
※ Lubrication pump
※ NEWALL X/Y-axis DRO
※ MITSUBISHI PLC control
※ CE-mark electrical components
※ Level wedges & foundation bolts
※ Operating tools
※ Operation manual

Optional Accessories

※ ISO50 (7:24) spindle
※ NEWALL Z-axis DRO
※ Rear column
※ Turning device & gears

Competitive Advantage:

Based on the listed configuration, the TPX-130C Horizontal Boring Mill offers the following competitive advantages:
High Rigidity & Heavy-Duty Cutting Capacity – The metric 80 spindle (130mm diameter) provides strong torsional rigidity and excellent vibration damping, enabling efficient heavy-duty boring and milling operations.
Comprehensive Standard Package – Unlike many competitors that charge extra for critical components, the TPX-130C comes standard with a facing plate, boring tool holder, hydraulic system, and lubrication pump, reducing initial investment and delivery lead time.
Advanced Control & Precision Feedback – The Mitsubishi PLC control ensures reliable automation and easy troubleshooting, while the NEWALL X/Y-axis DRO (with optional Z-axis) delivers high-precision positioning and repeatability, enhancing machining accuracy.
Ready-to-Operate Delivery – Inclusion of work lamp, cooling system, operating tools, level wedges, foundation bolts, and operation manual means the machine can be installed and commissioned quickly, minimizing downtime.
International Compliance – CE-marked electrical components demonstrate conformity with European safety standards, facilitating export and operator confidence.
Flexible Upgrade Path – Optional ISO50 (7:24) spindle, rear column, and turning device & gears allow the machine to adapt to a wider range of workpieces and complex machining requirements, offering excellent cost-performance scalability.
