Quick Detail

Main standard: Manual four-jaw chuck worktable; Cooling system; Standard tool holder 2 pieces; Protection guard; Chip conveyor, iron chip trolley; Basic feet and pads; Automatic forced lubrication system; Maintenance tools; CNC system(SINUMERIK808D); Worktable lubrication and cooling system; Electric cabinet air conditioner; Spindle encoder; Work lamp; Three-color signal lights; X-axis telescopic protective cover.
Optional: CNC system(FANUC OI TF); CNC system(SINUMERIK 828D); Oil and water filter; Increase z-axis travel; Three-jaw self-centering hydraulic chuck; Increase the spindle motor power; Vertical tool holder form; Increase the height of the work piece.

Description

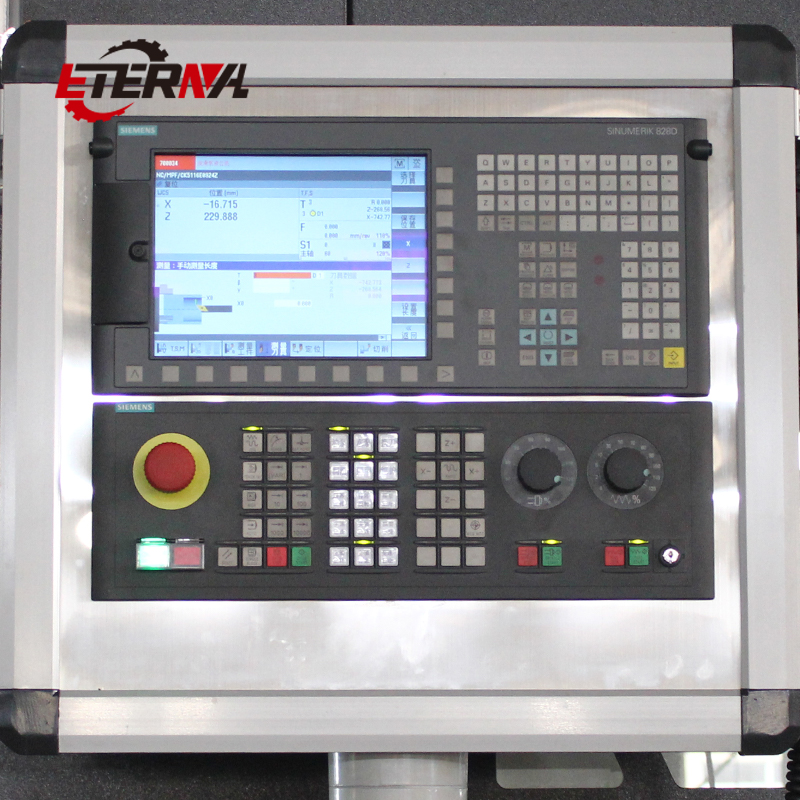

The machine is controlled by a Siemens CNC system. The X-axis and Z-axis are both driven by AC servo motors.
The main transmission is driven by a set of horizontal spindle servo motors. The main motor and main transmission box are driven by a horizontal axis mechanism to achieve the required speed during turning. An encoder is equipped in the middle of the spindle to achieve constant linear speed cutting. The machine is equipped with fully enclosed protection around the machine to ensure safe operation and efficient production.The machine is designed and manufactured using high-grade cast iron and box-type structure. The X and Z-axis guide rails adopt wear-resistant guide rail pairs and hard rail structures. The surface of the guide rails is quenched and ground to improve the wear resistance of the ram and beam surfaces. The guide rail has long service life and high accuracy retention.
The vertical tool holder can move horizontally on the beam and the ram can move vertically. The motor and ball screw are directly connected through a flexible coupling to cut any complex rotational surface, and can control continuous trajectories.

Applications

This machine is suitable for machinery manufacturing, automobile manufacturing, wind power energy.aerospace, military industry, train wheels, ships and other fields. Precision machining of internal and external cylindrical surfaces, conical surfaces, flat surfaces, grooving, cutting, threading, and curved surfaces of discs, rings, and rotary parts.

Specifications

Standard Accessories

※ Manual four-jaw chuck worktable
※ Cooling system
※ Standard tool holder 2 pieces
※ Protection guard
※ Chip conveyor, iron chip trolley
※ Basic feet and pads
※ Automatic forced lubrication system
※ Maintenance tools
※ CNC system(SINUMERIK808D)
※ Worktable lubrication and cooling system
※ Electric cabinet air conditioner
※ Spindle encoder
※ Work lamp
※ Three-color signal lights
※ X-axis telescopic protective cover

Optional Accessories

※ CNC system(FANUC OI TF)
※ CNC system(SINUMERIK 828D)
※ Oil and water filter
※ Increase z-axis travel
※ Three-jaw self-centering hydraulic chuck
※ Increase the spindle motor power
※ Vertical tool holder form
※ Increase the height of the work piece

Competitive Advantage

Outstanding cost-performance ratio-delivers greater value with more standard features and superior heavy-cutting performance compared to same-class vertical lathes. Flexible optional configurations allow custom upgrades without replacing the entire machine. Robust structure ensures long-term accuracy and low maintenance.
