Quick Detail

Main standard: Resin sand casting; X, Y, Z rails adopts imported linear guideway; X, Y, Z rails adopt stainless steel telescopic cover; Standard with belt driven spindle, optional for direct driven spindle; Taiwan production pneumatic cylinder; Taiwan ATC, carousel type and disc type are available as option; Imported bearings for leadsrews; Import coupling; Headstock balancing system have heavy casting or nitrogen balance system as option; Full enclosure; Rigid tapping; Spindle center air blast; Work lamp; Pilot lamp; USB and LAN interface; Manual pulse generator (MPG); Centralized automatic lubrication system; Cooling system; Heat exchanger for electrical cabinet; Leveling blocks & bolts; Toolbox and tools; CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
Optional: The 4th axis wiring; NC rotary table; Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm); Circular Coolant Nozzle; Coolant through spindle (CTS); Spindle oil cooler; Air conditioner (A/C) for electrical cabinet; Auto. Tool length measurement system; Auto. Workpiece measurement systems; Screw type chip conveyor; Chain type chip conveyor; High pressure water flush system; Safety door; Oil skimmer.

Description

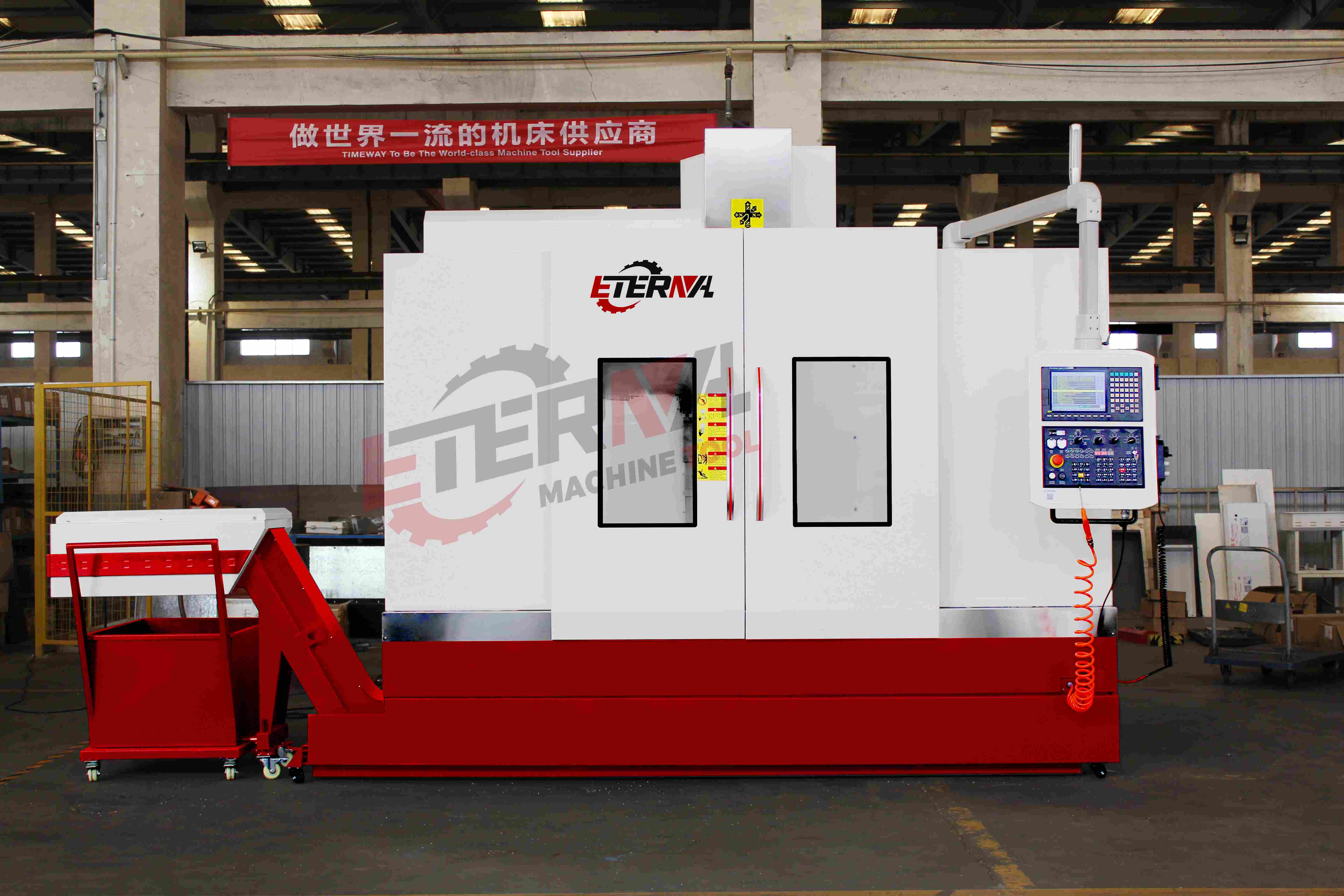

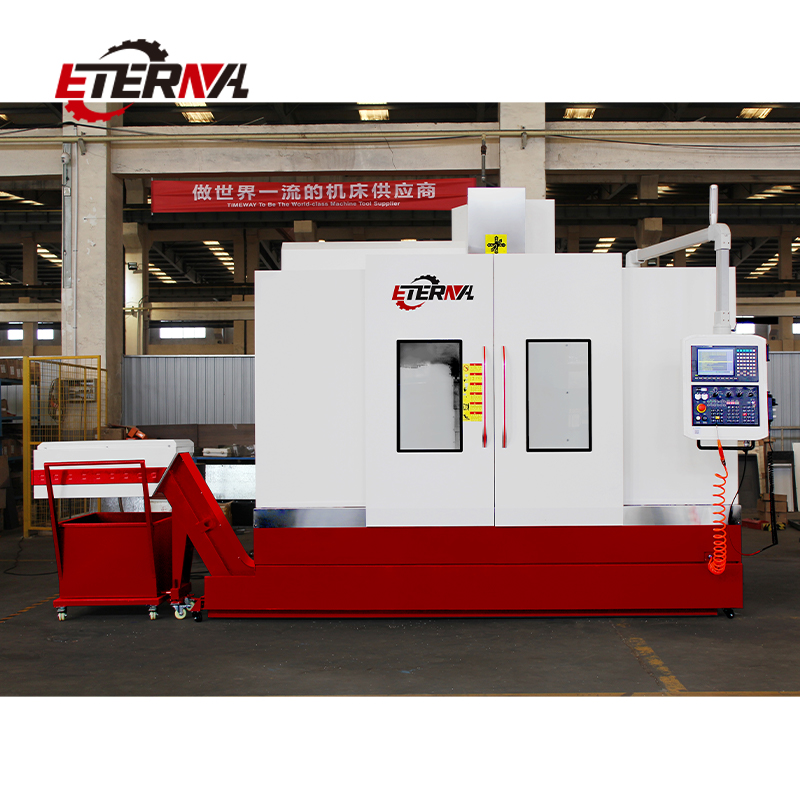

The machine is a rigid and high-precision vertical machining center built with resin sand castings for superior structural stability and vibration damping. All linear guides on X, Y, and Z axes are imported, ensuring smooth and accurate movement, while stainless steel telescopic covers fully protect the rails from chips and coolant. The machine comes standard with a belt-driven spindle, with optional direct-driven spindles available at 10,000, 12,000, or 15,000 rpm for higher-speed applications. Pneumatic components and the ATC (automatic tool changer) are sourced from Taiwan, with both carousel and disc types offered. Imported bearings and coupling are used for the leadscrews to enhance transmission precision. The headstock balancing system can be configured with either a heavy counterweight or nitrogen balancing. Full enclosure, rigid tapping, spindle center air blast, work lamp, pilot lamp, USB/LAN interfaces, and an MPG handwheel are all standard. Centralized automatic lubrication, cooling system, heat exchanger for the electrical cabinet, leveling blocks, and tool kit are also included. The CNC controller supports domestic brands like KND, GSK, and HNC, as well as international options such as SIEMENS, FANUC, MITSUBISHI, and FAGOR.

Applications

The machine is ideal for machining medium-to-large workpieces in industries such as automotive parts, mold making, aerospace components, general machinery, and 3C electronics. It excels in milling, drilling, tapping, and contouring of ferrous and non-ferrous metals, providing stable performance for both prototype development and mass production.

Specifications

Standard Accessories

※ Resin sand casting
※ X, Y, Z rails adopts imported linear guideway
※ X, Y, Z rails adopt stainless steel telescopic cover
※ Standard with belt driven spindle, optional for direct driven spindle
※ Taiwan production pneumatic cylinder

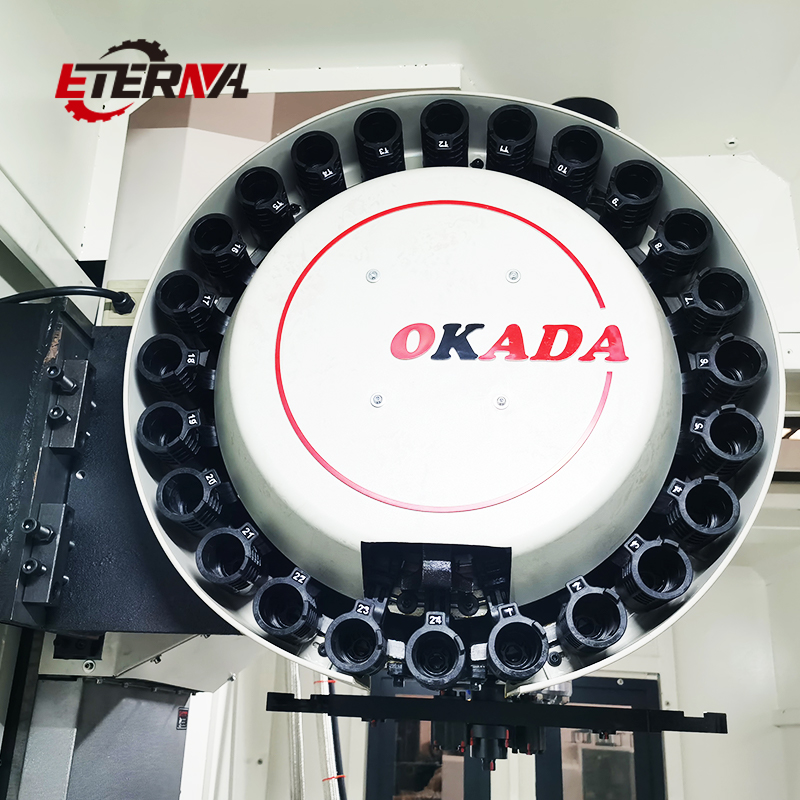

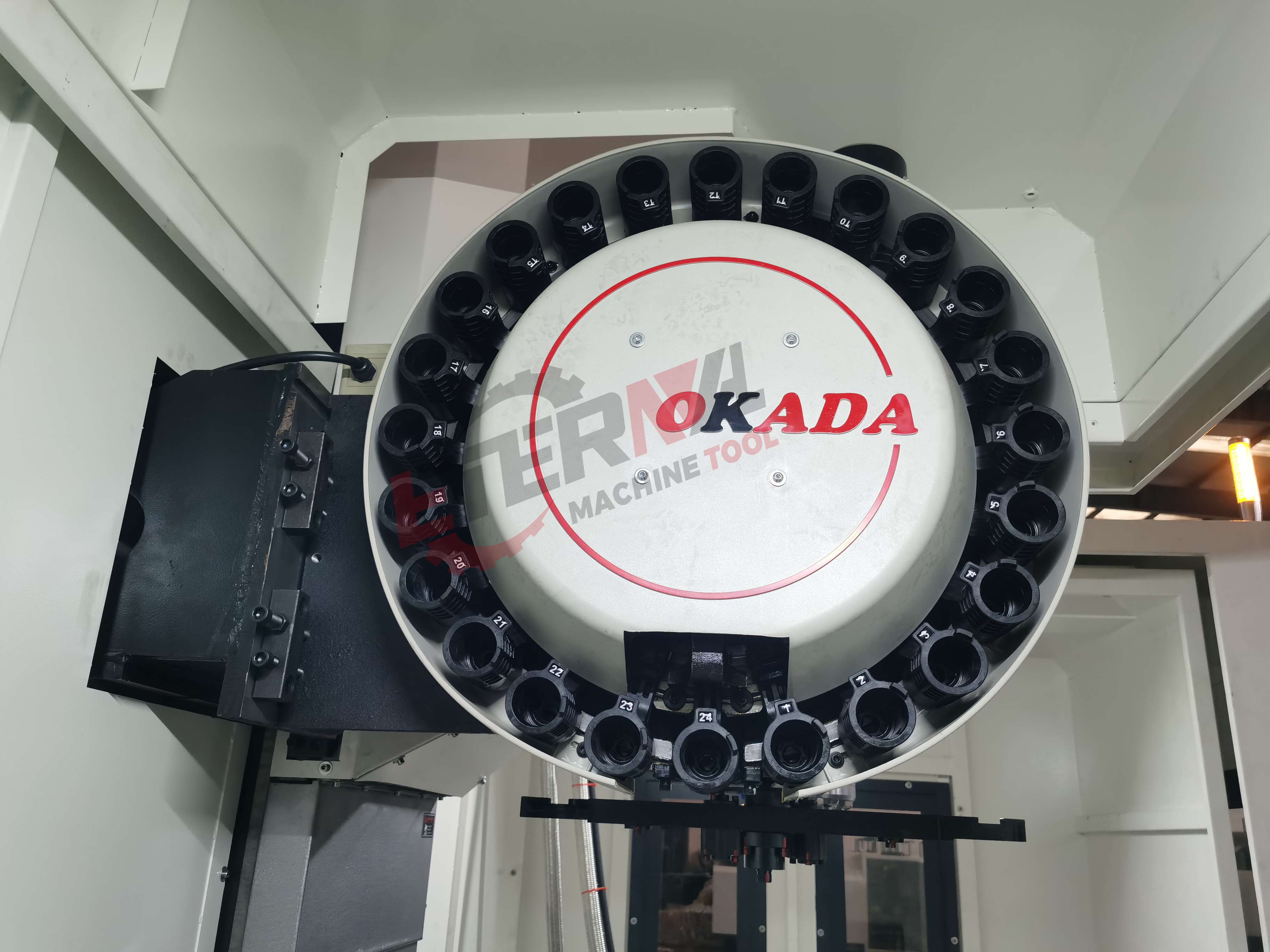

※ Taiwan ATC, carousel type and disc type are available as option
※ Imported bearings for leadsrews
※ Import coupling
※ Headstock balancing system have heavy casting or nitrogen balance system as option
※ Full enclosure
※ Rigid tapping
※ Spindle center air blast
※ Work lamp
※ Pilot lamp
※ USB and LAN interface

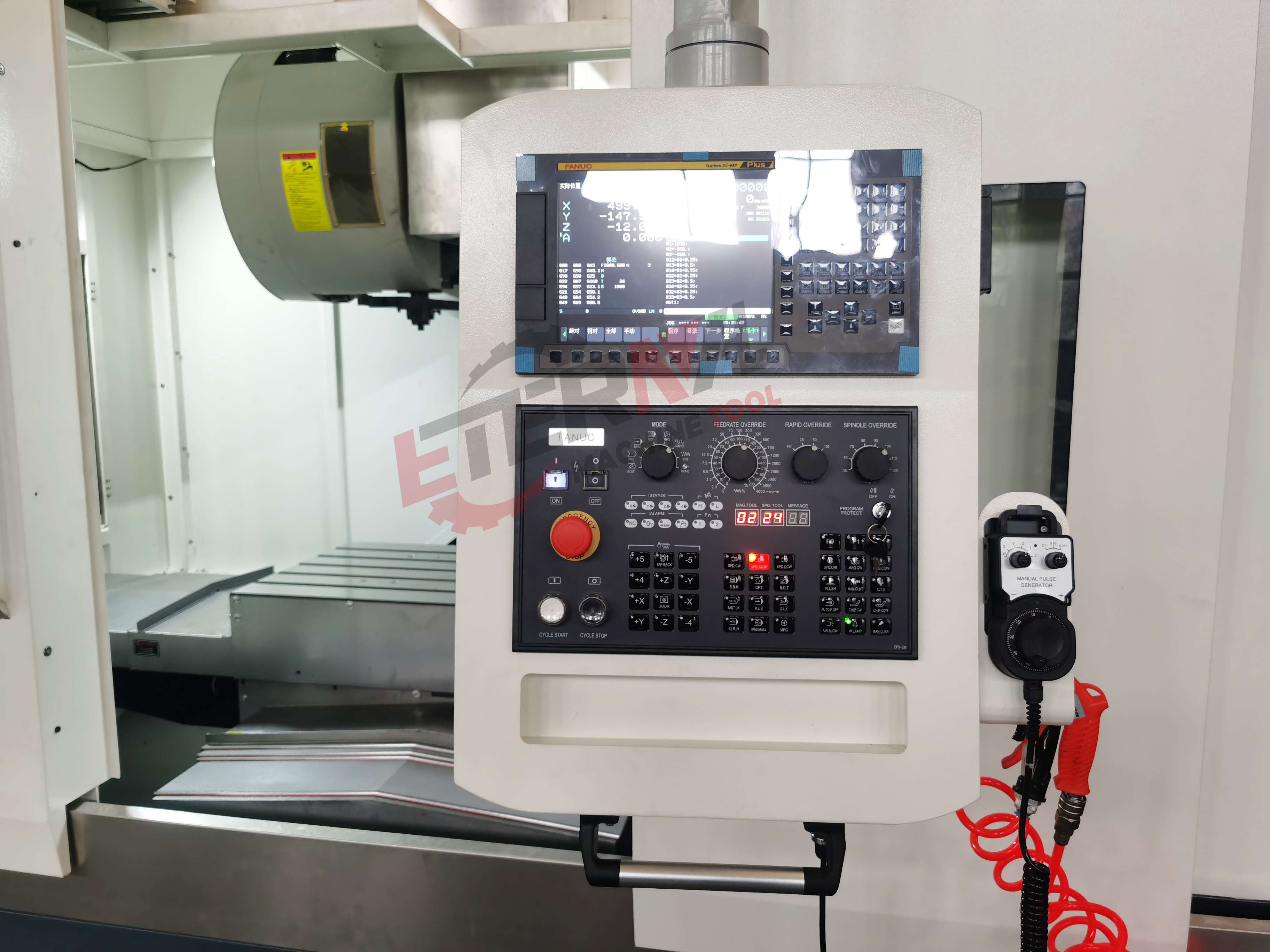

※ Manual pulse generator (MPG)
※ Centralized automatic lubrication system
※ Cooling system

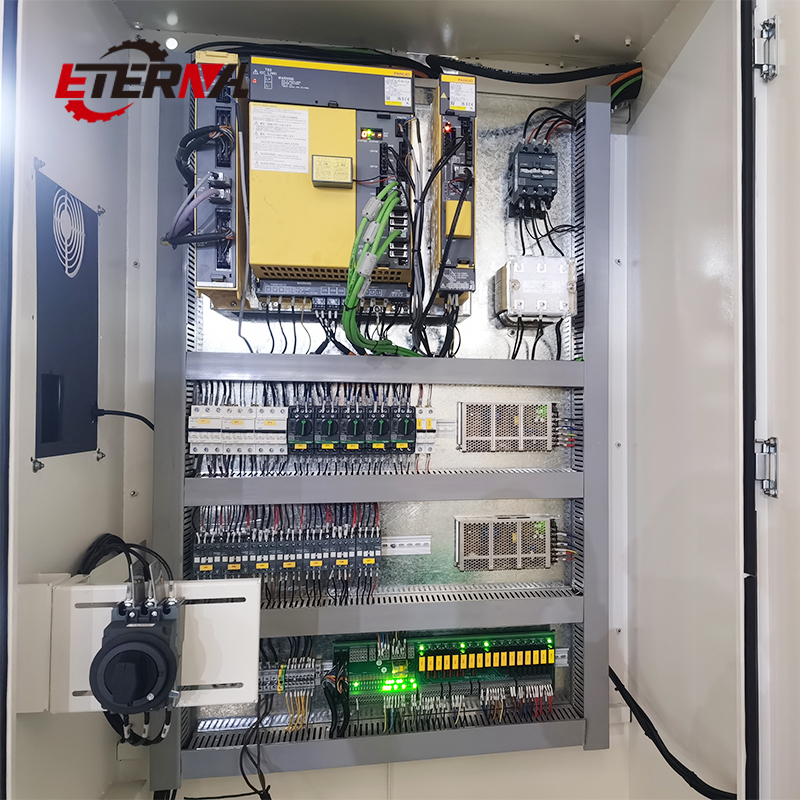

※ Heat exchanger for electrical cabinet
※ Leveling blocks & bolts
※ Toolbox and tools

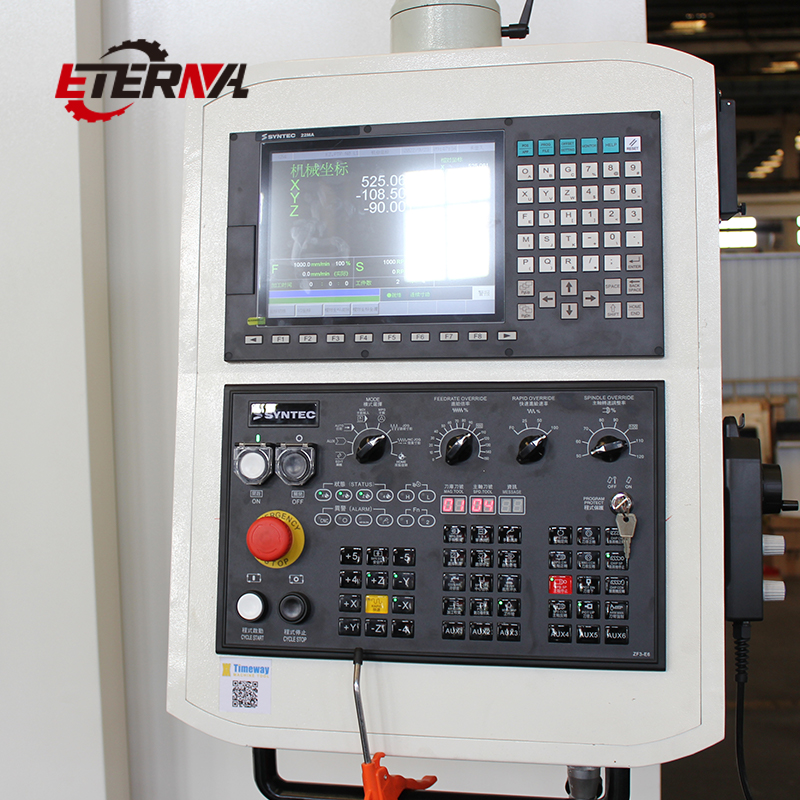

※ CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.

Optional Accessories

※ The 4th axis wiring

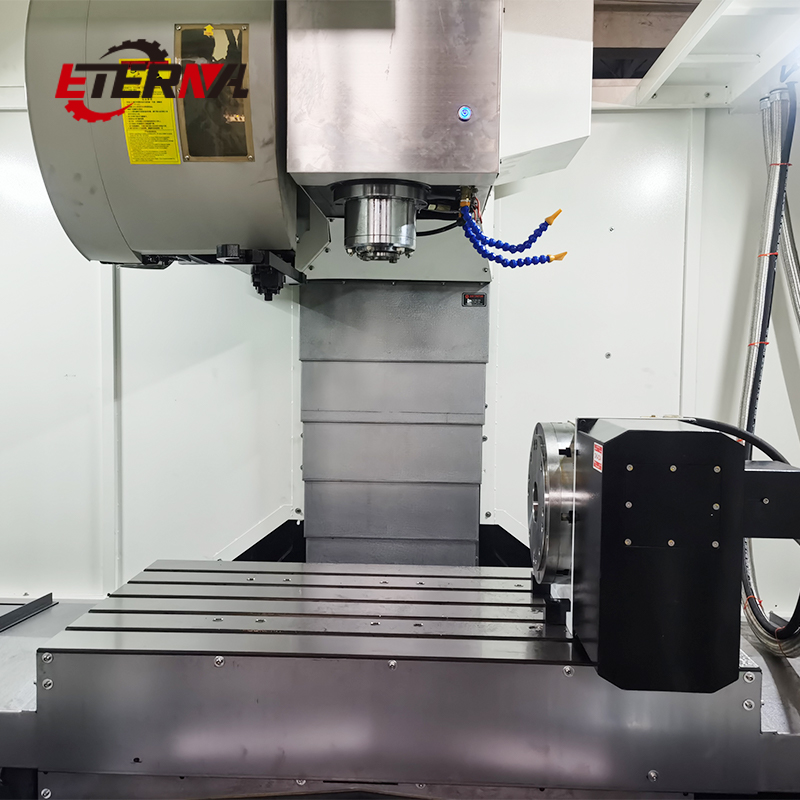

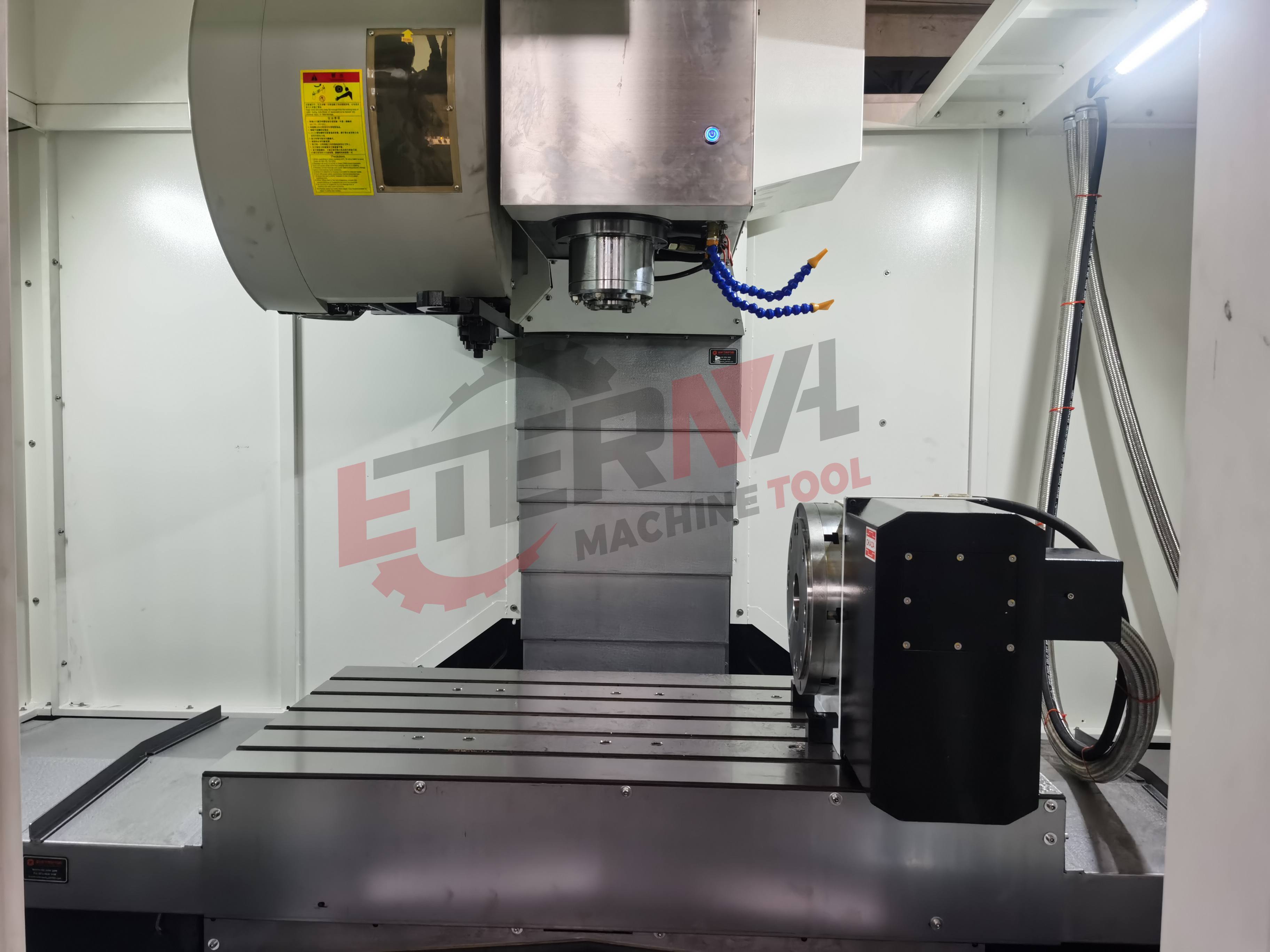

※ NC rotary table
※ Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm)
※ Circular Coolant Nozzle
※ Coolant through spindle (CTS)
※ Spindle oil cooler
※ Air conditioner (A/C) for electrical cabinet
※ Auto. Tool length measurement system
※ Auto. Workpiece measurement systems
※ Screw type chip conveyor
※ Chain type chip conveyor
※ High pressure water flush system
※ Safety door
※ Oil skimmer

Competitive Advantage

High rigidity from resin sand castings ensures long-term accuracy and heavy cutting capability.
Imported linear guides and precision leadscrew bearings deliver excellent positioning and repeatability.
Flexible spindle choices (belt or direct-drive) adapt to diverse machining requirements.
Reliable Taiwan-made ATC and pneumatic systems reduce downtime and maintenance.
Multiple controller options allow customers to choose based on cost and preference.
Abundant optional accessories (4th axis, CTS, tool/workpiece measurement, chip conveyors, etc.) enable customized automation upgrades.
