Quick Detail

Main standard: GSK CNC system; 4-jaw chuck; 4-station electric tool-post; Work lamp; Cooling system; Manual pulse generator (MPG); Dead centers; Oil gun; Pilot lamp; Automatic lubrication pump; Manual moving tailstock; Tools & tool-box; Leveling wedge & bolts; Operation manual (English)
Optional: FANUC OR SIEMENS CNC system; 6/8-station tool-post; Steady rest; Follow rest; Hydraulic chuck; Hydraulic tailstock ; Full guard; Live centers; Air conditioner; Chip conveyor

Description

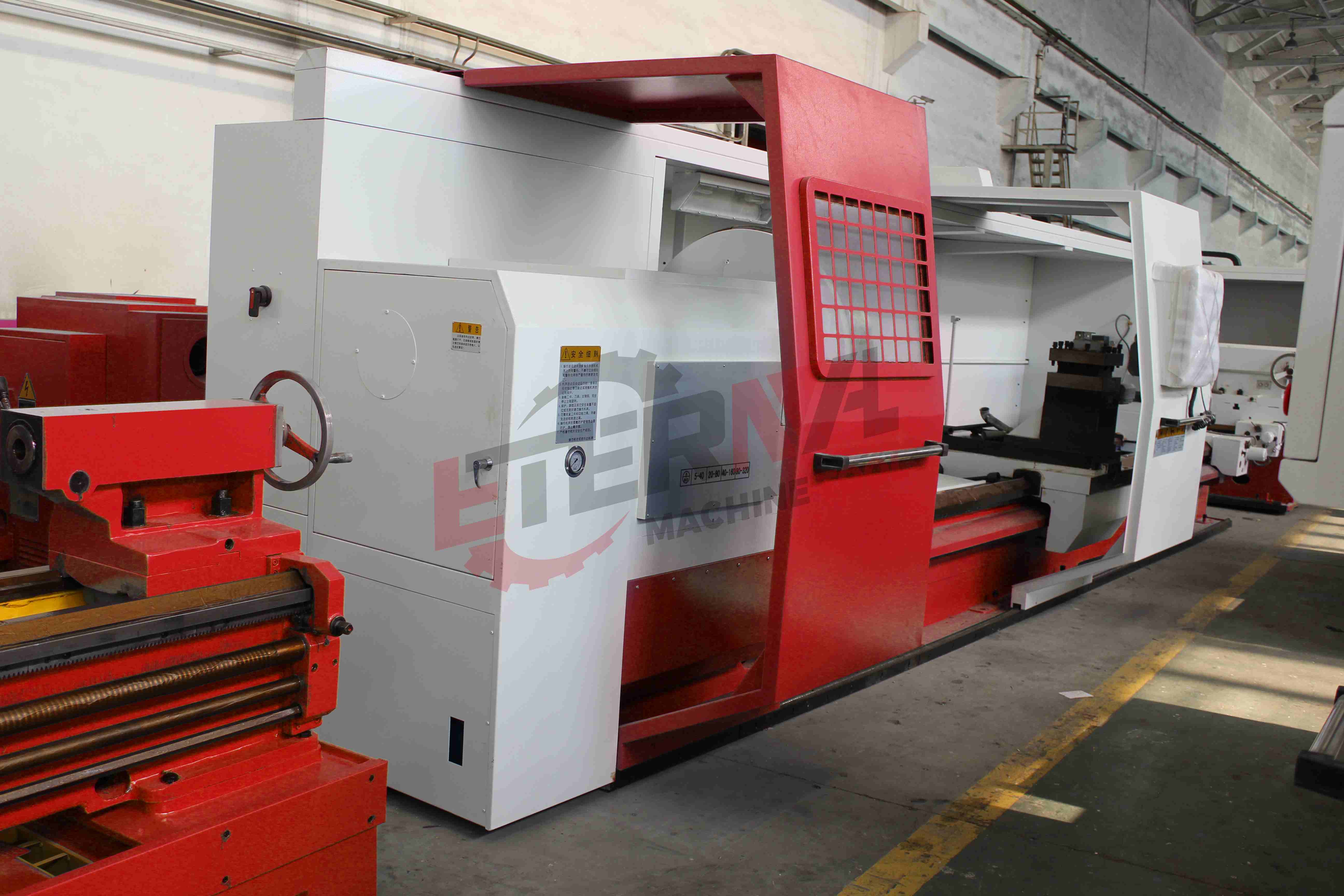

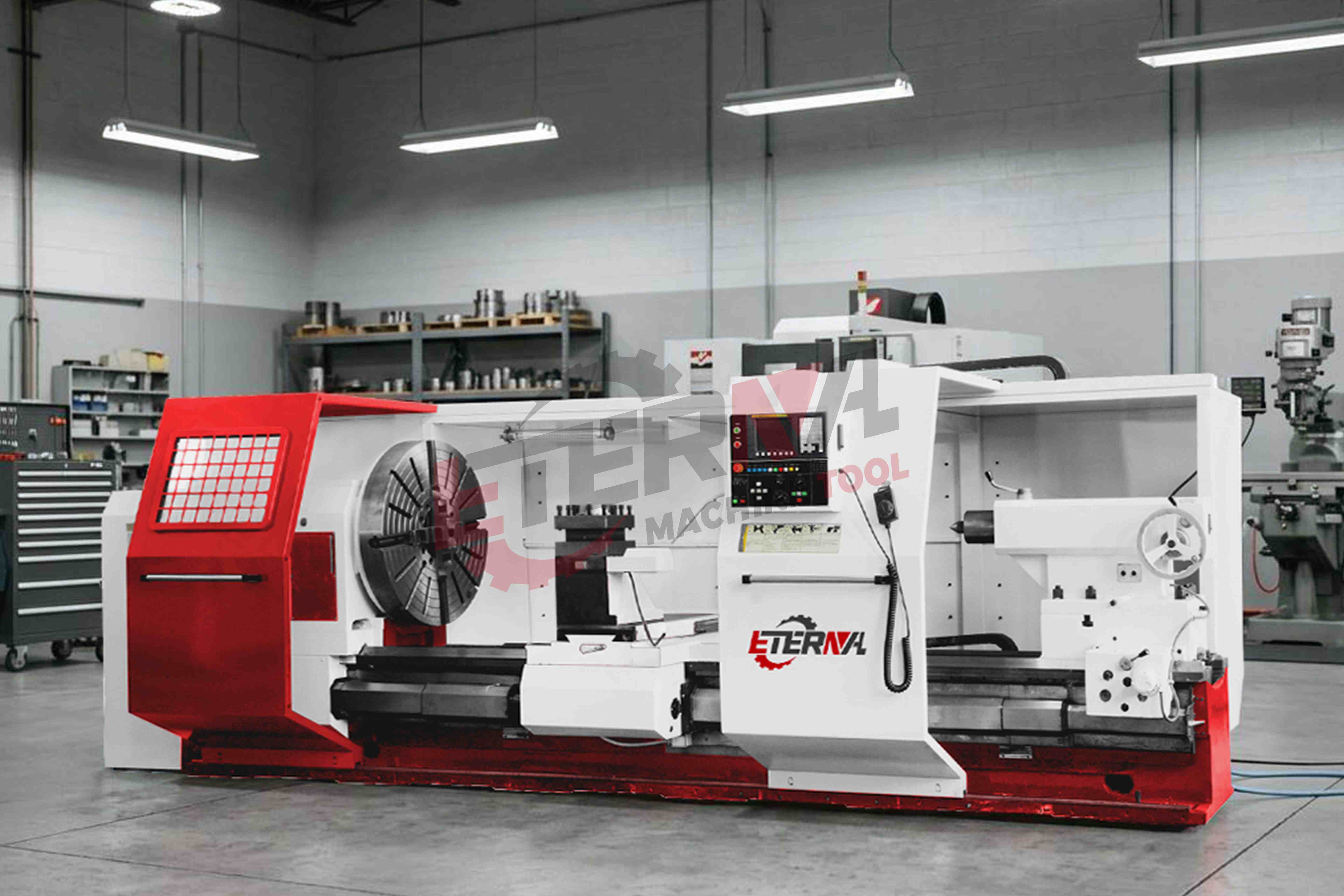

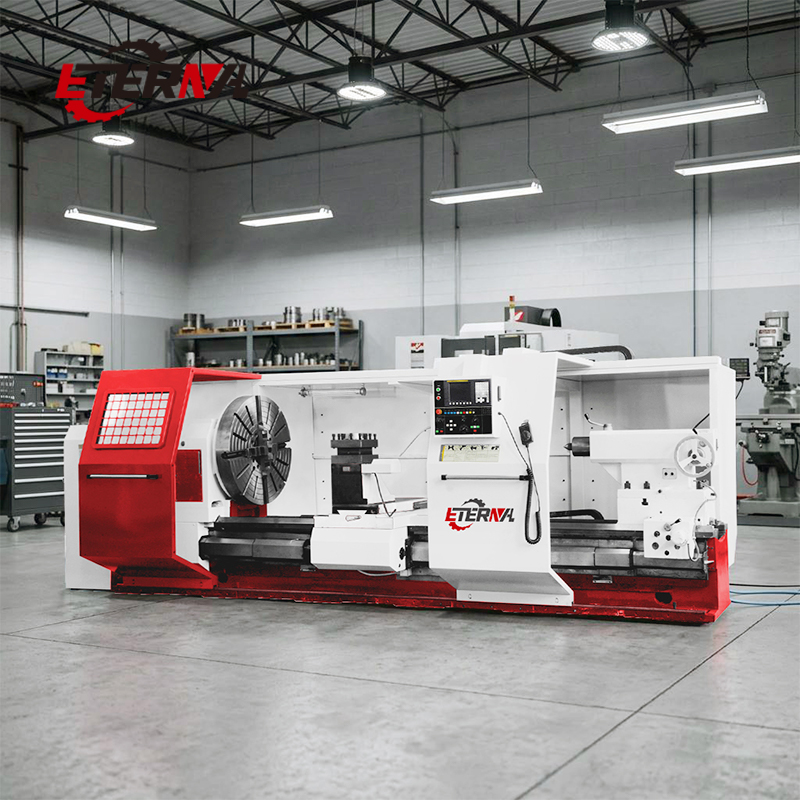

This series lathe bed is the one-piece type box-shaped structure, adopts high standard cast iron (HT300) one molding casting, after the second aging treatment, it has the feature of stable performance; guide way width (755mm), good rigidity, anti-vibration ability; spindle bore is 130mm, strong rigidity of headstock, adapting to heavy cutting.
Automatic shift exchange is controlled by the M code, stepless speed change within shift is controlled by the S code, achieving stepless speed and constant linear cutting (optional: spindle speed changed by manual, can be 21 speeds).
The X-direction and Z-direction use the precision grinding grade ball screw, ensured a high processing accuracy. positioning accuracy and repositioning accuracy.
Longitudinal (Z) Feeding: for 1000mm-5000mm,AC servo motor that installed on the left side of the feeding box drives the ball screw via high precision planetary reducer, for longer than 6000mm, it is the rack and pinion structure.

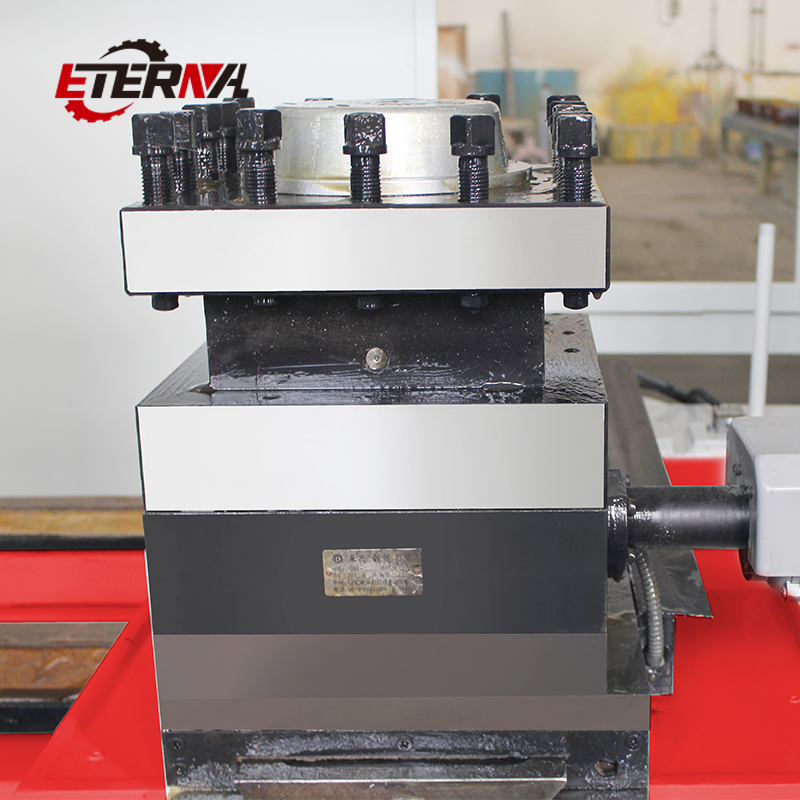

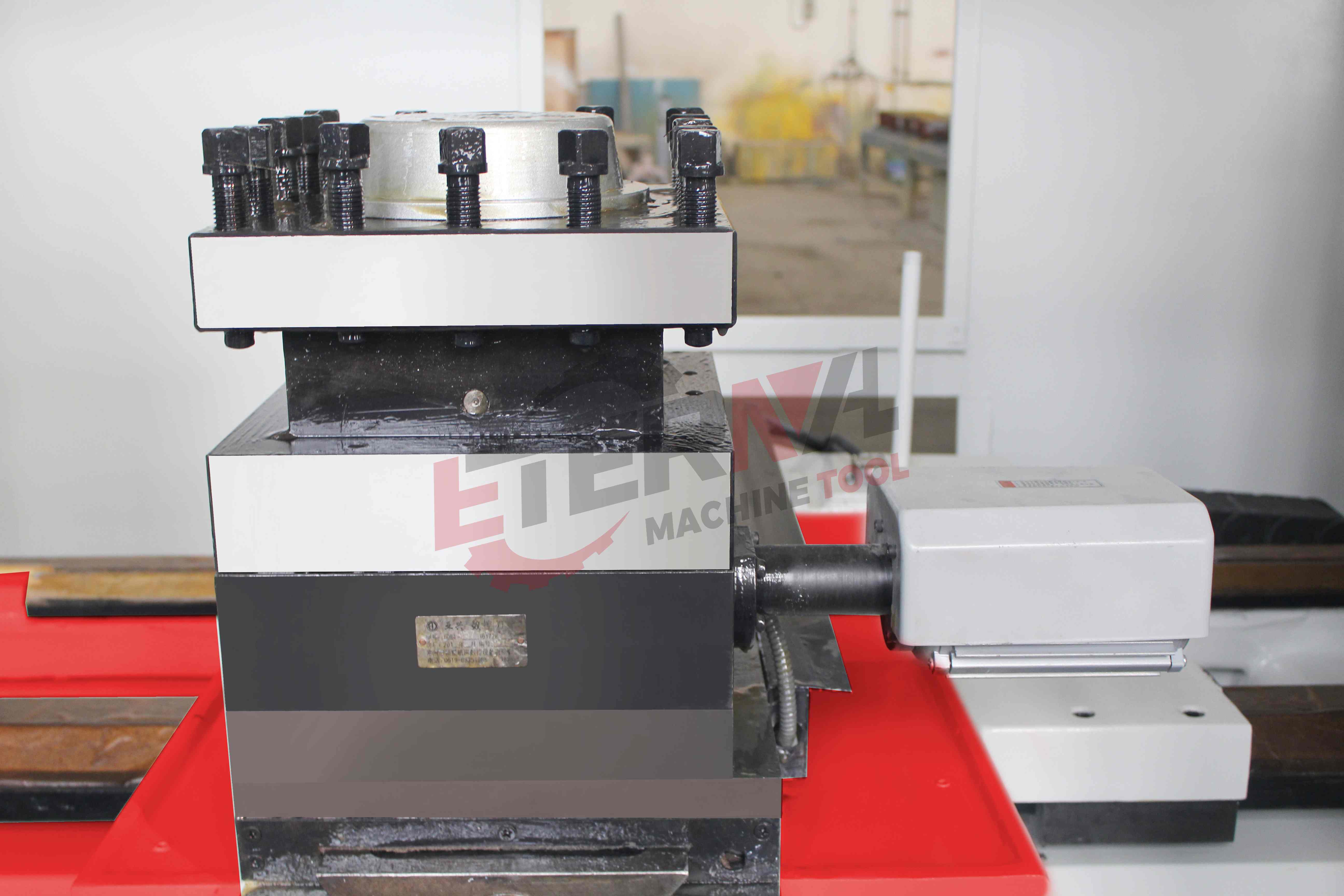

Equipped with 4-station vertical electric turret, but also according to their customers needs 6-station horizontal electric turret and 8-position horizontal electric turret can be chosen.

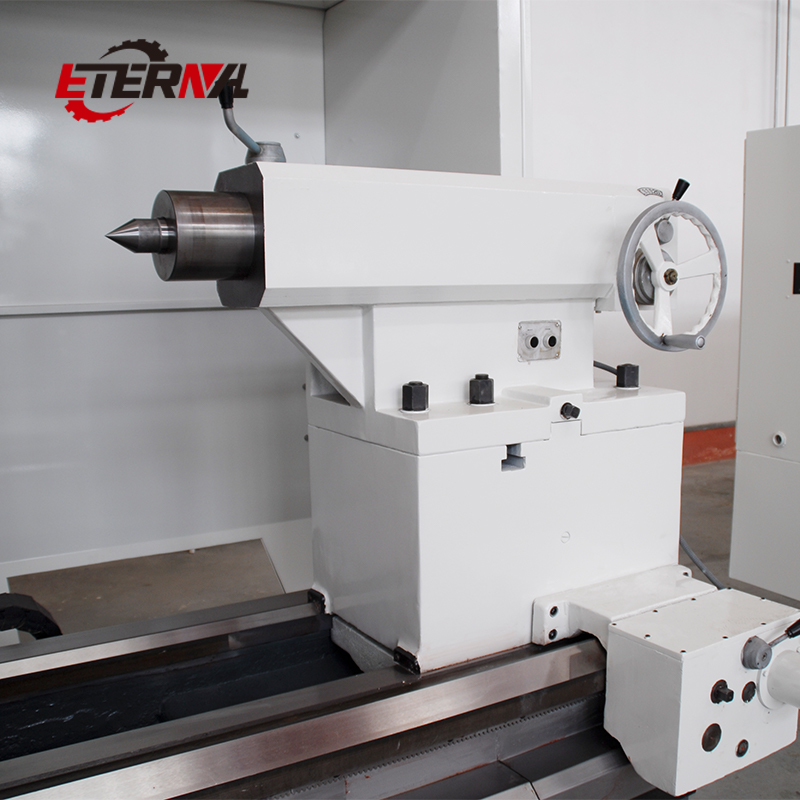

Tailstock structure is strong, which can perform heavy cutting, it can also be chosen electric tailstock to achieve automatic rapid movement and improve efficiency.

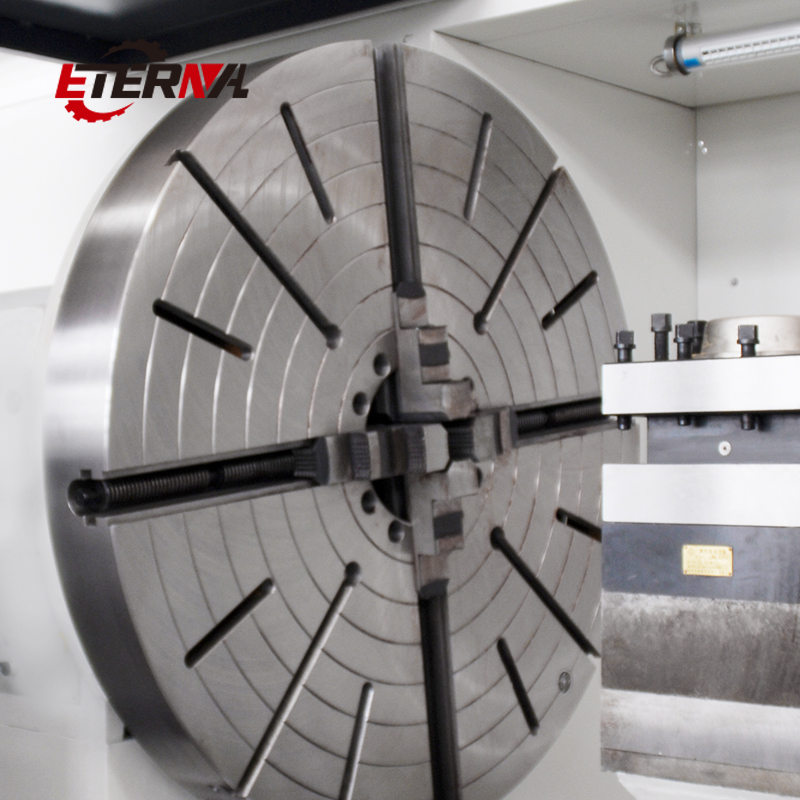

Spindle is driven by AC servo motor or AC variable frequency motor with frequency converter, ensure large output torque and wide spindle speed. Equipped with Φ1000mm standard manual four-jaw chuck.
Equipped with emergency stop safety button, when the lathe machine suddenly encountered a sudden power failure or other failures, due to the special design of the control circuit, it can be self-protection to ensure that the lathe machine and staff safety
Before delivery all lathe machines should be tested by British RENISHAW laser detector for dynamic accuracy detection and compensation, so the lathe machine has a high positioning accuracy and repeat positioning accuracy.

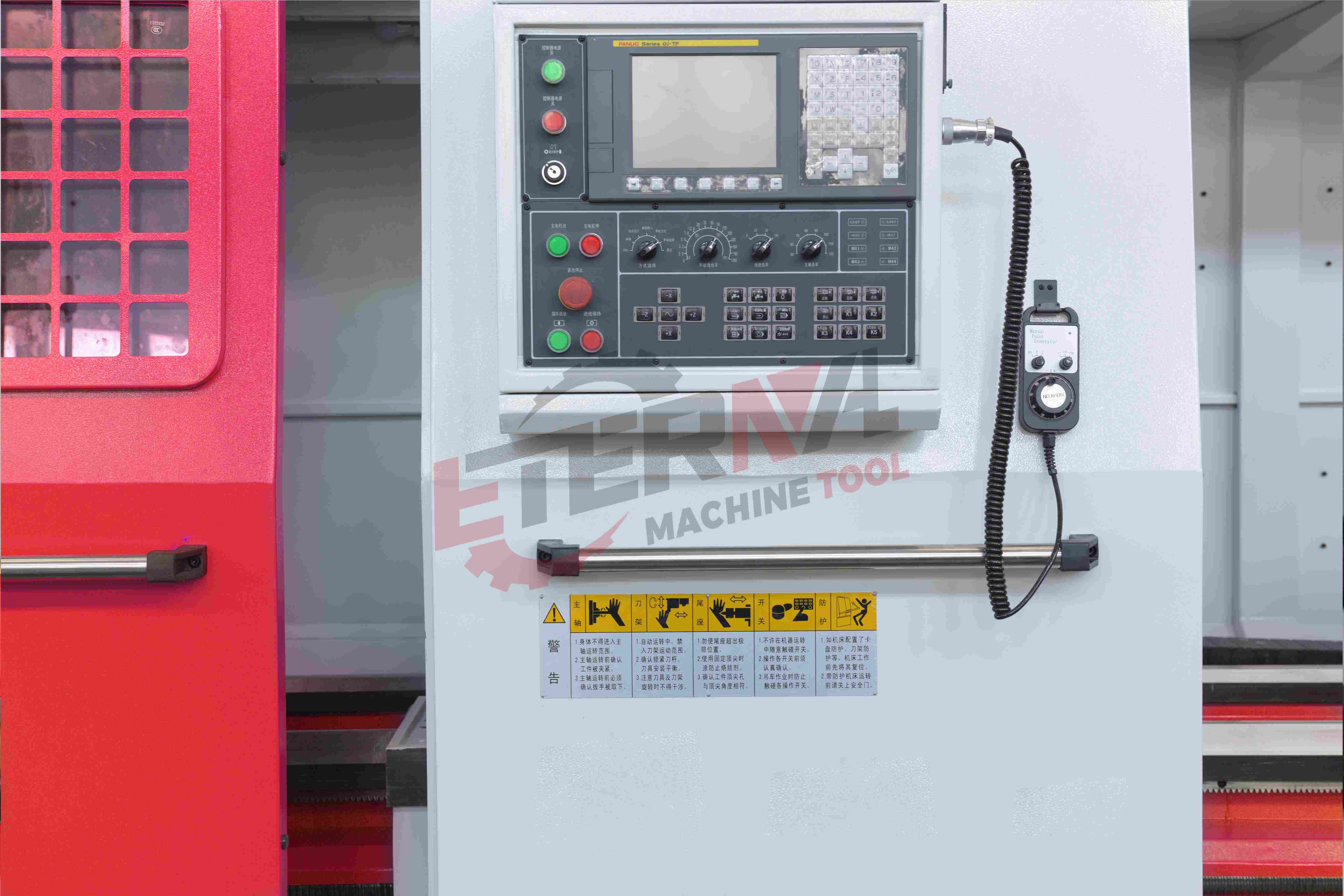

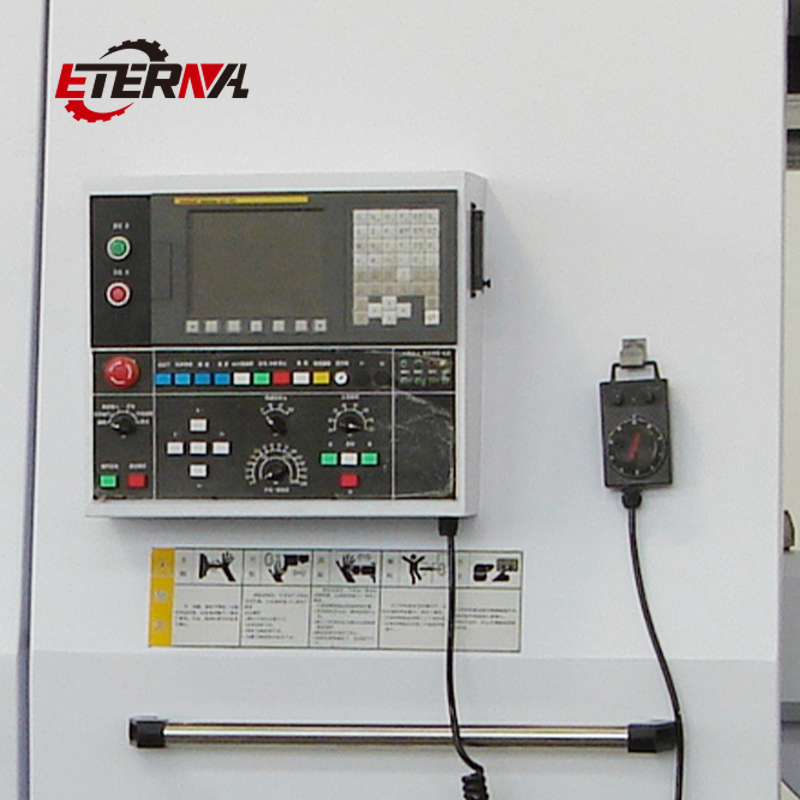

CNC system uses the most well-known international FANUC or SIEMENS control system (also available matching other systems according to users' requirements): Programs and parameters can be transferred through USB interface. X-axis and Z-axis can realize linkage, so it has straight line, arc and thread interpolation and a variety of other fixed cycle and other functions, the minimum resolution is 0.001mm.

Applications

This series horizontal lathe is suitable for processing large and medium-sized parts of castings, steels and non-ferrous metals It can turn outer circle,inner hole, end face, grooving, drilling, boring and nesting, and can turn various internal and external threads, such as metric, inch,modulus and diametrical.

Specifications

Standard Accessories

※ GSK CNC system
※ 4-jaw chuck
※ 4-station electric tool-post
※ Work lamp
※ Cooling system
※ Manual pulse generator (MPG)
※ Dead centers
※ Oil gun
※ Pilot lamp
※ Automatic lubrication pump
※ Manual moving tailstock
※ Tools & tool-box
※ Leveling wedge & bolts
※ Operation manual (English)

Optional Accessories

※ FANUC OR SIEMENS CNC system
※ 6/8-station tool-post
※ Steady rest
※ Follow rest
※ Hydraulic chuck
※ Hydraulic tailstock
※ Full guard
※ Live centers
※ Air conditioner
※ Chip conveyor

Competitive Advantage

Multiple renowned CNC system options provide flexible control; electric tool-post and optional high-station turret boost machining efficiency; auto lube and optional chip conveyor enhance automation and reliability; steady/follow rests extend long-shaft capability.
