Quick Detail

Main standard:4-jaw independent chuck; Steady rest (over 3M length); Follow rest (over 3M length); Manual moving tailstock; Dead center; 4-station tool post; Cooling system; Work lamp; Tools & tool-box; Leveling wedge and bolts; Operation manual (English)
Optional: Living center; 2 or 3-axis digital indicator; Chuck guard; Tool-post guard; Rear splash guard; Quick changing tool post; Electric moving tailstock; Grinding attachment

Description

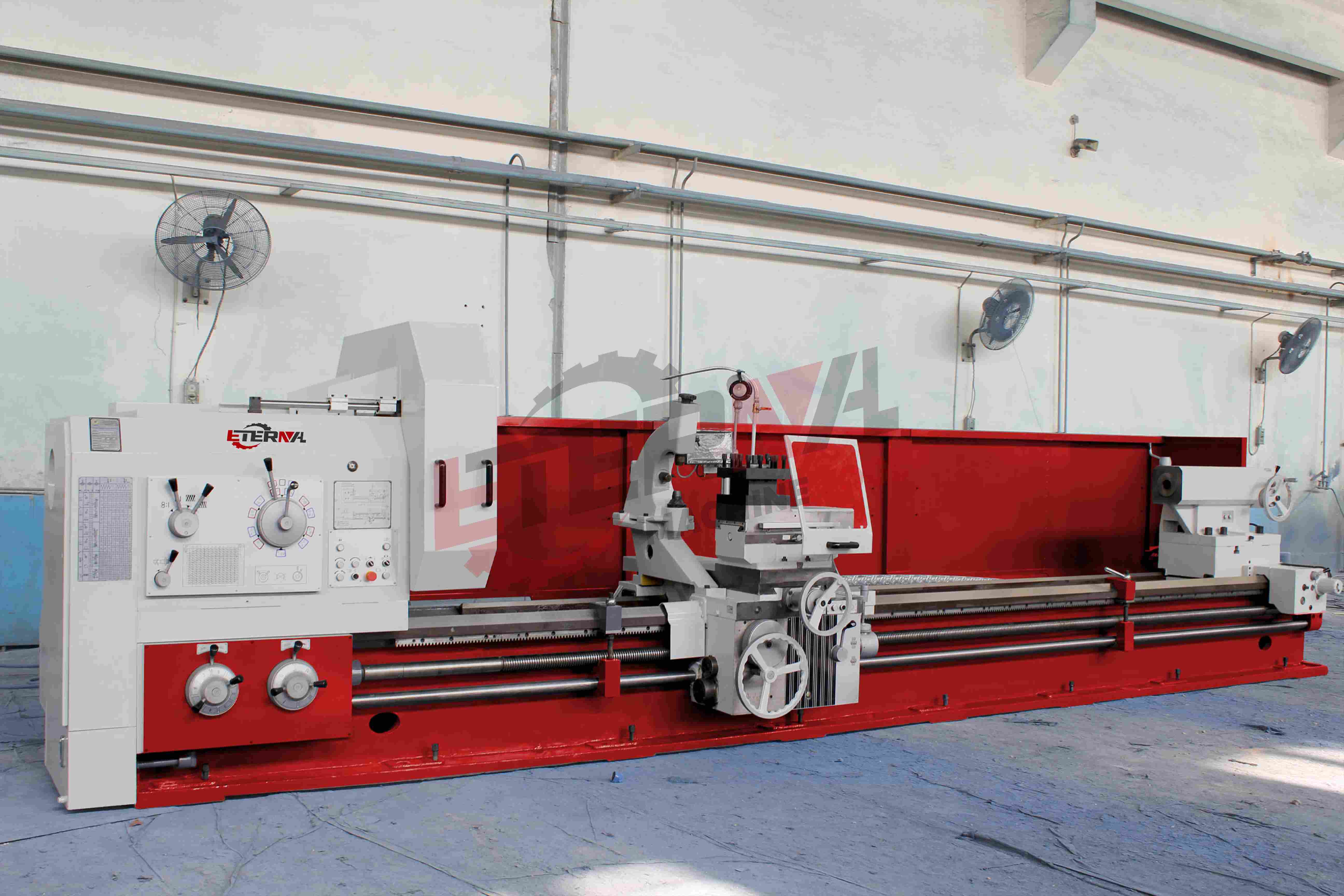

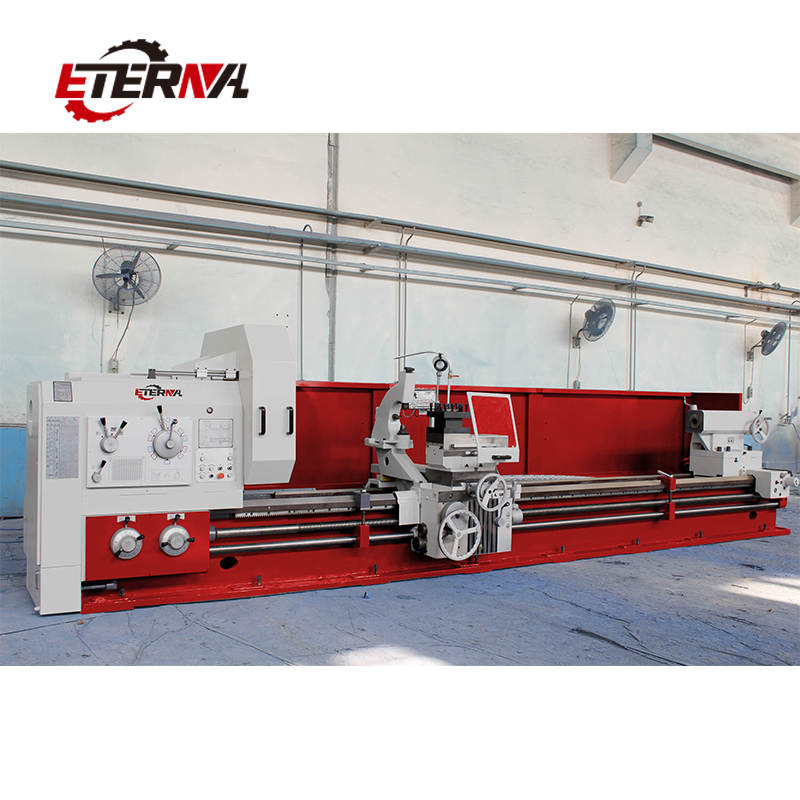

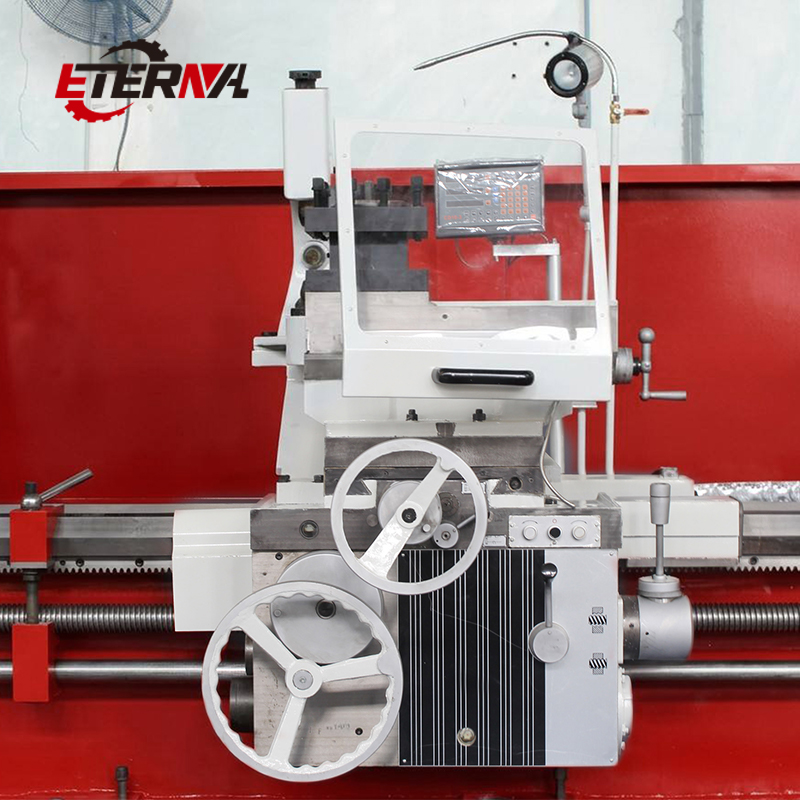

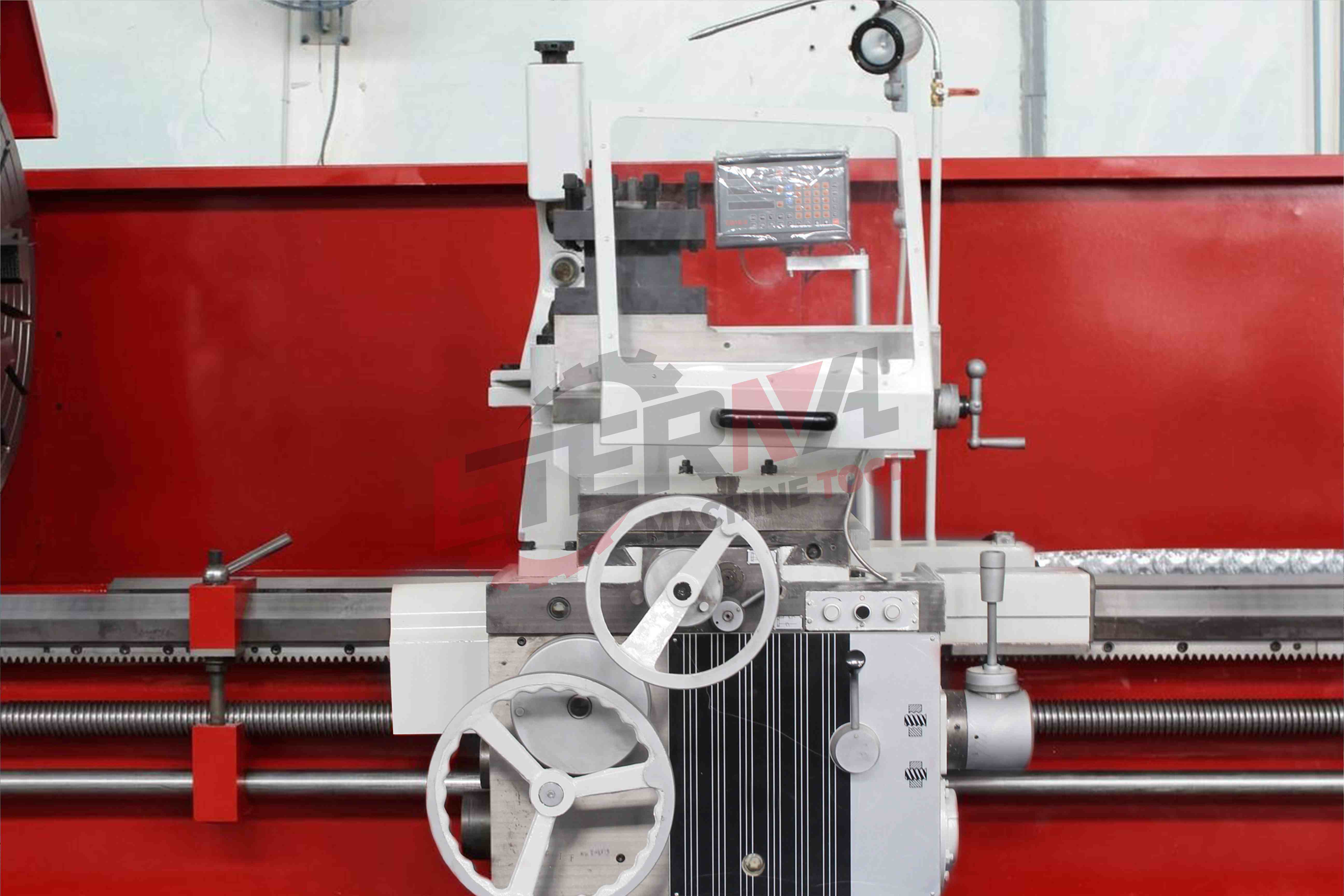

Horizontal lathe is suitable for processing large and medium-sized parts of castings, steels and non-ferrous metals. It can turn outer circle, inner hole, end face, grooving, drilling, boring and nesting, and can turn metric various internal and external threads, such as inch, modulus and diameter.
Mature structure: The machine tool is solid work, strong in rigidity, high in power, wide in speed range, and capable of high-speed and powerful cutting; When finished, the roundness error is not more than 0.01mm, the cylinder degree error is not more than 0.03mm in the measuring length of 300mm.
Highly rigid bed: The bed is made of cast structural bed. The internal ribs have a reasonable layout and high rigidity, and the guide rail adopts an intermediate frequency quenching grinding process. In the sliding guide surface, the anti-crawling guide plate technology is adopted, and the dynamic characteristics such as the friction damping coefficient are in an optimal state, thereby avoiding the occurrence of low-speed crawling.

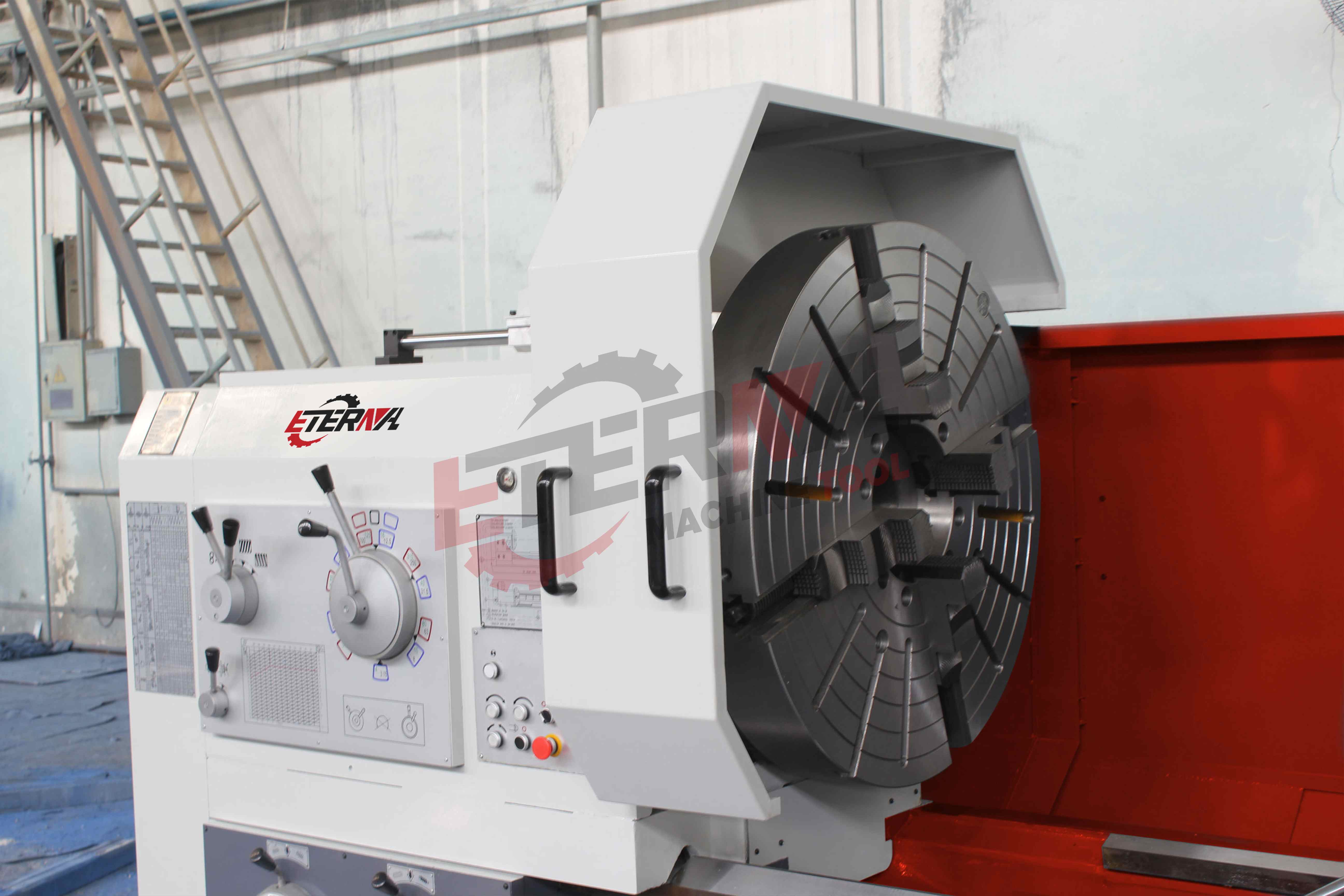

High rigidity and high precision spindle: The machine tool spindle bearing adopts famous brand products. The spindle box adopts a symmetrical structure to make the thermal deformation uniform and avoid the offset of the center of the spindle. To reduce thermal deformation, the headstock is lubricated with an oil bath cycle. The front end of the main shaft adopts a three-support structure of a two-way angular contact ball bearing. Improve accuracy and increase rigidity. The gears in the headstock are quenched and grounded to ensure accurate transmission and low noise. The well-assembled spindle has the characteristics of low temperature rise, small thermal deformation and high precision, which makes the spindle maintain relatively stable accuracy during long-term operation.
High rigidity overall bed with 755mm bed span, which ensures the machine has strong stability and high precision, and bed loading capacity to 6000kg.
Spindle standard through the hole for the Ф130mm large hole, and adopt A2-15 spindle nose connection type, runout accuracy of spindle is better.
The machine tool can be used to cut the short conical surface of the motor by the top tool post, and the long conical surface can be turned by the top tool post and the longitudinal feed.
High power, high rigidity and wide speed range for high speed and powerful cutting, speed range of 3.15-315rpm with 33 speeds.
According to machining need, customers can choose electric moving tailstock, reduce operator labor intensity and improve work efficiency.

Applications

Horizontal lathe is suitable for processing large and medium-sized parts of castings, steels and non-ferrous metals. It can turn outer circle, inner hole, end face, grooving, drilling, boring and nesting, and can turn metric various internal and external threads, such as inch, modulus and diameter.

Specifications

Standard Accessories

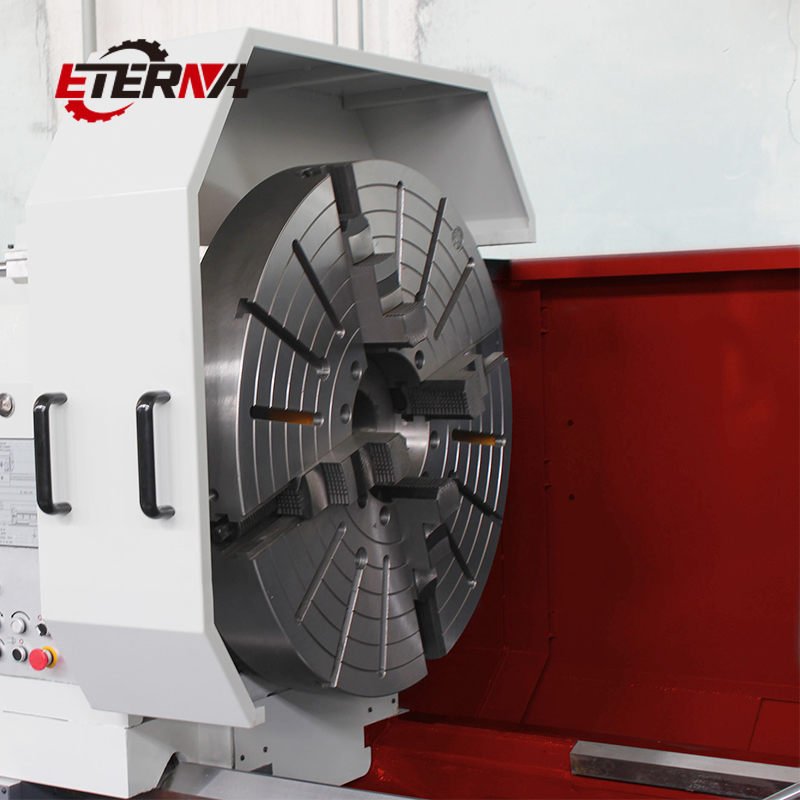

※ 4-jaw independent chuck

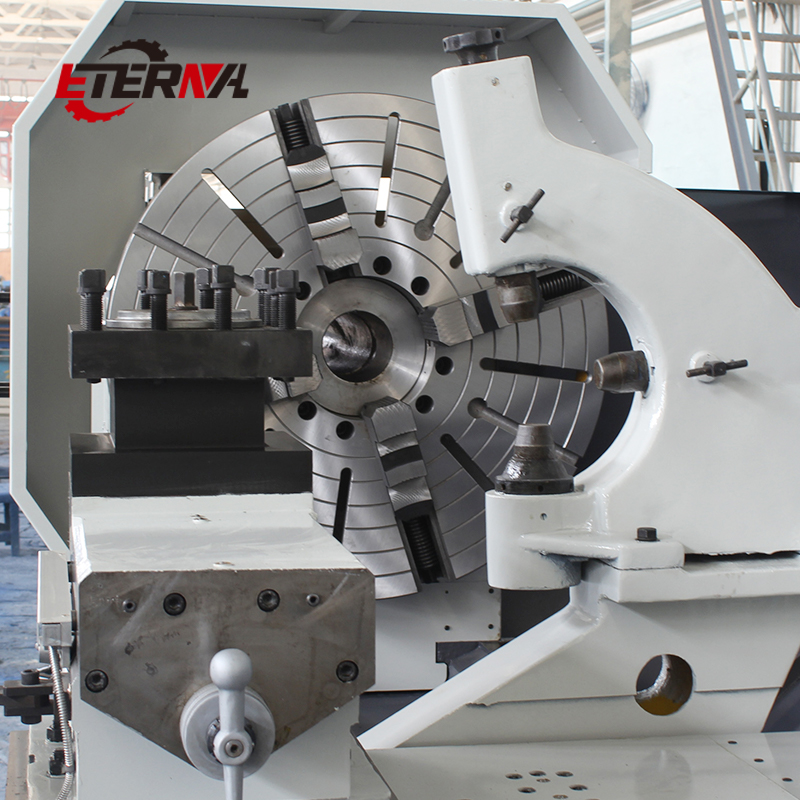

※ Steady rest (over 3M length)
※ Follow rest (over 3M length)

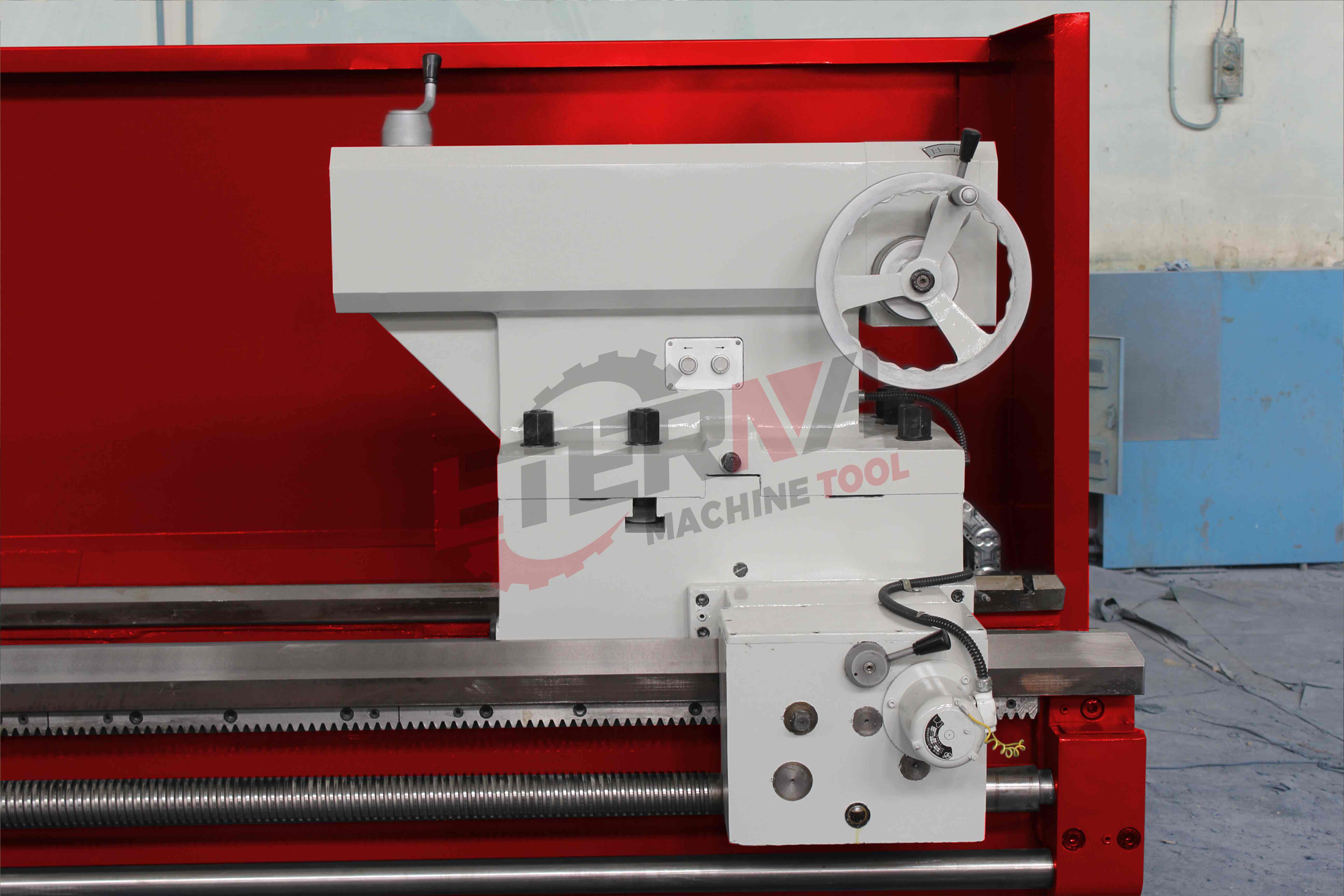

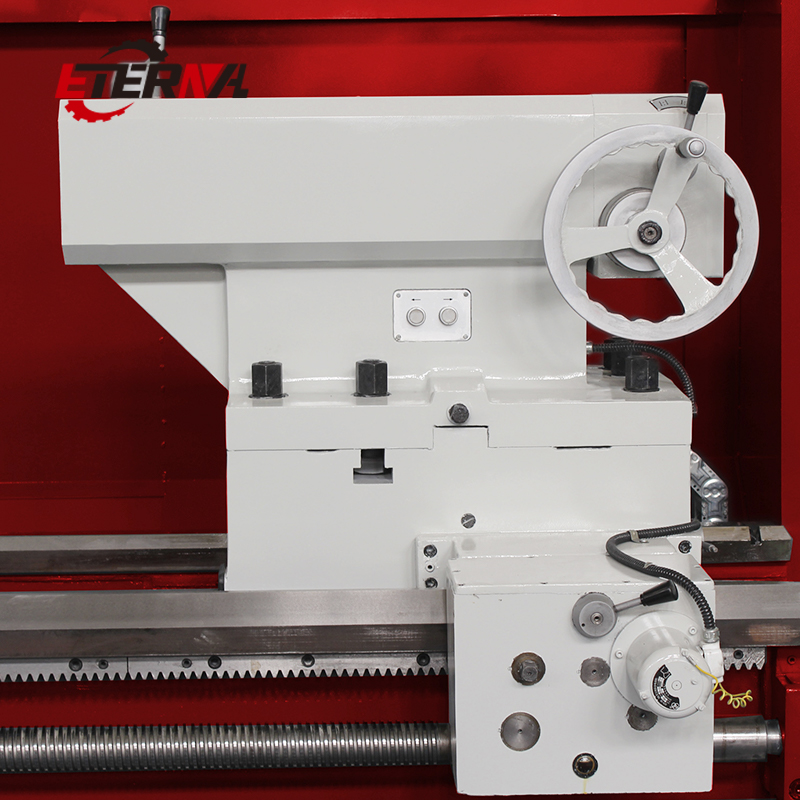

※ Manual moving tailstock
※ Dead center
※ 4-station tool post
※ Cooling system
※ Work lamp
※ Tools & tool-box
※ Leveling wedge and bolts
※ Operation manual (English)

Optional Accessories

※ Living center
※ 2 or 3-axis digital indicator
※ Chuck guard
※ Tool-post guard
※ Rear splash guard
※Quick changing tool post
※ Electric moving tailstock
※ Grinding attachment

Competitive Advantage

Equipped with 4‑jaw independent chuck, sturdy steady/follow rests, and manual tailstock, ensuring stable support for extra‑long workpieces over 3 meters.
4‑station tool post allows quick tool indexing for efficient turning operations.
Standard cooling system and complete tool kit facilitate immediate production.
Optional digital readout, quick‑change tool post, electric tailstock, and grinding attachment provide flexible upgrades for higher precision and automation.
Various protective guards (chuck, tool‑post, rear splash) enhance operator safety and workshop cleanliness.
