Quick Detail

Main standard: Resin sand casting; X, Y, Z rails adopts imported linear guideway; X, Y, Z rails adopt stainless steel telescopic cover; Standard with belt driven spindle; Taiwan production pneumatic cylinder; Taiwan ATC,disc type and chain type are available as option; Imported bearings for leadsrews; Imported coupling; Headstock balancing system have nitrogen balance system or hydraulic balance system as option; NC rotary worktable (B axis); Work lamp; Pilot lamp; USB and LAN interface; Manual pulse generator (MPG); Centralized automatic lubrication system; Cooling system; Heat exchanger for electrical cabinet; Leveling blocks & bolts; Toolbox and tools; CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
Optional: ZF or BF reducer; Circular Coolant Nozzle; Coolant through spindle (CTS); Spindle oil cooler; Air conditioner (A/C) for electrical cabinet; Auto. Tool length measurement system; Auto. Workpiece measurement systems; Optional with sprial type chip conveyor and chain type chip conveyor.

Description

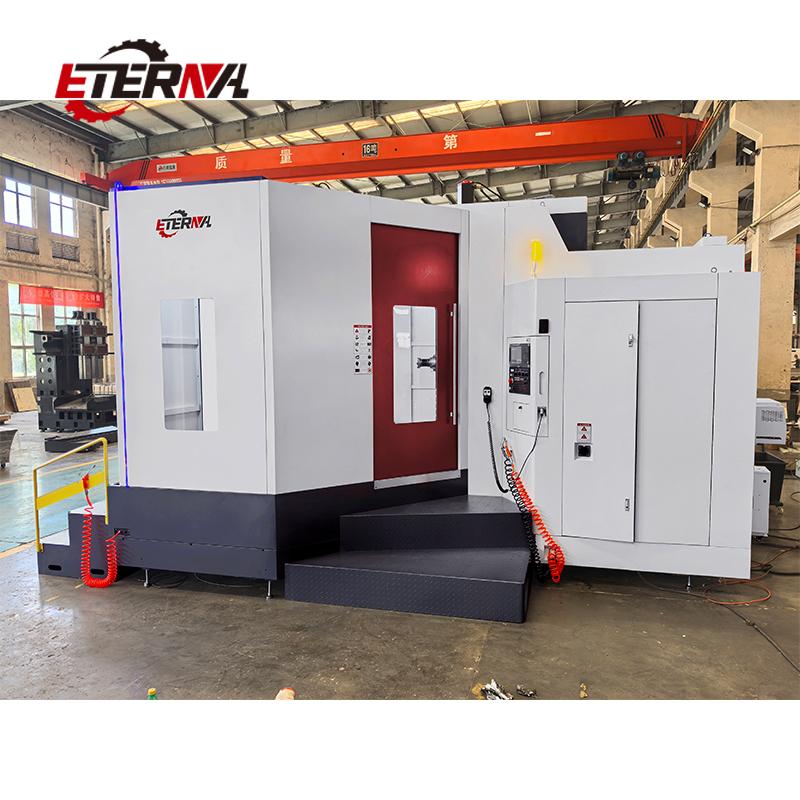

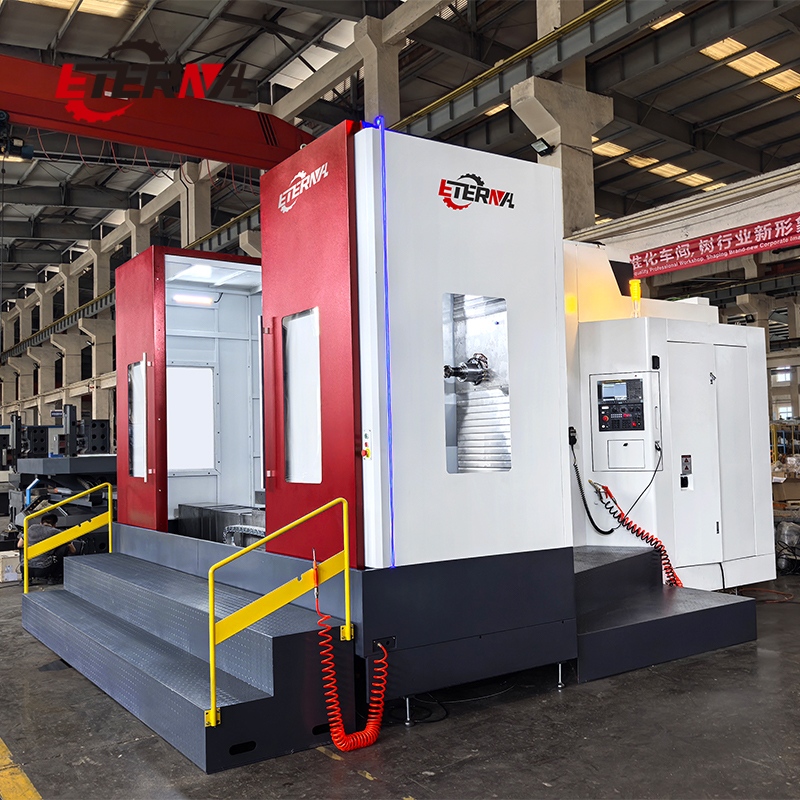

The machine is a high-precision horizontal machining center engineered for heavy-duty and complex part processing. Its bed and main structural components are produced via resin sand casting, ensuring excellent rigidity, vibration damping, and long-term dimensional stability. All linear guideways on the X, Y, and Z axes are imported high-grade rails, and are fully protected by stainless steel telescopic covers to guarantee smooth motion and extended service life in harsh production environments.
The spindle is standardly driven by a belt-type system, with optional ZF or BF reducers for enhanced torque output. Spindle cooling and through-spindle coolant (CTS) are available as options to meet diverse material cutting requirements. The machine is equipped with a Taiwan-made pneumatic cylinder and a reliable ATC system—disc or chain type—providing fast and stable tool changes. All leadscrews are fitted with imported precision bearings and couplings, ensuring high positioning and repeatability accuracy.
The B-axis NC rotary worktable enables simultaneous four-axis machining, significantly improving complex contouring capability. The headstock balancing system offers either nitrogen or hydraulic balance options, ensuring stable vertical movement and prolonged component life. Standard features include a work lamp, pilot lamp, USB/LAN interfaces, manual pulse generator, centralized automatic lubrication, coolant system, heat exchanger for the electrical cabinet, leveling blocks, and a complete tool kit.
The CNC controller can be selected from domestic brands like KND, GSK, and HNC, or international systems such as SIEMENS, FANUC, MITSUBISHI, and FAGOR, providing flexible solutions for different user preferences and application requirements.

Applications

Aerospace structural components, Automotive engine blocks and transmission cases, Heavy machinery and construction equipment parts, Mold and die manufacturing, Precision hydraulic and pneumatic components, General mechanical parts requiring multi-face and high-accuracy machining

Specifications

Standard Accessories

※ Resin sand casting
※ X, Y, Z rails adopts imported linear guideway
※ X, Y, Z rails adopt stainless steel telescopic cover

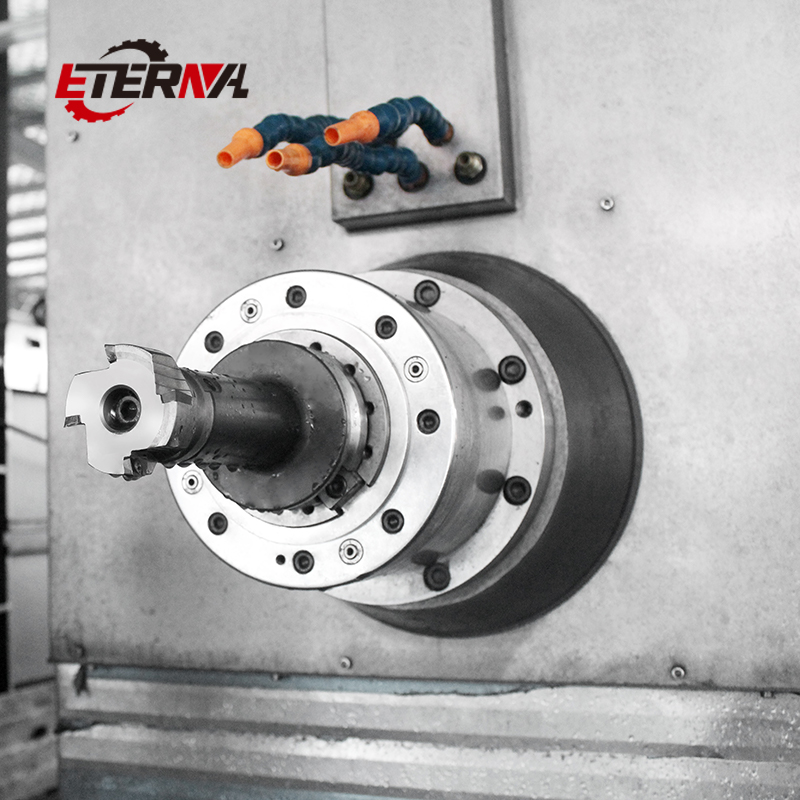

※ Standard with belt driven spindle
※ Taiwan production pneumatic cylinder
※ Taiwan ATC,disc type and chain type are available as option
※ Imported bearings for leadsrews
※ Imported coupling
※ Headstock balancing system have nitrogen balance system or hydraulic balance system as option

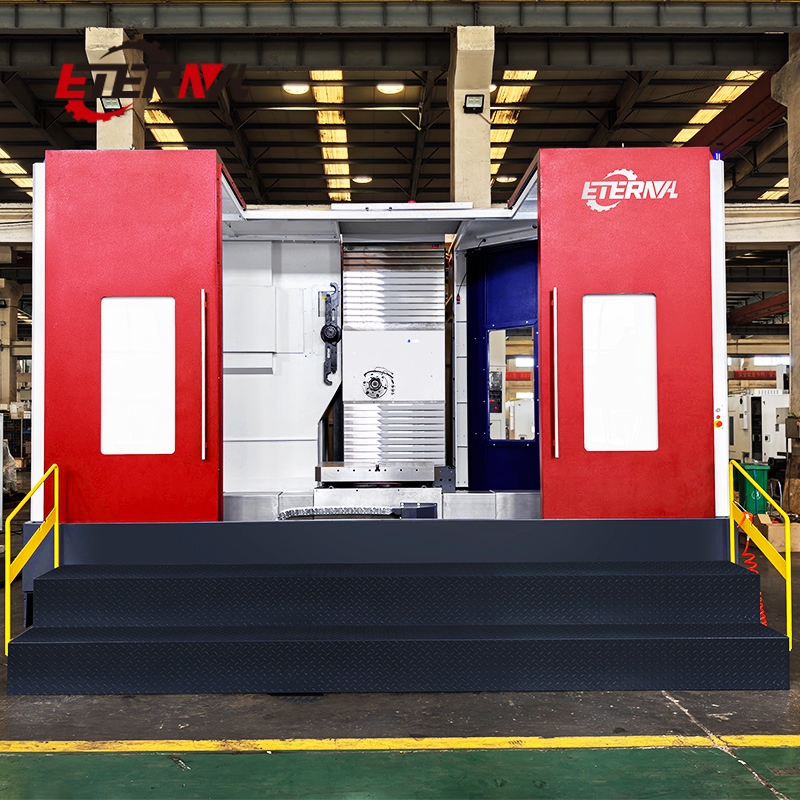

※ NC rotary worktable (B axis)
※ Work lamp
※ Pilot lamp
※ USB and LAN interface

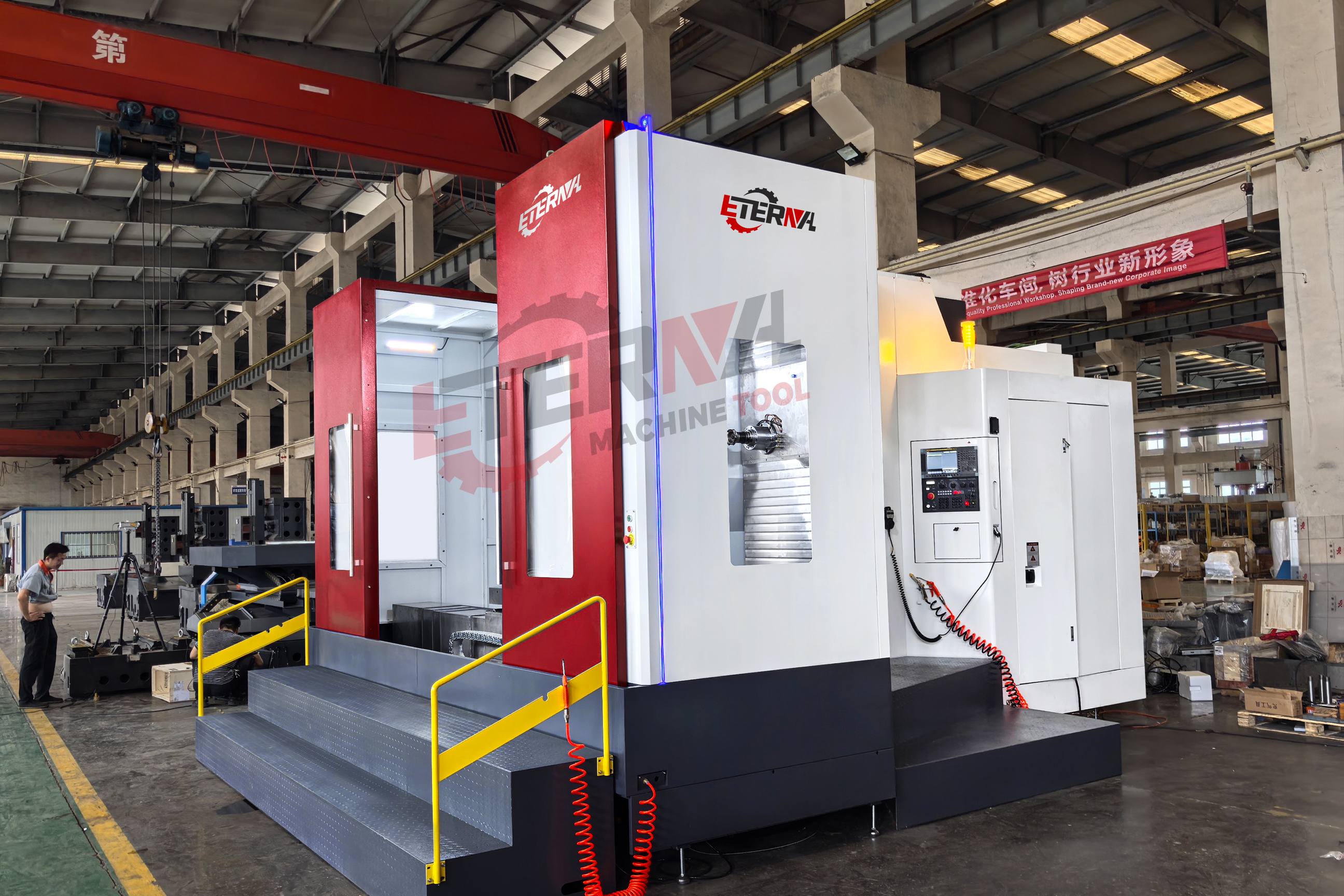

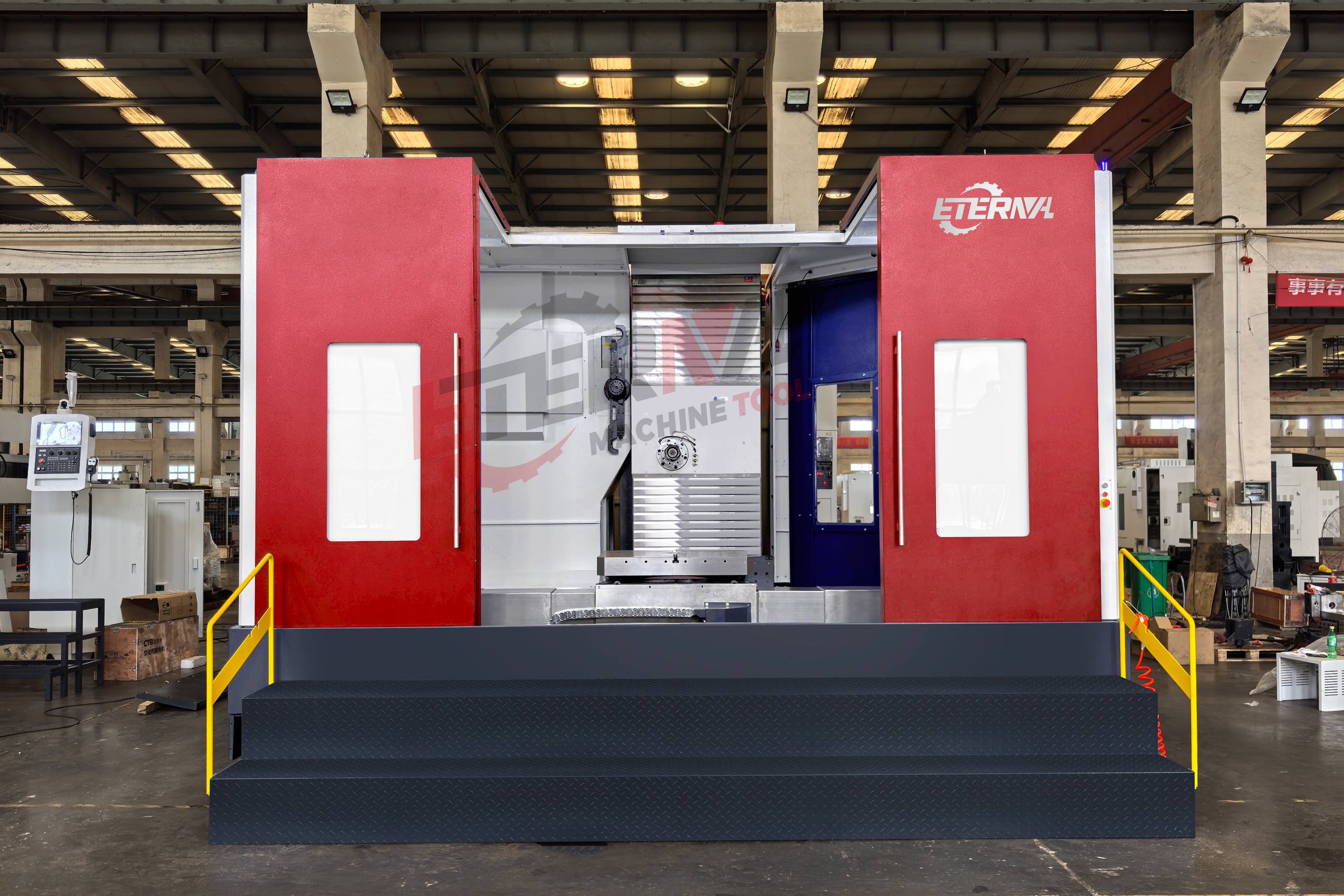

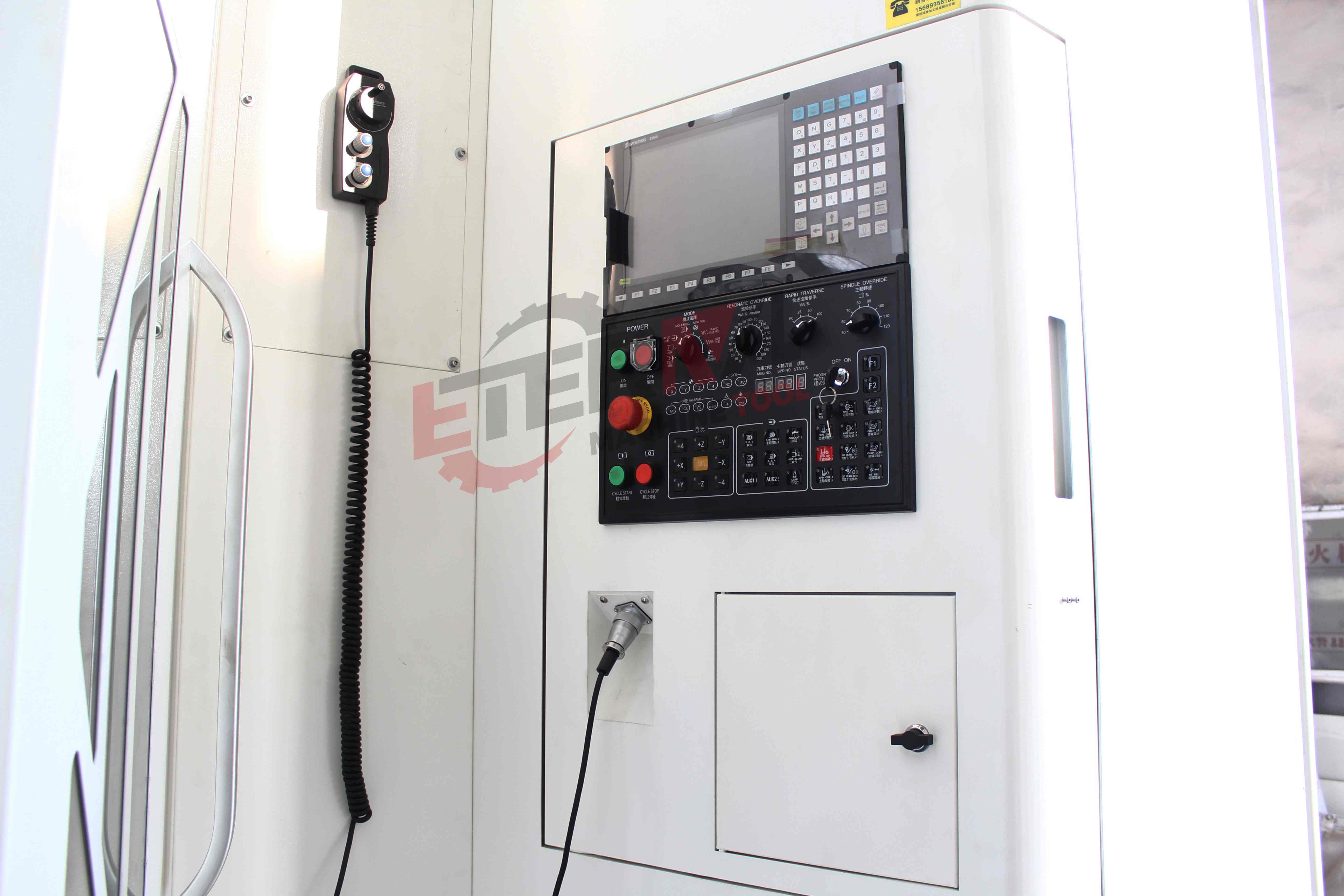

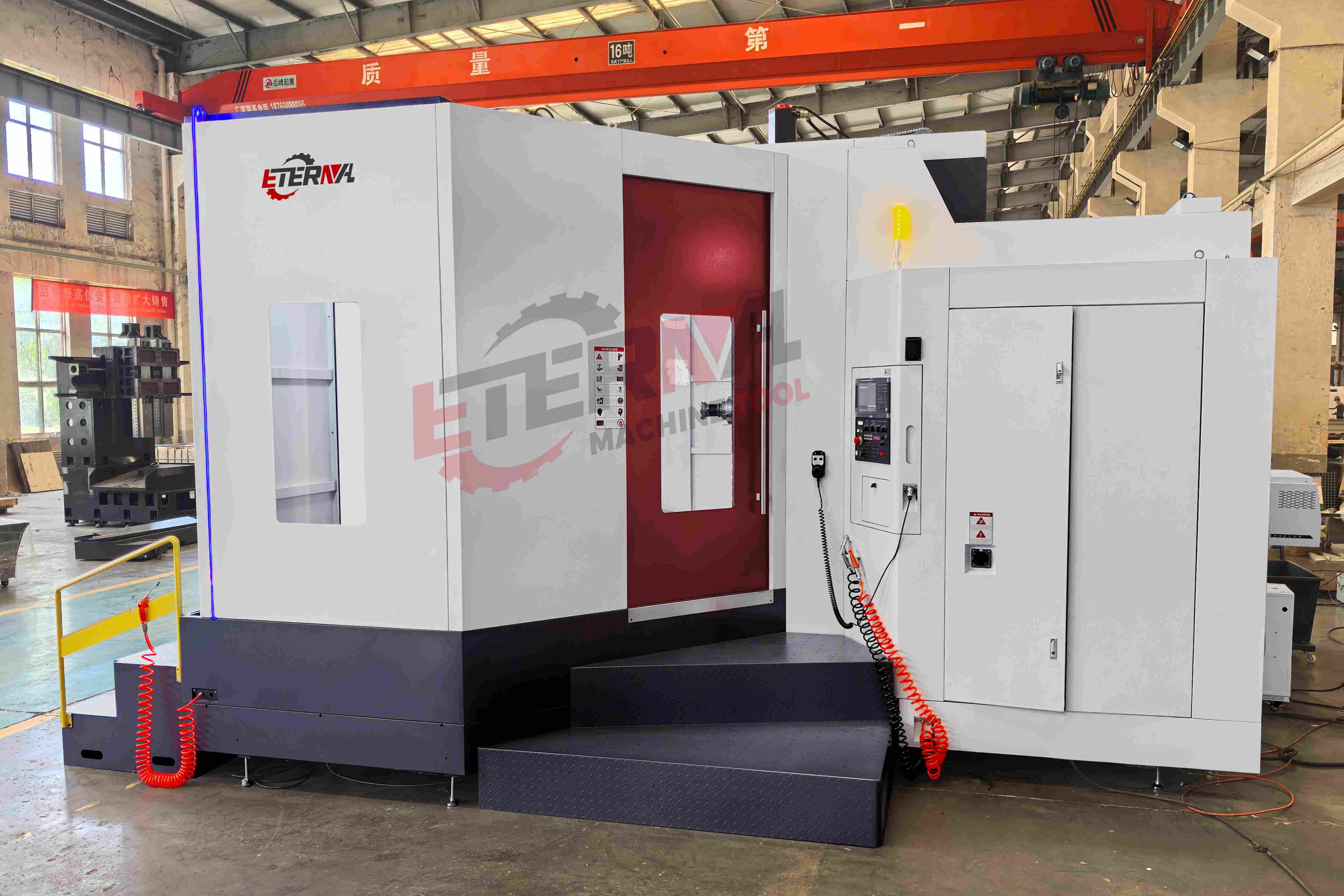

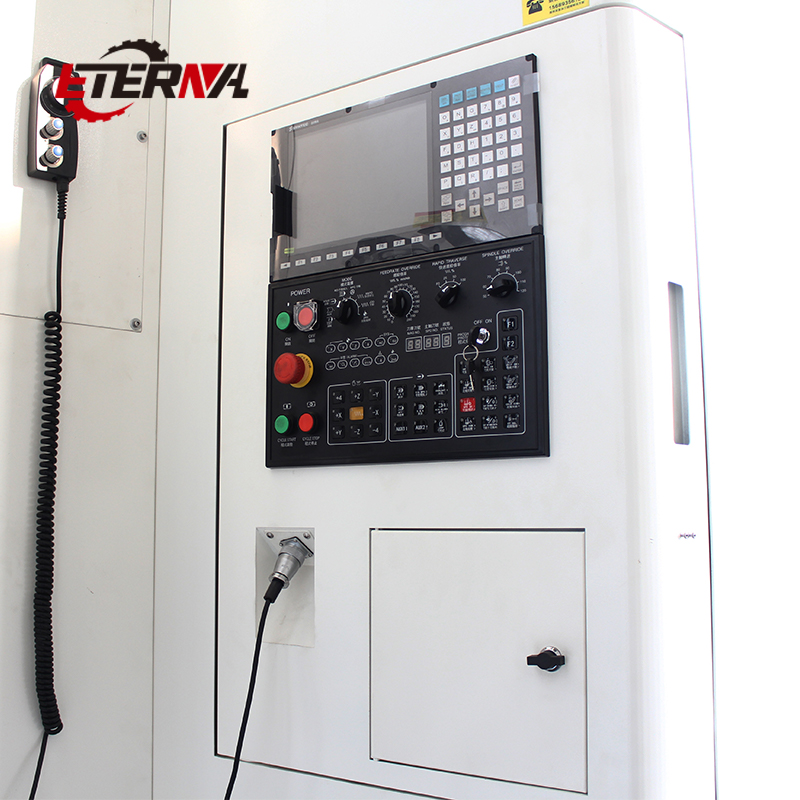

※ Manual pulse generator (MPG)
※ Centralized automatic lubrication system
※ Cooling system
※ Heat exchanger for electrical cabinet
※ Leveling blocks & bolts
※ Toolbox and tools
※ CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.

Optional Accessories

※ ZF or BF reducer
※ Circular Coolant Nozzle
※ Coolant through spindle (CTS)
※ Spindle oil cooler
※ Air conditioner (A/C) for electrical cabinet
※ Auto. Tool length measurement system
※ Auto. Workpiece measurement systems
※ Optional with sprial type chip conveyor and chain type chip conveyor

Competitive Advantage

Superior structural rigidity from resin sand castings ensures long-term machining accuracy and stability.
Fully imported guideways, bearings, and couplings guarantee high reliability and low maintenance.
Flexible spindle configurations and optional reducers enable both high-speed and heavy-cutting operations.
A wide range of controller brands and optional accessories (chip conveyors, tool/workpiece measurement, oil cooler, A/C) allows customized solutions.
The integrated B-axis rotary table expands machining capability for complex multi-face parts.
Robust protection systems and automatic lubrication reduce downtime and prolong machine life.
