Quick Detail

Main standard:Resin sand casting; X, Y rails adopts imported linear guideway, Z rail is quenching - plastic sliding guide rail pair; Imported rolling screw, rack, gear box; X rail adopt stainless steel telescopic cover, Y rail adopts plastic accordion cover; Standard with belt driven head, optional for auto. 5 faces head, gear head, ZF reducer head, direct driven head, CTS head; Taiwan production pneumatic cylinder; Taiwan ATC, carousel type, disc type, chain type are available as option; Imported bearings for leadsrews; Famous brand coupling; Headstock balancing system is Nitrogen balance system as option; Work lamp; Pilot lamp; USB and LAN interface; Manual pulse generator (MPG); Centralized automatic lubrication system; Cooling system; Heat exchanger for electrical cabinet ; Leveling blocks & bolts; Toolbox and tools; Double spiral chip conveyor; CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
Optional: Special milling head: Lengthen milling head, right angle milling head, universal milling head;Circular Coolant Nozzle; Coolant through spindle (CTS);Spindle oil cooler;Air conditioner (A/C) for electrical cabinet;Auto. Tool length measurement system;Auto. Workpiece measurement systems;Chain type chip conveyor.

Description

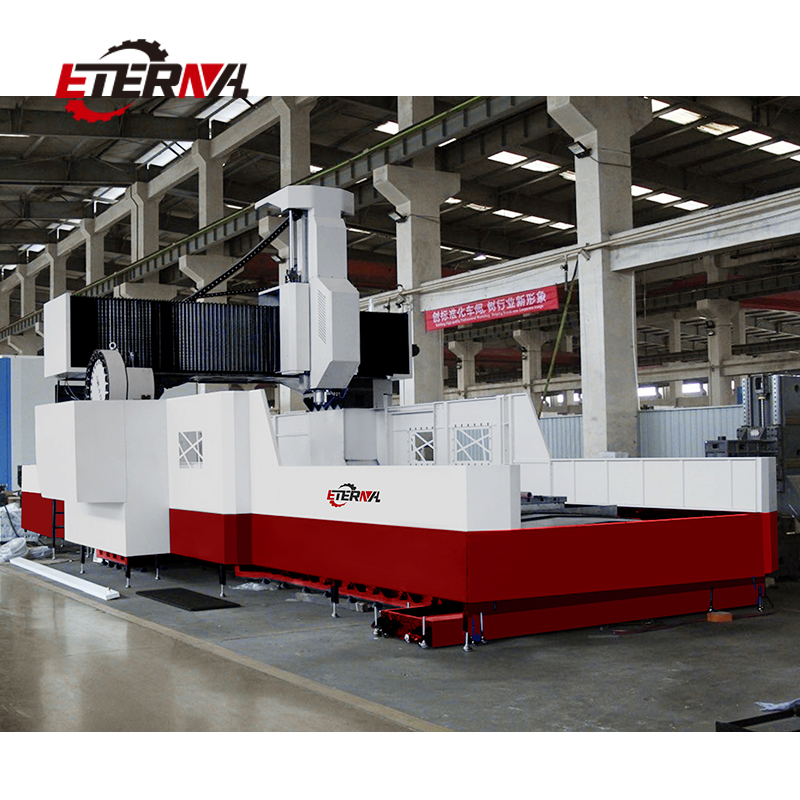

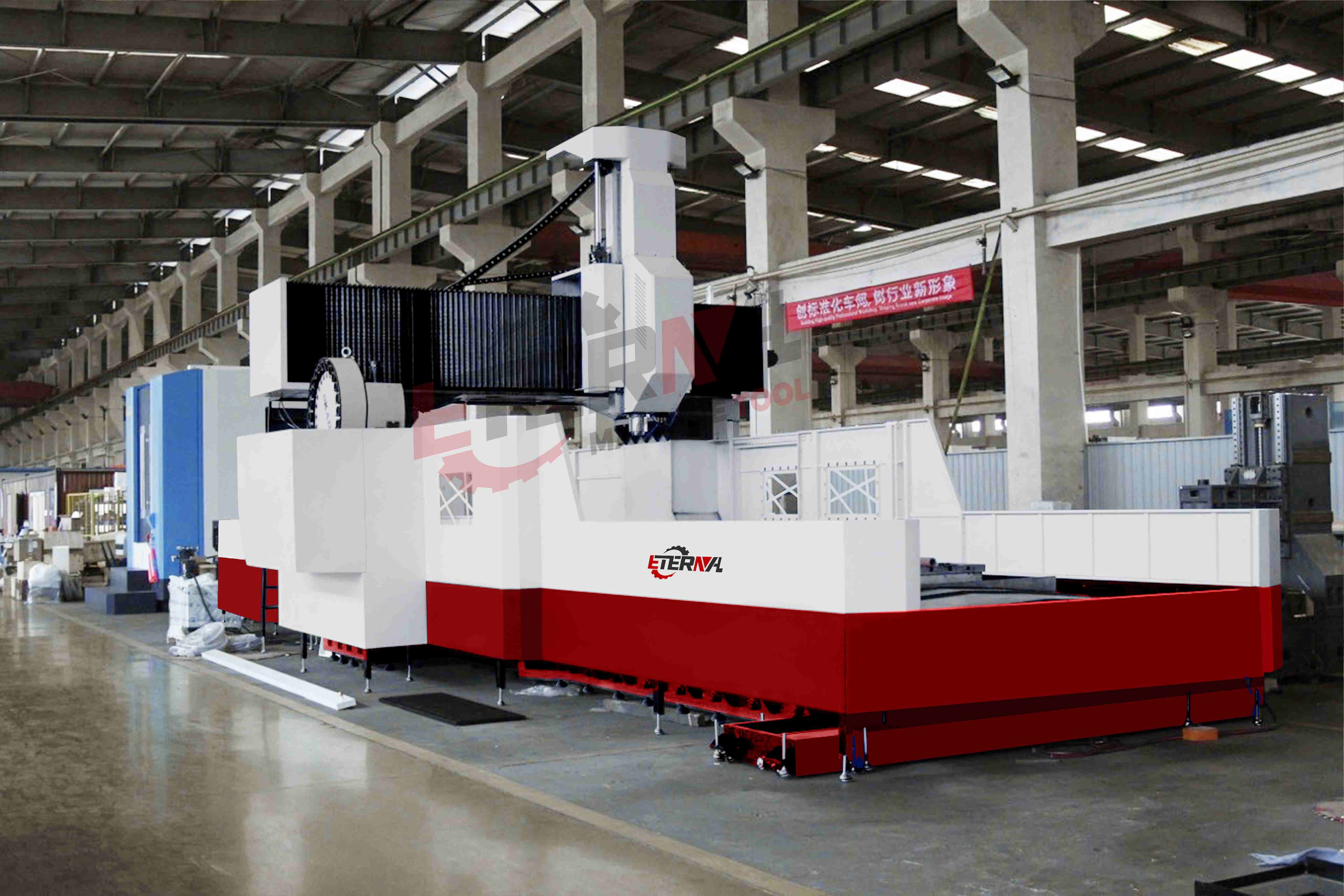

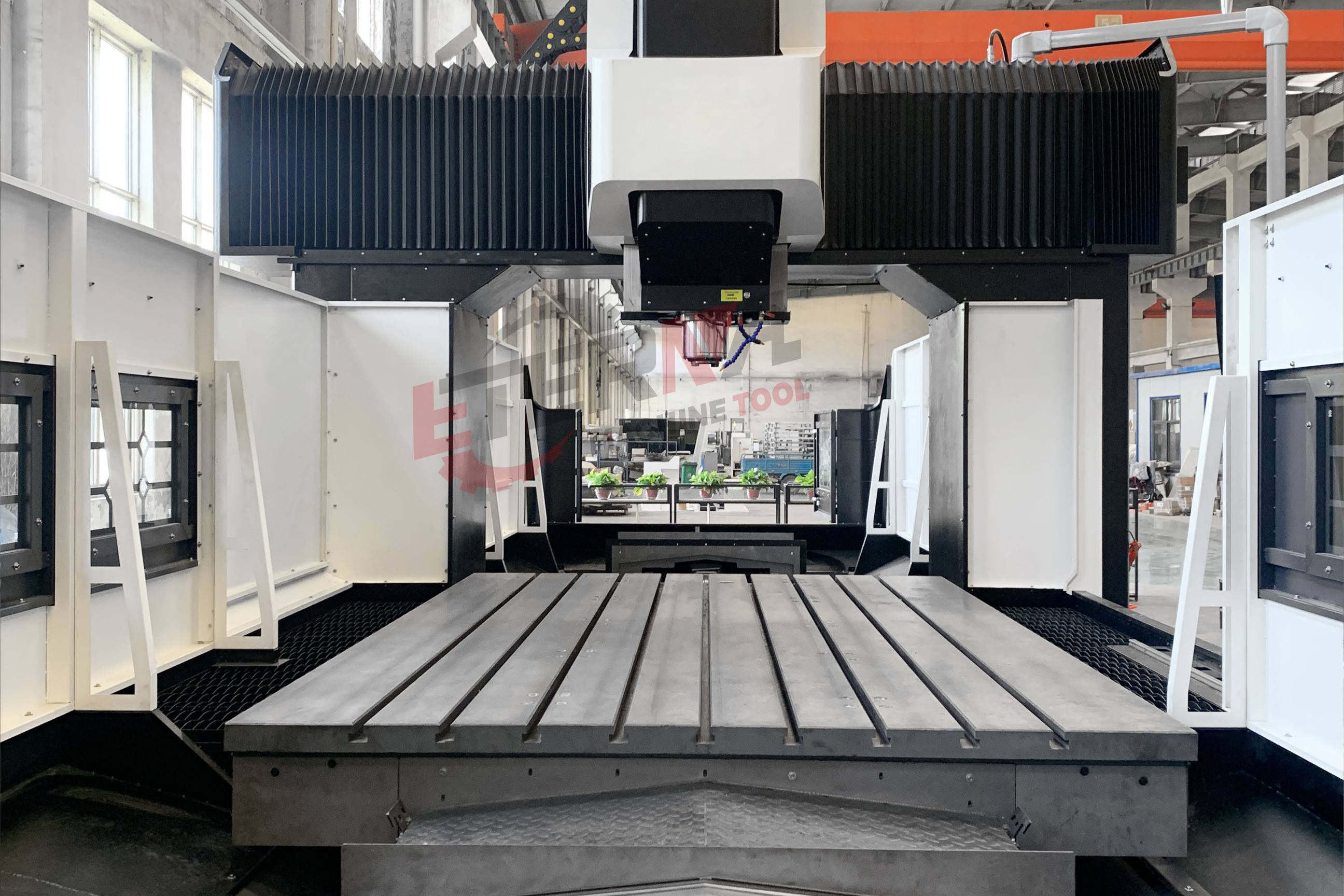

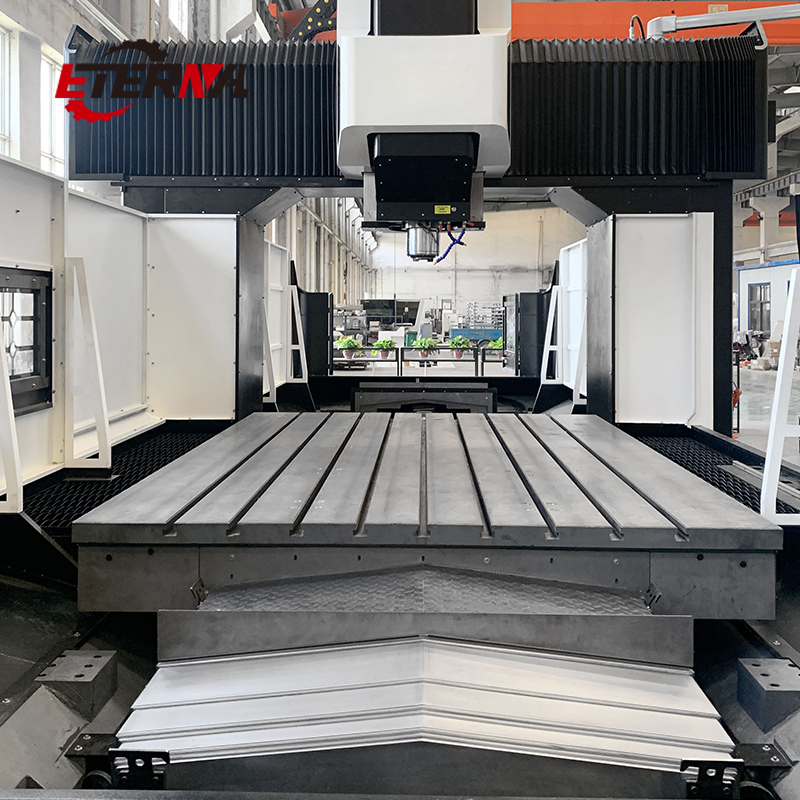

The GMC2700 is a heavy-duty gantry machining center built with resin sand castings for superior rigidity and vibration damping. The X and Y axes employ imported linear guideways for high-speed precision motion, while the Z axis uses a hardened-and-ground sliding guide pair with plastic coating for excellent cutting stability. All three axes are driven by imported precision ballscrews, racks, and gearboxes, with stainless steel telescopic covers on X and plastic accordion covers on Y for effective chip and coolant protection. The standard spindle is belt-driven, with multiple optional head configurations including automatic five-face head, gear head, ZF reducer head, direct-drive head, and CTS (coolant-through-spindle) head to suit diverse machining needs. The headstock balancing is provided by a nitrogen balance system (optional), ensuring smooth vertical movement. The machine is equipped with a Taiwan-made pneumatic cylinder, and offers carousel-type, disc-type, or chain-type ATC options. Key components include imported bearings for leadscrews and famous-brand couplings. Standard features include work lamp, pilot lamp, USB/LAN interfaces, MPG, centralized automatic lubrication, cooling system, heat exchanger for electrical cabinet, leveling blocks, toolbox, and a double spiral chip conveyor. The CNC controller can be selected from KND, GSK, HNC (domestic) or SIEMENS, FANUC, MITSUBISHI, FAGOR (imported), providing flexible control solutions.

Applications

Ideal for large‑scale, precision machining of flat surfaces, holes, and complex contours on workpieces such as machine tool beds, molds, aerospace structural parts, and heavy equipment frames.
Widely used in automotive die & mold, aerospace, energy equipment, and general heavy machinery manufacturing.

Specifications

Standard Accessories

※ Resin sand casting
※ X, Y rails adopts imported linear guideway, Z rail is quenching - plastic sliding guide rail pair
※ Imported rolling screw, rack, gear box
※ X rail adopt stainless steel telescopic cover, Y rail adopts plastic accordion cover
※ Standard with belt driven head, optional for auto. 5 faces head, gear head, ZF reducer head, direct driven head, CTS head
※ Taiwan production pneumatic cylinder

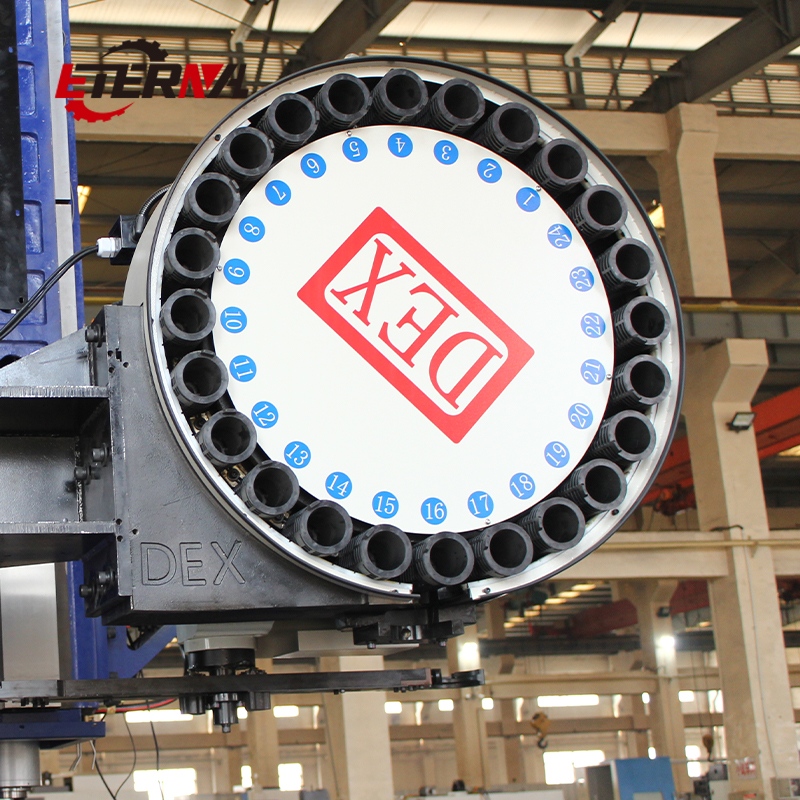

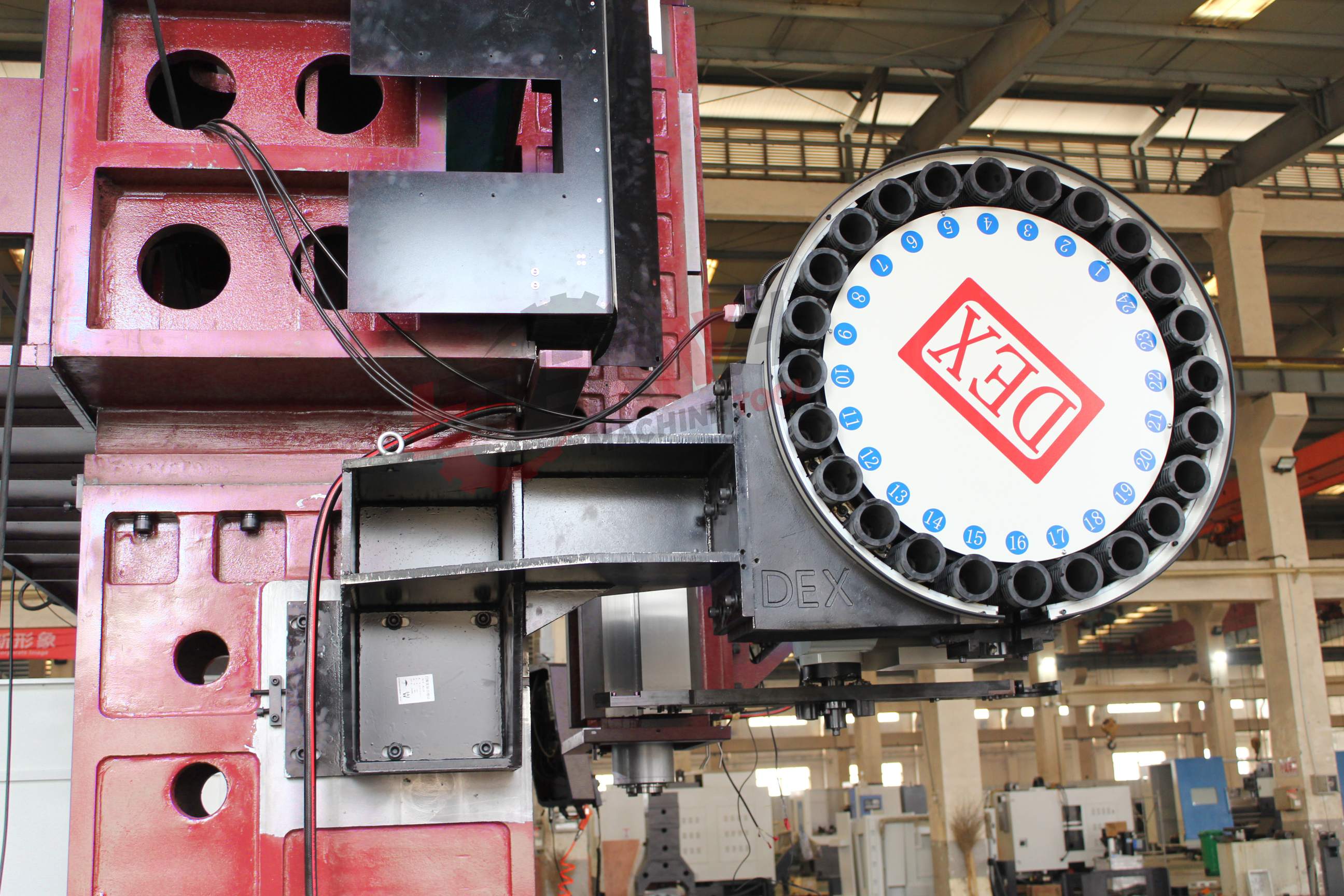

※ Taiwan ATC, carousel type, disc type, chain type are available as option
※ Imported bearings for leadsrews
※ Famous brand coupling
※ Headstock balancing system is Nitrogen balance system as option
※ Work lamp
※ Pilot lamp
※ USB and LAN interface
※ Manual pulse generator (MPG)
※ Centralized automatic lubrication system
※ Cooling system
※ Heat exchanger for electrical cabinet
※ Leveling blocks & bolts
※ Toolbox and tools
※ Double spiral chip conveyor
※ CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.

Optional Accessories

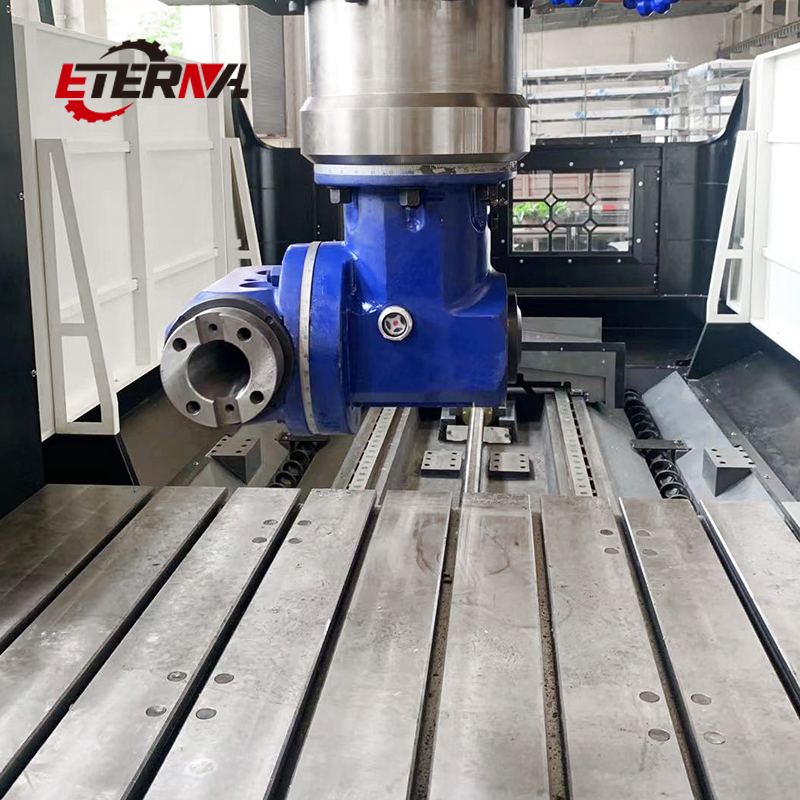

※ Special milling head: Lengthen milling head, right angle milling head, universal milling head
※ Circular Coolant Nozzle;
※ Coolant through spindle (CTS);
※ Spindle oil cooler;
※ Air conditioner (A/C) for electrical cabinet;
※ Auto. Tool length measurement system;
※ Auto. Workpiece measurement systems;
※ Chain type chip conveyor.

Competitive Advantage

Resin sand cast bed ensures high structural rigidity and long‑term geometric accuracy under heavy cutting loads.
Mixed guideway design (linear on X/Y, sliding on Z) balances high‑speed feed with heavy‑duty cutting capability.
Full imported drivetrain components (ballscrews, racks, bearings, couplings) guarantee reliable precision and durability.
Multiple spindle head options (5‑face, gear, ZF, direct, CTS) allow the machine to adapt to various part geometries and materials.
Flexible ATC types and wide CNC controller choices enable customization for different production scales and budgets.
Standard double spiral chip conveyor and comprehensive cover systems ensure efficient chip removal and clean operation.
