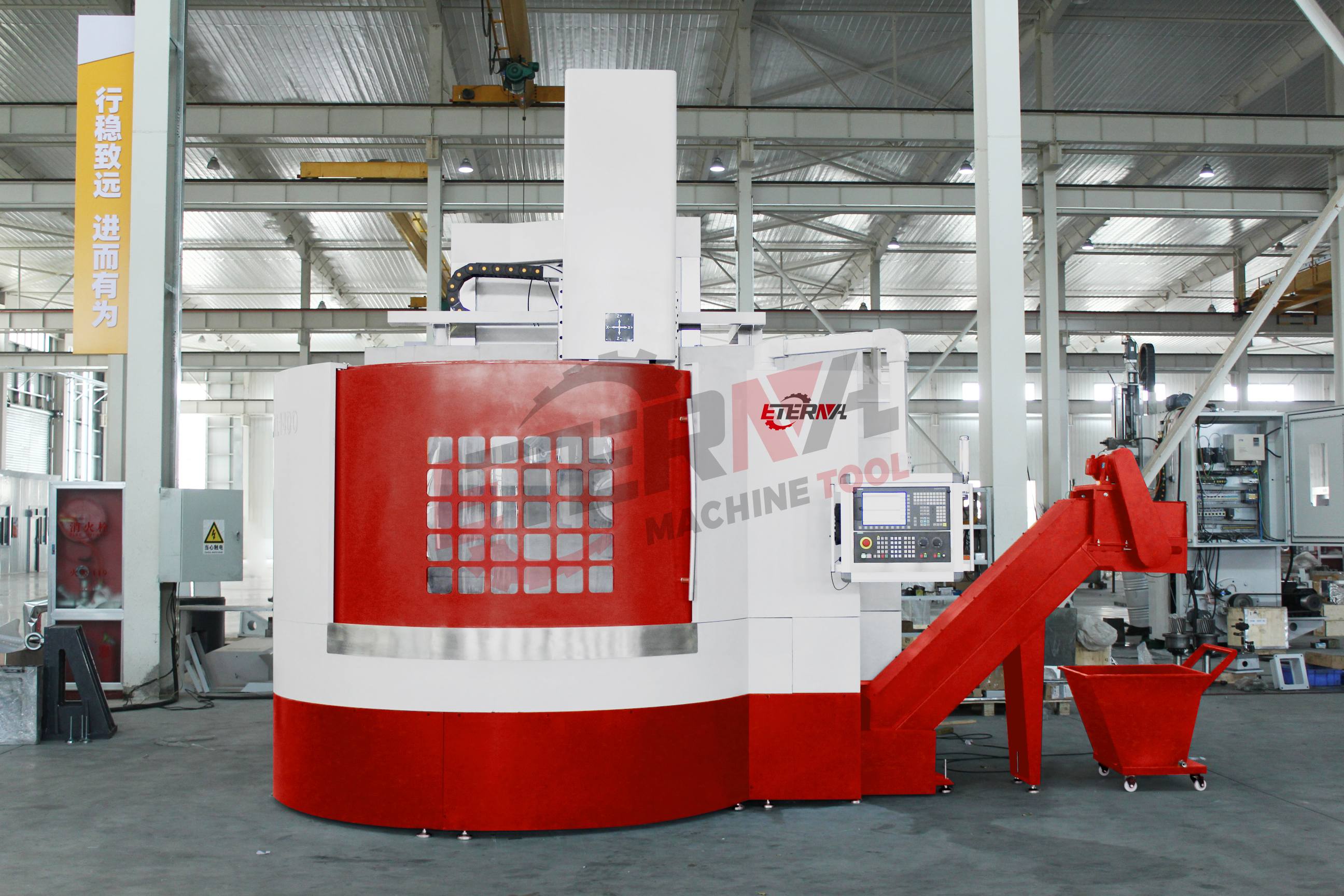

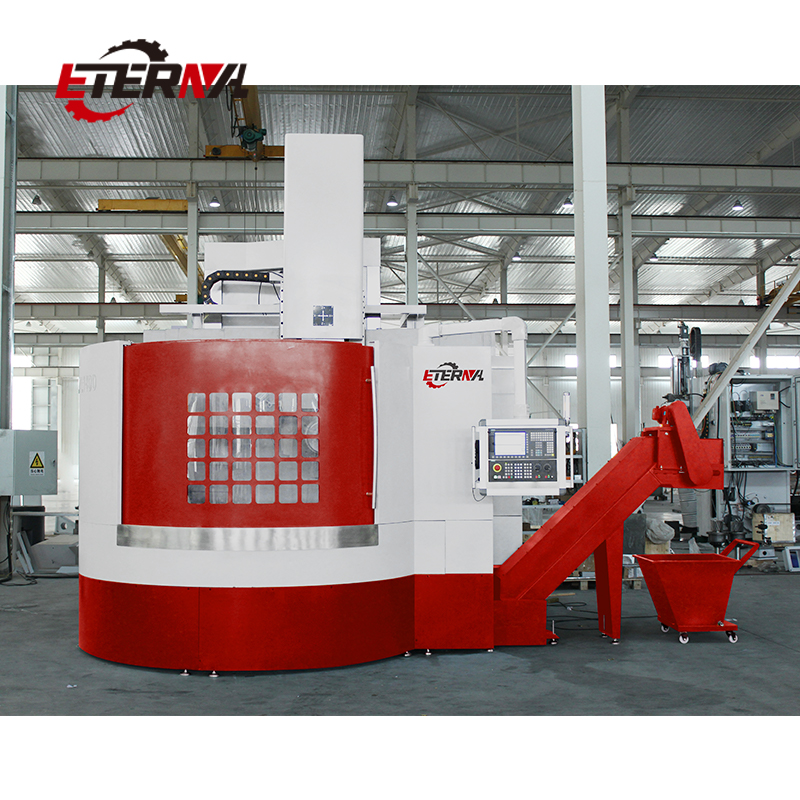

Quick Detail

Main standard: CNC system (SINUMERIK 828D); Cooling system; Work lamp; Three-color signal lights; Basic feet and pads; Beam positioning system (except VTL1000,VTL1200); Manual four-jaw chuck worktable; 12 station tool magazine; Standard tool holder 2 pieces; Protection guard; X-axis telescopic protective cover; Automatic forced lubrication system; Tool setter; Three-jaw self-centering hydraulic chuck; X-axis grating ruler; Z-axis grating ruler; Grinding function; The number of tools in the ATC tool magazine is.
Optional: CNC system(FANUC OI TF); Spindle motor power increases; Equipped with electric tool table; Auxiliary tool holder (left vertical tool holder); Z-axis stroke increased; Electric cabinet air conditioner; Spindle encoder; Chip conveyor, iron chip trolley; Worktable lubrication and cooling; Workpiece online measurement; The whole machine is fully enclosed for protection; Water separator; The diameter of the worktable increases; C-axis indexing

Description

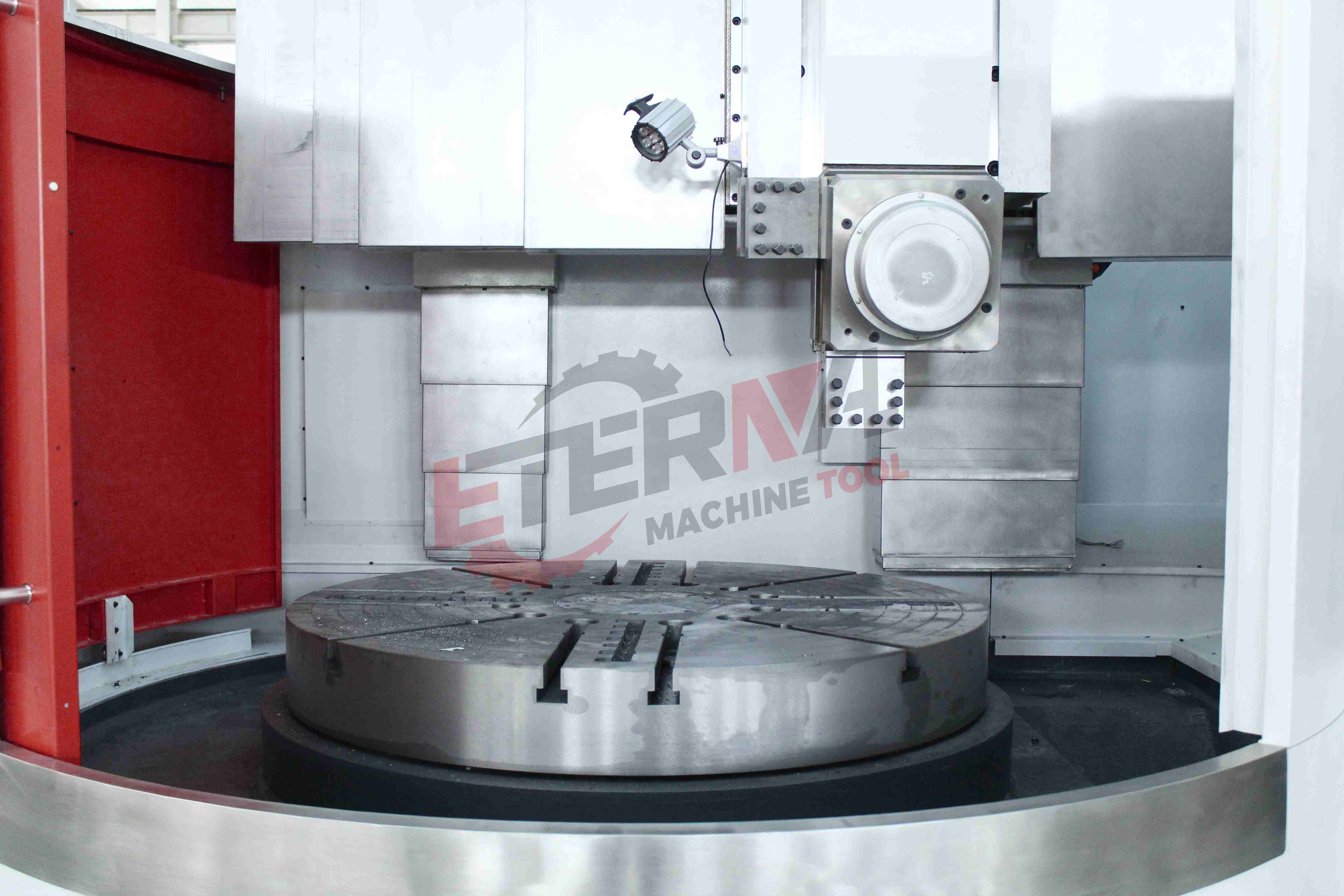

Main Drive Adopts Ac Servo Main Motor, Which Drives The Large Ring gear Through The Gearbox To Achieve The Corresponding Speed Of The worktable. The Main Drive Speed Is Controlled By A Solenoid Valve. All gears In The Gearbox Adopt High-frequency Quenching And Grinding technology 2. Worktable Guide Rail Is In The Form Of A Rolling Guide Rail, The Worktable Assembly Uses Domestic High-precision Double-row Short Cylindrical Roller Bearings For Centering In The Radial Direction, And Domestic High-precision Thrust Roller Bearings As The Rolling Guide rails In The Axial Direction, And Is Pre-installed In The Axial Direction. Load which Not Only Ensures The Rotation Accuracy Of The Worktable Components, But Also Improves The Load-bearing Capacity Of The Machine.
Basic Parts Of This Machine Are All Integrally Cast Structures, Made Of High-strength And Low-stress Cast Iron. After Casting, They Are Simmered, Rough-machined, And Aged, The Column Guide Rails Are Ground, And The Beam Guide Rails And Ram Guide Rails Are Medium-frequency Quenched.grinding Process.

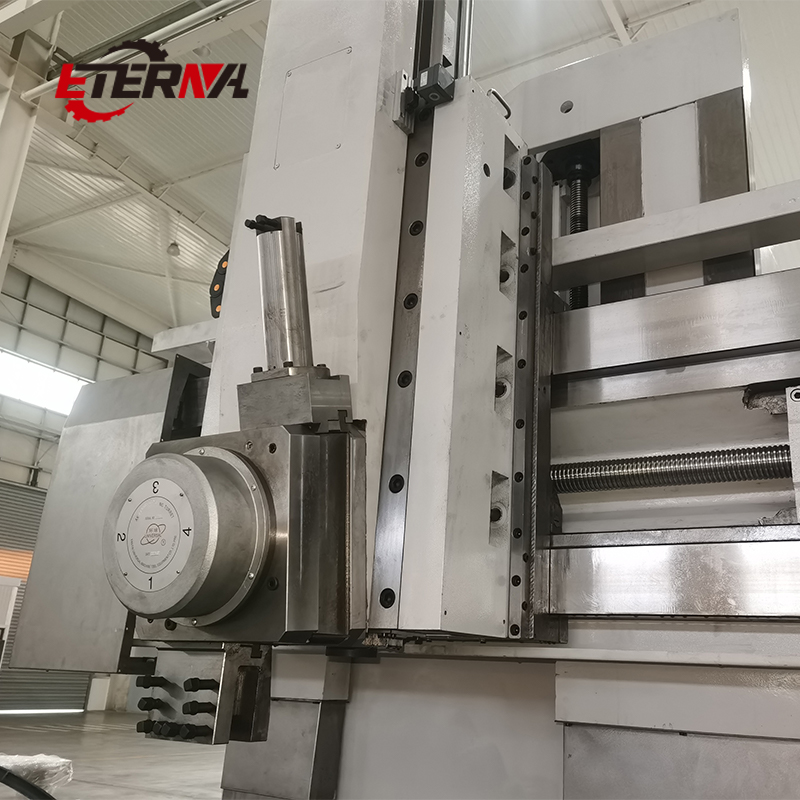

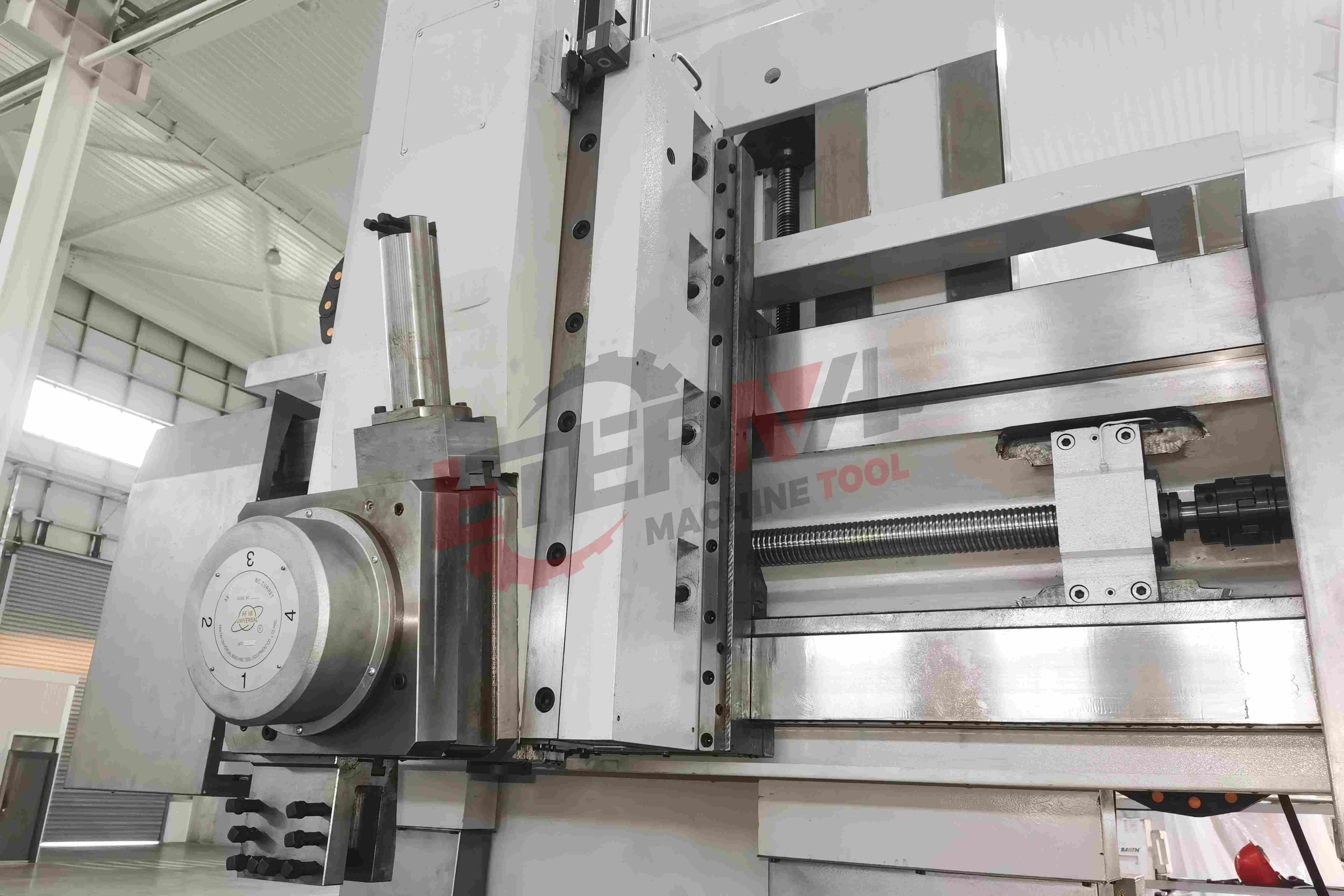

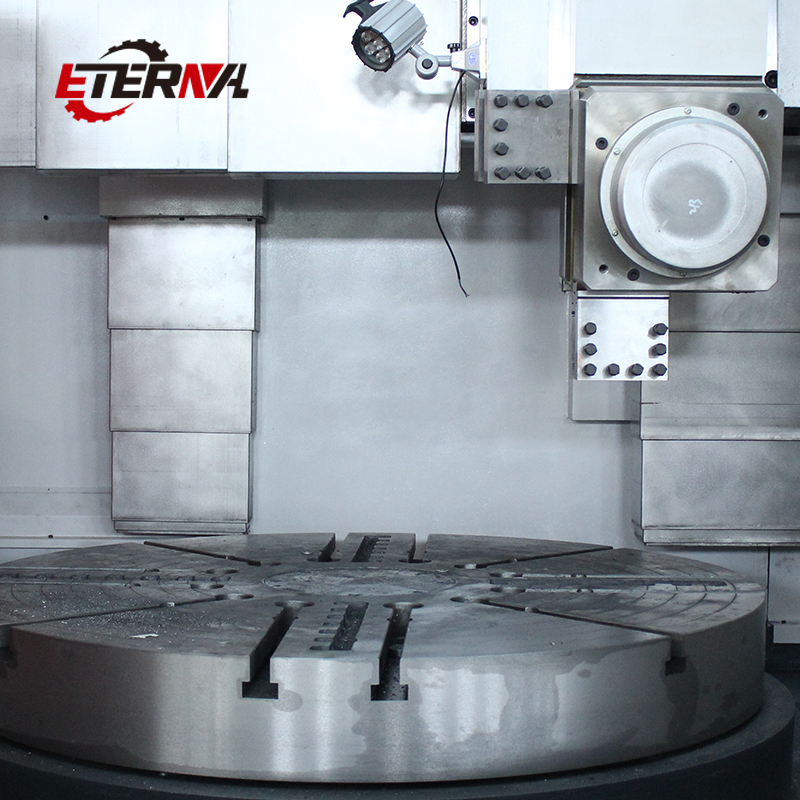

Horizontal And Vertical Feeds Of The Vertical Tool Rest Are All Sliding Guide Rails (hard Rails), And The Matching Guide Rails Are Attached To imported High-strength PolytetrafluoroethylEne Soft Belts:The Transmission Form Of The Vertical Tool Rest Is A Ball Screw Pair Drive, Driven By A servo Motor Directly Connected To The Ball Screw Through The Reducer; The Vertical Tool Holder Is Equipped With A Balancing Cylinder.

Applications

Wind power, aerospace, automotive, marine engineering, heavy machinery, railway rolling stock, and large bearing rings — ideal for machining large disk-type, short-shaft, and complex rotary workpieces.

Specifications

Standard Accessories

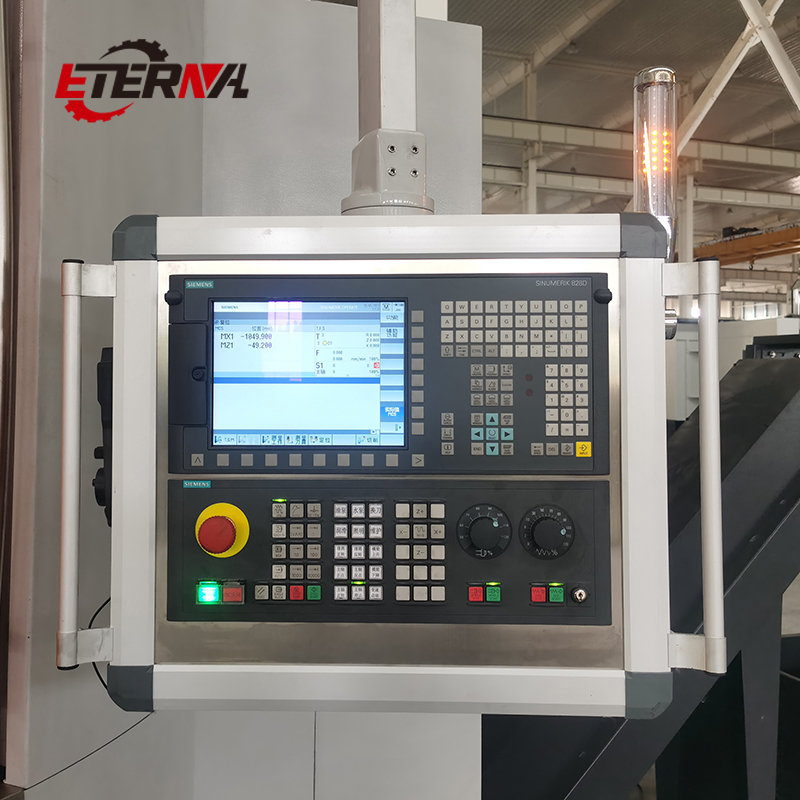

※ CNC system (SINUMERIK 828D)
※ Cooling system
※ Work lamp
※ Three-color signal lights
※ Basic feet and pads
※ Beam positioning system (except VTL1000,VTL1200)
※ Manual four-jaw chuck worktable
※ 12 station tool magazine
※ Standard tool holder 2 pieces
※ Protection guard
※ X-axis telescopic protective cover
※ Automatic forced lubrication system
※ Tool setter
※ Three-jaw self-centering hydraulic chuck
※ X-axis grating ruler
※ Z-axis grating ruler
※ Grinding function
※ The number of tools in the ATC tool magazine is

Optional Accessories

※ CNC system(FANUC OI TF)
※ Spindle motor power increases
※ Equipped with electric tool table
※ Auxiliary tool holder (left vertical tool holder)
※ Z-axis stroke increased
※ Electric cabinet air conditioner
※ Spindle encoder
※ Chip conveyor,iron chip trolley
※ Worktable lubrication and cooling
